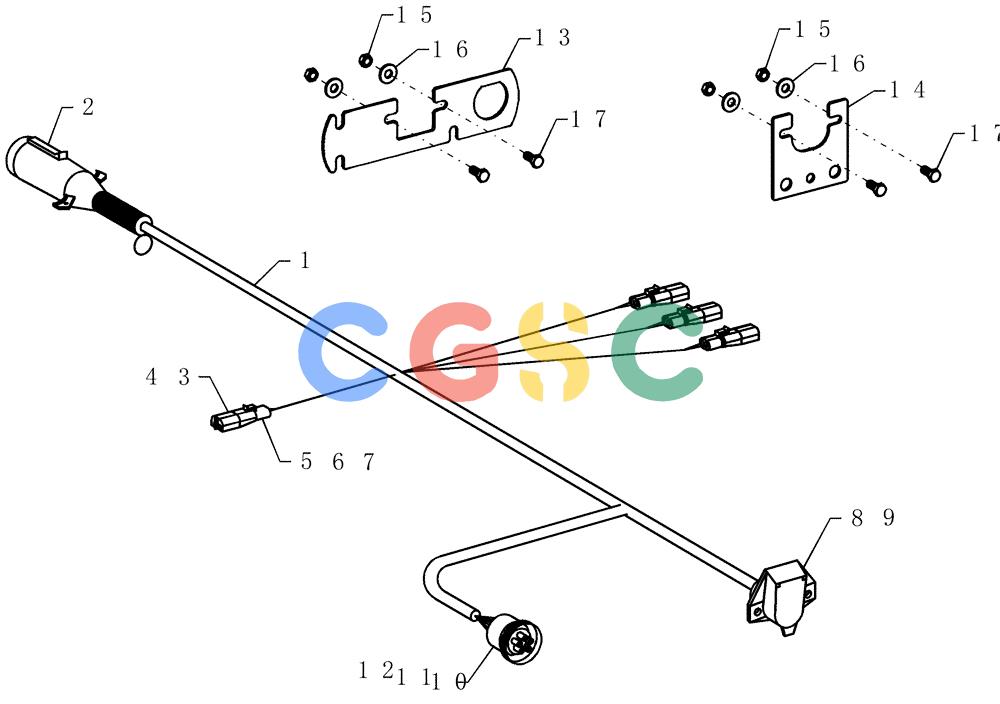

凯斯零件查询(2330) - PRECISION AIR CART (1/08-12/15) (55.100.01) - AIR CART LIGHTING HARNESS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
586 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
419978A1
|
[1] |
HARNESS
|
FLX
lighting, cart, tow behind Superseded by part number: 15475
|
| 1. |
419979A1
|
[1] |
HARNESS
|
FLX
lighting, cart, tow between
|
| 2. |
121646C1
|
[4] |
TERMINAL CONNECTOR,Female
|
IH
metal 7c plug c/w cable protector
|
| 3. |
87692877
|
[8] |
MULTIPOLE CONNECTOR,Male, 2 Cavities
|
BN
plastic 2c receptacle
|
| 4. |
225127C1
|
[4] |
PLUG
|
CAS
cavity, green rubber Superseded by part number: 87686742
|
| 5. |
87692855
|
[8] |
CONTACT HOUSING,Male, 2 Cavities
|
BN
plastic 2c plug
|
| 6. |
225122C1
|
[8] |
TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm
|
IH
socket 14-16awg
|
| 7. |
225125C1
|
[1] |
SEAL
|
IH
Connector Grey 3.49 - 2.81 mm Superseded by part number: 87680710
|
| 8. |
412766A1
|
[1] |
MULTIPOLE CONNECTOR
|
FLX
metal 7c receptacle Superseded by part number: 84162518
|
| 9. |
481849C1
|
[1] |
PROTECTIVE COVER
|
IH
rubber boot
|
| 10. |
225224C1
|
[1] |
ELEC CONNECTOR,Female, 5 Pin
|
IH
plastic 5c plug Superseded by part number: 87706919
|
| 11. |
86500036
|
[1] |
TERMINAL,Female, Nickel, 0.75 - 2mm
|
PA
16-18awg
|
| 12. |
225404C1
|
[4] |
POWER SOCKET,Nickel, 1.0 - 2.0mm
|
CAS
socket 14-16awg
|
| 13. |
GL-803
|
[1] |
HITCH BRACKET
|
FLX
mount, rear
|
| 14. |
GR-250
|
[1] |
BRACKET
|
FLX
mount, receptacle
|
| 15. |
281010
|
[2] |
LOCK NUT,7/8"-14, GC
|
BAS
|
| 16. |
80664
|
[2] |
WASHER,0.38" ID x 0.88" OD x 0.08" Thk
|
NH
|
| 17. |
87872
|
[2] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
NH
|
