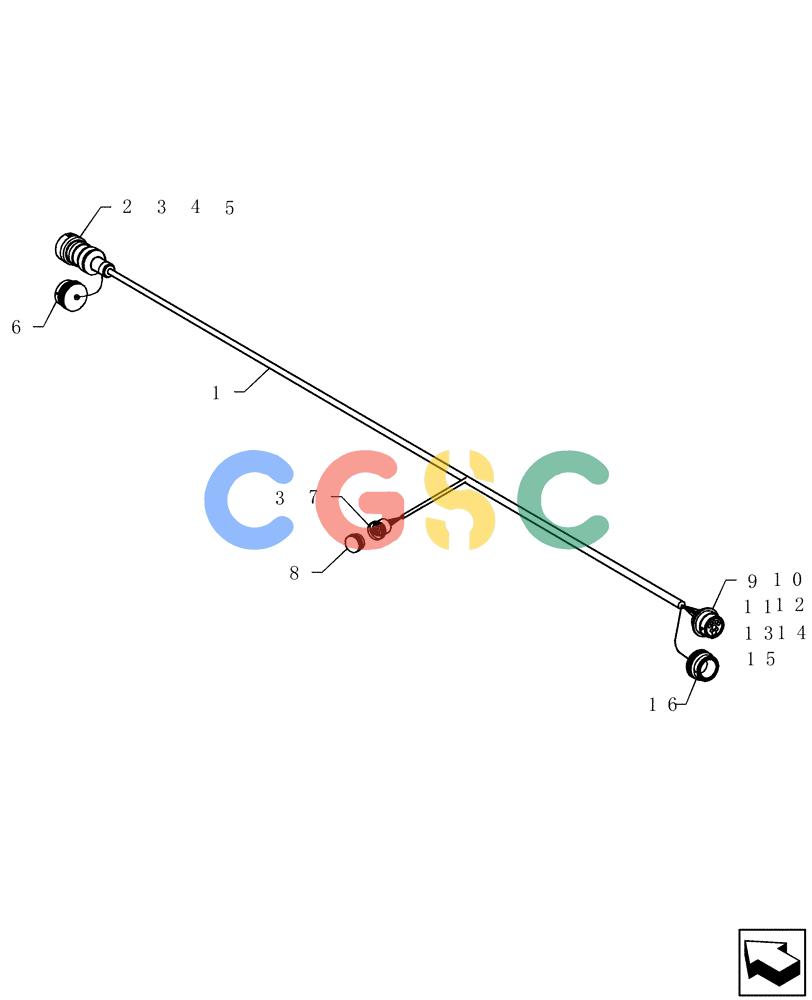

凯斯零件查询(2330) - PRECISION AIR CART (1/08-12/15) (55.100.10) - ELECTRONIC CABLE EXTENSIONS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
330 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87399147
|
[1] |
HARNESS
|
SAS
seedtool FlexControl 3.1 m
|
| 1. |
15210
|
[1] |
HARNESS
|
SAS
seedtool 6.5 m - extension
|
| 2. |
279043A1
|
[1] |
ELEC CONNECTOR,Female, 9 Pin
|
CAS
metal 9c plug Superseded by part number: 87703855
|
| 3. |
86500036
|
[10] |
TERMINAL,Female, Nickel, 0.75 - 2mm
|
PA
16-18awg
|
| 4. |
900302
|
[2] |
TERMINAL
|
NH
12-14awg Superseded by part number: 87697875
|
| 5. |
425083A1
|
[2] |
POWER SOCKET
|
FLX
contact socket 8-10 Deutsch
|
| 6. |
788614
|
[1] |
PROTECTING COVER
|
NH
dust 23 con rcp Deutsch
|
| 7. |
425050A1
|
[1] |
ELEC CONNECTOR,Female, 6 Pin
|
FLX
plastic 6c plug Superseded by part number: 87706941
|
| 8. |
14045
|
[1] |
DUST CAP
|
FLX
6 cond rcp Deutsch
|
| 9. |
352506A1
|
[1] |
ELEC CONNECTOR,Male, 9 Pin
|
CAS
metal 9c receptacle
|
| 10. |
225348C1
|
[4] |
ELEC. TERMINAL PIN,Male, 0.75 - 2.00 mm2
|
CAS
pin 16-18awg Superseded by part number: 87695607
|
| 11. |
425084A1
|
[2] |
ELEC. TERMINAL PIN
|
FLX
pin, 12-14 Deutsch
|
| 12. |
51200870
|
[2] |
ELEC. TERMINAL PIN,8 - 10 SAE
|
FLX
contact pin 8-10 Deutsch
|
| 13. |
84068583
|
[1] |
PLUG,12 - 16 Ga, White
|
ZED
connector cavity white plastic Superseded by part number: 87695652
|
| 14. |
51200012
|
[1] |
LOCK WASHER
|
FLX
split 1 3/4" id x 3/32" tk Superseded by part number: 84607513
|
| 15. |
459329C1
|
[1] |
NUT
|
IH
1 11/16"-18 aluminum 3/16" thick
|
| 16. |
245041C1
|
[1] |
CAP
|
CAS
dust 23 cond plug Deutsch Superseded by part number: 87716289
|
