神钢零件查询(MD180LC) - EXCAVATOR ASN YG0647 (1/80-12/06) (08-004) - VANDALISM PRO. GROUP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
148 次

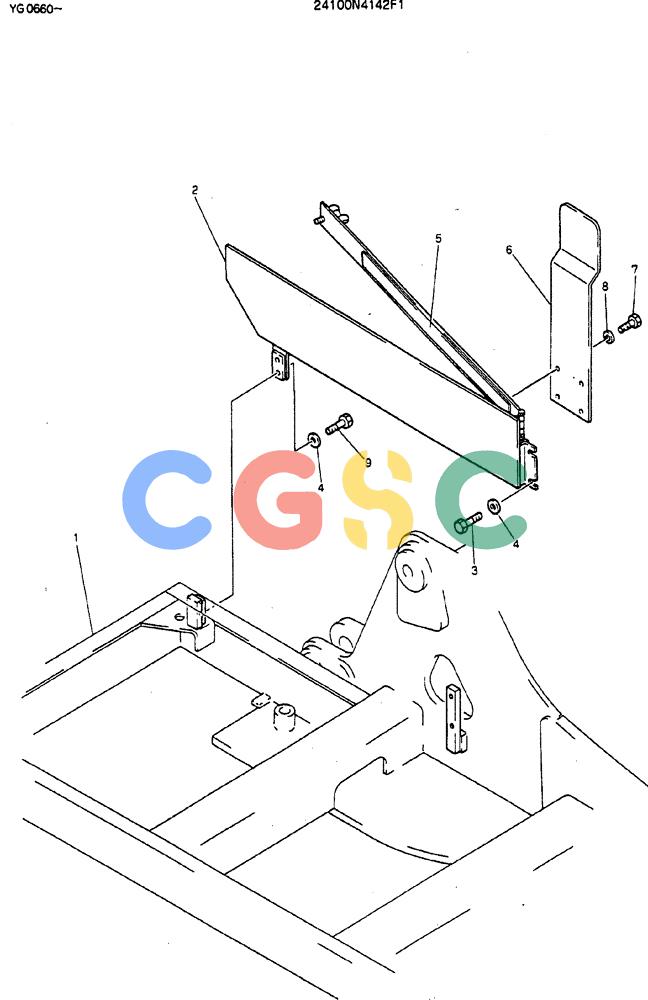

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4142F1 | [1] | VANDALISM PRO. GROUP | |
| 1. | 2422N918 | [1] | REWORK, UPP FRAME | |
| 2. | 2421J167 | [1] | BOX | BOX |
| 3. | ZS18C12022 | [2] | SCREW,Hex, M12 x 22mm | KOBM12x1.75x22mm |
| 4. | ZW16P12000 | [4] | WASHER | KOBID 13 x OD 24 x Th 2.5mm |
| 5. | 2416Z532 | [1] | RUBBER, CUSHION | |
| 6. | 2418T17942 | [1] | PLATE | |
| 7. | ZS18C10016 | [4] | SCREW,Hex, M10 x 16mm | KOBM10x1.50x16mm |
| 8. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 9. | ZS18C12032 | [2] | CAPSCREW | |
