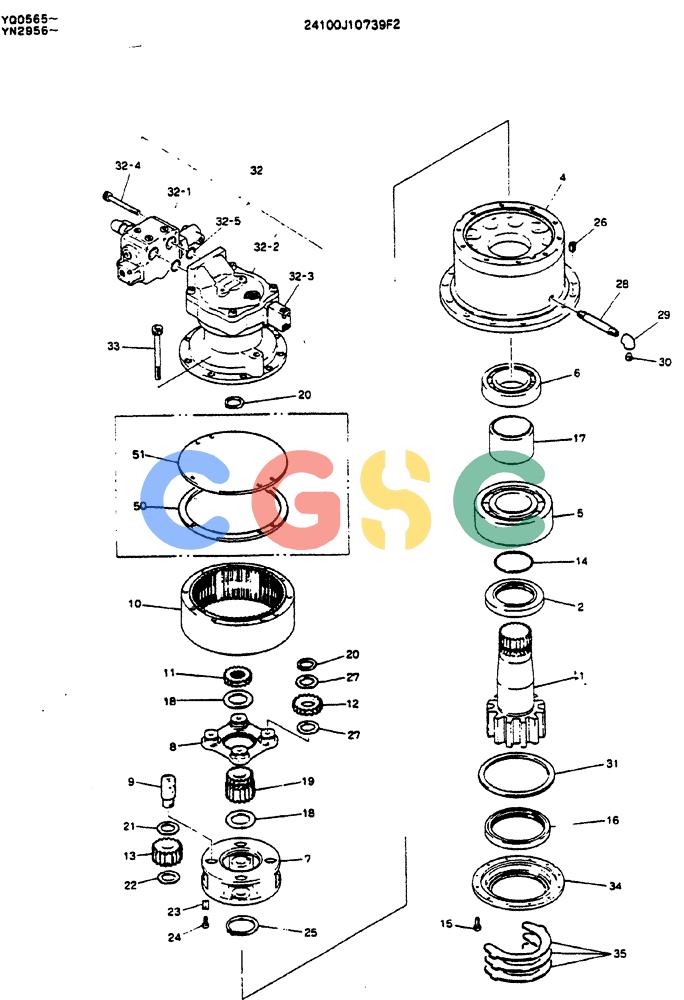

神钢零件查询(MD200BLC) - EXCAVATOR ASN YQ0565 (1/80-12/06) (01-003) - MOTOR ASSY, SWING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
902 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J10739F2 | [1] | HYDRAULIC MOTOR | KOB |
| 1. | 2401N436 | [1] | FINGER ASSY. | KOB |
| 2. | 2418T19344 | [1] | SLEEVE | KOB |
| 4. | 2414J1915 | [1] | HOUSING | HOUSING |
| 5. | R25P0047D8 | [1] | BEARING | KOBBEARING, ROLLER |
| 6. | 25Z494D11 | [1] | BEARING | KOB |
| 7. | 2413J350 | [1] | DIFF. SPIDER | KOB |
| 8. | 2413N391F1 | [1] | SPIDER | KOB |
| 9. | 2410P694 | [4] | ROLLER SHAFT | KOB |
| 10. | 2401N431 | [1] | GEAR | KOB |
| 11. | 2401P624 | [1] | SUN GEAR | KOB |
| 12. | 2401P625 | [4] | PINION | KOB |
| 13. | 2401P627 | [4] | PINION | KOB |
| 14. | ZD11G09500 | [1] | O-RING,94.40mm ID x 100.60mm OD x 3.10mm | KOBID 94.40 ± 0.81 x OD 100mm |
| 15. | ZS23C08030 | [12] | SCREW,Hex Socket Head, M8 x 30mm | KOBM08x1.25x30mm Superseded by part number: ZS28C08030 |
| 16. | 2418R245 | [1] | OIL SEAL | KOB |
| 17. | 2418T13612 | [1] | SPACER | KOB |
| 18. | 2418T12561 | [2] | SPACER | KOB |
| 19. | 2401P626 | [1] | SUN GEAR | KOB |
| 20. | ZR16X04500 | [5] | RING | KOBRetaining -- ID 45 x OD 58 x Th 1.8mm |
| 21. | 2418T7535 | [4] | THRUST WASHER | KOB |
| 22. | 2418T8322 | [4] | THRUST WASHER | KOB |
| 23. | 2418T7513 | [4] | LOCKING PLATE | KOB |
| 24. | ZS23C08014 | [8] | SCREW,Hex Socket Head, M8 x 14mm | KOBM08x1.25x14mm |
| 25. | ZR16X08500 | [1] | LOCKING RING | KOB |
| 26. | ZS83C20020 | [2] | SCREW | KOBSet -- M20x2.50x20mm |
| 27. | 2418T5452 | [8] | THRUST WASHER | KOB |
| 28. | 2420T6698D3 | [1] | RIGID TUBE | KOB |
| 29. | ZG31U12000 | [1] | ELBOW | KOB |
| 30. | ZE82T12000 | [1] | PLUG | KOB3/4" PT |
| 31. | 2418T17394 | [1] | SPACER | KOB |
| 32. | 2441U790F1 | [1] | HYDRAULIC MOTOR | KOB |
| 32-1. | 2436U1252F3 | [1] | X | KOBCONTROL, SEE (C.P.M.) |
| 32-2. | 2441U785F1 | [1] | HYDRAULIC MOTOR | KOBSEE (C.P.M.) |
| 32-3. | 2436U1283F1 | [1] | VALVE PRESSURE RELIE | KOBSEE (C.P.M.) |
| 32-4. | ZS23C12110 | [6] | SCREW,Hex Socket Head, M12 x 110mm | KOBM12x1.75x110mm Superseded by part number: ZS28C12110 |
| 32-5. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 33. | ZS23C14140 | [10] | SCREW,Hex Socket Head, M14 x 140mm | KOBM14x2.0x140mm |
| 34. | 2418N4704 | [1] | RETAINER | RETAINER |
| 35. | 2427P2999 | [3] | PROTECTOR | |
| 50. | 2418T18132 | [1] | SPACER | SPACER |
| 51. | 2414T2977 | [1] | COVER | KOB |
