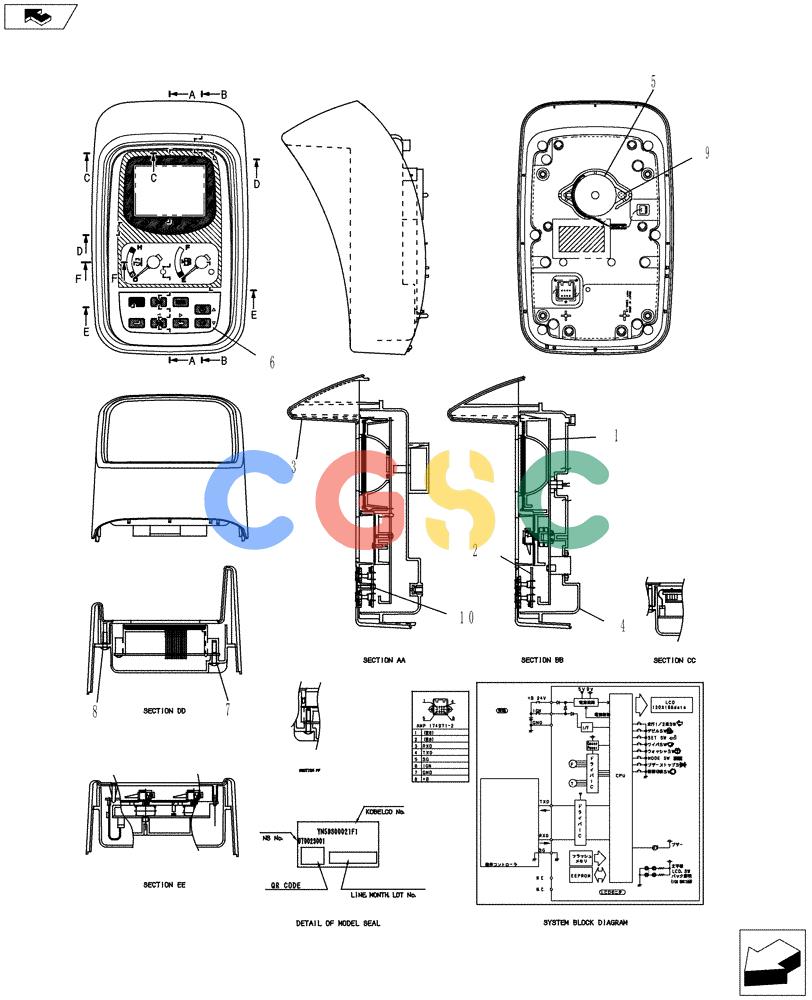

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-074[03]) - PANEL ASSEMBLY, INSTRUMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
909 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN59S00021S001 | [1] | CONTROL MONITOR | SMGauge |
| 2. | YN59S00021S002 | [1] | PRINTED CIRCUIT BOARD | SM |
| 3. | YN59S00021S003 | [1] | COVER | SMCase |
| 4. | YN59S00021S004 | [1] | COVER | SMCase |
| 5. | YN59S00021S005 | [1] | BUZZER | SM |
| 6. | YN59S00021S006 | [1] | PANEL | SM |
| 7. | YN59S00021S007 | [6] | SCREW | SM |
| 8. | YN59S00021S008 | [6] | SCREW | SM |
| 9. | YN59S00021S009 | [2] | SCREW | SM |
| 10. | YN59S00021S010 | [7] | SCREW | SM |
