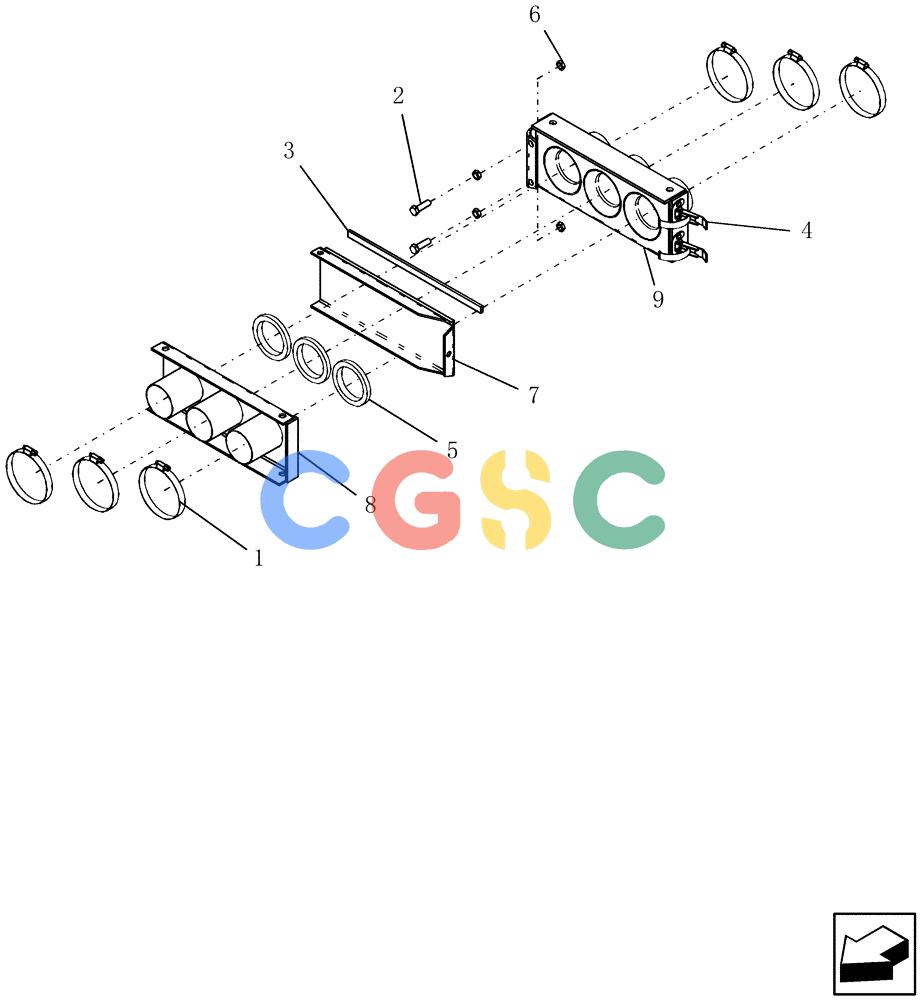

凯斯零件查询(2330) - PRECISION AIR CART (1/08-12/15) (58.100.02) - AIR DISTRIBUTION QUICK CONNECT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
885 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
214-1444
|
[6] |
HOSE CLAMP,58.6mm - 82.5mm
|
CAS
Superseded by part number: 86050197
|
| 2. |
88011
|
[2] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
|
NH
|
| 3. |
425289A1
|
[1] |
FOAM
|
FLX
3/16" x 1/2" - closed cell (50' roll)
|
| 4. |
5625
|
[2] |
LATCH
|
FLX
clamp over center
|
| 5. |
6177
|
[3] |
OIL SEAL
|
FLX
quick connect 2 1/2" id
|
| 6. |
87016560
|
[4] |
JAM NUT,Jam, 3/8"-16, G5
|
GFD
|
| 7. |
GD-254
|
[1] |
COVER
|
FLX
plate hose connect
|
| 8. |
GD-673
|
[1] |
FITTING
|
FLX
hose connector 2 1/2"
|
| 9. |
GD-672A
|
[1] |
HOLDER
|
FLX
quick connect 2 1/2" female
|
| 100. |
86992286
|
[1] |
HOSE,2.50" ID x 100.00'
|
SAS
Spiral PVC Black Order Multiples of 100 Feet
|
