神钢零件查询(MD200BLC) - EXCAVATOR ASN YQ0565 (1/80-12/06) (02-005) - SEAT ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
214 次

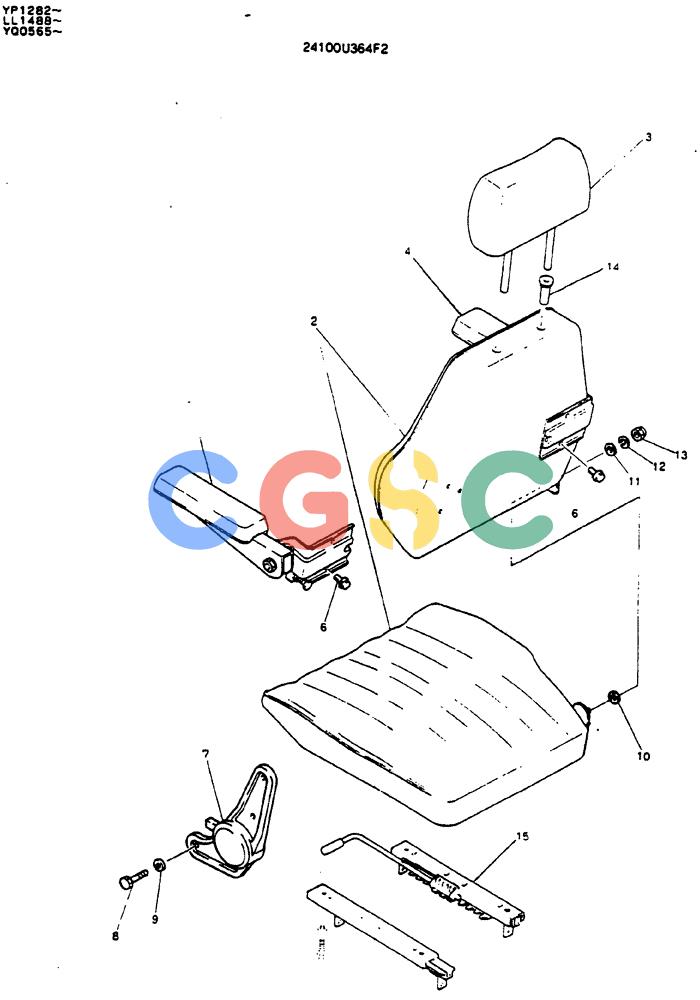

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100U364F2 | [1] | SEAT | KOB |
| 2. | 24100U364S2 | [1] | SEAT CUSHION | KOB |
| 3. | 24100U364S3 | [1] | HEAD | KOBREST |
| 4. | 24100U364S4 | [1] | ARMREST | KOB(R) |
| 5. | 24100U364S5 | [1] | ARMREST | KOB(L) |
| 6. | ZS13C08014 | [6] | SCREW | KOBM08x1.25x14mm Superseded by part number: ZS18C08014 |
| 7. | 24100U364S7 | [1] | BRACKET | KOB |
| 8. | ZS13F10025 | [4] | SCREW | KOBCAPSCREW Superseded by part number: ZS18F10025 |
| 9. | ZW22X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 10. | 24100U364S10 | [1] | BUSHING | KOBNYLON |
| 11. | 24100U364S11 | [1] | WASHER | |
| 12. | ZW22X08000 | [1] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 13. | ZN13C08007 | [1] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 14. | 24100U364S14 | [2] | GUIDE | KOB |
| 15. | 2429U72D1 | [1] | RAIL ASSY. | KOB |
| 16. | 2429U72D2 | [1] | RAIL ASSY. | KOB |
