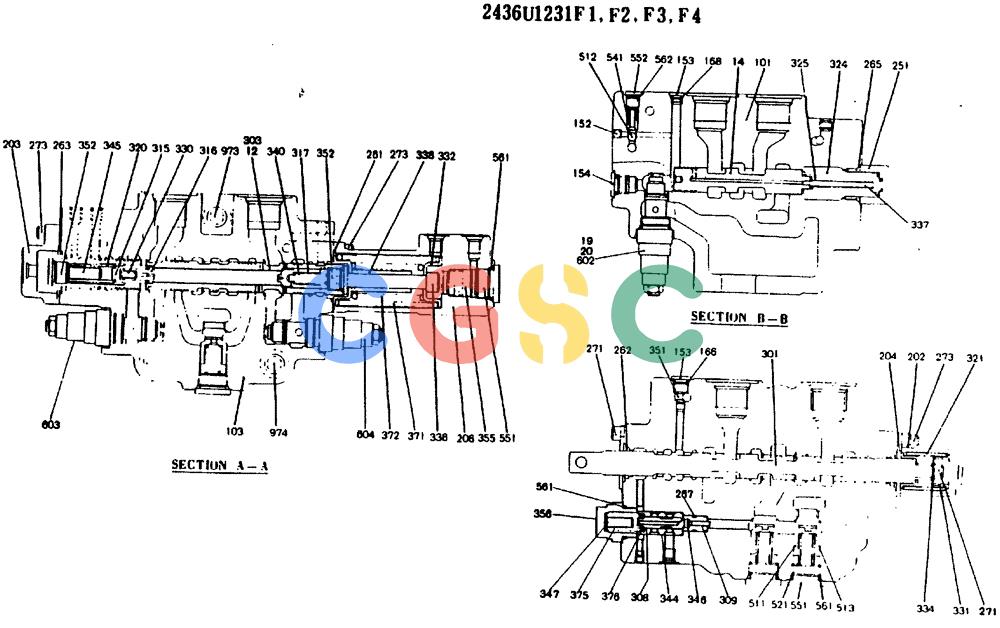

| . . | 2436U1231F1-F4 | [1] | VALVE ASSY,CONTROL, CONSISTS OF THE FOLLOWING PARTS | |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL, F2 & F4 ONLY |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL, F2 & F4 ONLY |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL, F2 & F4 ONLY |
| 14. | 2436U1231S14 | [1] | SPOOL F2 & F4 ONLY | SPOOL F2 & F4 ONLY |
| 15. | 2436U1231S15 | [2] | SPOOL F2 & F4 ONLY | SPOOL F2 & F4 ONLY |
| 16. | 2436U1231S16 | [2] | SPOOL | KOBF2 & F4 ONLY |
| 17. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL, F2 & F4 ONLY |
| 18. | 2436U1231S18 | [2] | SPRING | KOBF2 & F4 ONLY |
| 19. | 2436R683F1 | [2] | VALVE PRESSURE RELIE | KOBF3 ONLY , SEE FIGURE 11-003 Superseded by part number: 2436R683F2 |
| 20. | 2436R683F5 | [2] | VALVE ASSY, RELIEF, F4 ONLY , SEE FIGURE 11-003 | |
| 21. | 2436U1306F1 | [2] | VALVE PRESSURE RELIE | KOBVALVE, RELIEF F1 ONLY, SEE FIGURE 11-115 Superseded by part number: 2436R838F1 |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBLOCK |
| 102. | NSS | [1] | NOT SOLD SEPARAT | CONCASING |
| 103. | NSS | [1] | NOT SOLD SEPARAT | CONCASING |
| 152. | 2436U1165S152 | [37] | PLUG | KOB |
| 153. | ZE82T04000 | [4] | PLUG | KOB1/4" PT |
| 154. | 2436U1165S154 | [6] | PLUG | KOB |
| 156. | 2436U1165S156 | [2] | PLUG | KOB |
| 157. | 2436U1165S157 | [3] | PLUG | KOB Superseded by part number: 2436U1265S157 |
| 158. | 2436U1207S155 | [9] | PLUG | KOB |
| 161. | ZD12P03800 | [8] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 162. | 2436U1165S162 | [6] | O-RING | KOB Superseded by part number: 2436U1345S162 |
| 163. | ZD12P01500 | [1] | O-RING | KOBID 14.80 ± 0.20 x OD 19mm |
| 164. | ZD12P01400 | [6] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 166. | ZD12P01100 | [4] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 168. | ZD12P00800 | [12] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 201. | 2436U1165S201 | [2] | COVER | KOB |
| 202. | 2436U1165S202 | [2] | CAP | KOB |
| 203. | 2436U1165S203 | [2] | COVER | KOB |
| 204. | 2436U1165S204 | [4] | PLATE | KOB |
| 205. | 2436U1165S205 | [1] | COVER | KOB |
| 206. | 2436U1165S206 | [1] | COVER | KOB |
| 251. | 2436U1165S251 | [5] | PLUG | KOB |
| 261. | 2436U1165S261 | [3] | O-RING | KOB Superseded by part number: YN30V00079S261 |
| 262. | 2436U1165S262 | [4] | SEAL | KOBPACKING Superseded by part number: 2436U1265S262 |
| 263. | ZD12G04500 | [3] | O-RING,44.40mm ID x 50.60mm OD x 3.10mm | KOBID 44.40 ± 0.41 x OD 50mm |
| 265. | ZD12G02500 | [5] | O-RING,24.40mm ID x 30.60mm OD x 3.10mm | KOBID 24.4 ± 0.25 x OD 30mm |
| 267. | ZD12P01090 | [1] | O-RING | KOBID 09.80 ± 0.17 x OD 14mm |
| 271. | ZS23C08012 | [6] | SCREW,Hex Socket Head, M8 x 12mm | KOBM08x1.25x12mm |
| 273. | ZS23C08025 | [16] | SCREW,Hex Socket Head, M8 x 25mm | KOBM08x1.25x25mm |
| 301. | 2436U1165S301 | [2] | SPOOL | KOB |
| 302. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL, F1 & F3 ONLY |
| 303. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL, F1 & F3 ONLY |
| 304. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL, F1 & F3 ONLY |
| 305. | 2436U1231S305 | [1] | SPOOL F1 & F3 ONLY | SPOOL F1 & F3 ONLY |
| 306. | 2436U1165S306 | [2] | SPOOL | KOBF1 & F3 ONLY |
| 307. | 2436U1231S307 | [2] | SPOOL, F1 & F3 ONLY | |
| 308. | 2436U1231S308 | [1] | COUNTER | COUNTER |
| 309. | 2436U1231S309 | [1] | PISTON & RINGS KIT | KOB |
| 312. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL, F1 & F3 ONLY |
| 313. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 314. | NSS | [1] | NOT SOLD SEPARAT | CONSLEEVE |
| 315. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 316. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 317. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 318. | 2436U1231S318 | [1] | SPRING | SPRING |
| 320. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 321. | 2436U1231S321 | [2] | SPRING | KOB |
| 323. | 2436U1231S323 | [1] | SPRING | KOB |
| 324. | 2436U1165S324 | [1] | SPRING | KOB |
| 325. | 2436U1165S325 | [1] | SPRING | KOB |
| 326. | 2436U1165S326 | [2] | SPRING | KOBSPRING Superseded by part number: 2436U1165S373 |
| 327. | 2436U1165S327 | [2] | SPRING | KOBF1 & F3 ONLY |
| 328. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 329. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 330. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 331. | 2436U1165S331 | [4] | SPRING SEAT | KOB |
| 332. | 2436U1165S332 | [6] | SPRING SEAT | KOB Superseded by part number: 2436U1443S332 |
| 334. | 2436U1165S334 | [2] | WASHER | WASHER |
| 335. | 2436U1165S335 | [2] | STOP | KOB |
| 336. | 2436U1165S336 | [3] | BOLT | KOB |
| 337. | 2436U1165S337 | [5] | ROD | KOB |
| 338. | 2436U1165S338 | [1] | STOP | KOB |
| 339. | NSS | [1] | NOT SOLD SEPARAT | CONRING, STOP |
| 340. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 341. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 342. | NSS | [1] | NOT SOLD SEPARAT | CONSLEEVE |
| 343. | NSS | [1] | NOT SOLD SEPARAT | CONBOLT |
| 344. | 2436U1231S344 | [1] | SLEEVE | KOB |
| 345. | NSS | [1] | NOT SOLD SEPARAT | CONROD |
| 346. | 2436U1231S346 | [1] | BUSHING | KOB |
| 347. | 2436U1231S347 | [1] | STOPPER | |
| 349. | NSS | [2] | NOT SOLD SEPARAT | CONSTOPPER |
| 351. | 2436U1165S351 | [3] | ORIFICE | KOB |
| 352. | NSS | [2] | NOT SOLD SEPARAT | CONPLUG |
| 353. | 2436U1165S353 | [1] | PISTON | KOB |
| 354. | 2436U1165S354 | [1] | SPRING | KOB |
| 355. | 2436U1165S355 | [1] | PISTON | KOB Superseded by part number: 2436U1265S355 |
| 356. | 2436U1231S356 | [1] | PLUG | |
| 358. | NSS | [2] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 359. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 371. | 2436U1165S371 | [3] | SPRING | KOB |
| 372. | 2436U1165S372 | [2] | SPRING | KOB |
| 373. | 2436U1231S373 | [4] | SPRING | KOB |
| 374. | 2436U1165S374 | [2] | SPRING | KOB |
| 375. | 2436U1231S375 | [1] | SPRING | KOB |
| 376. | 2436U1231S376 | [1] | SEAT SPRING N/A | SEAT SPRING N/A |
| 391. | 2436U1231S391 | [1] | SPOOL | KOB |
| 511. | 2436U1165S511 | [7] | POPPET | KOB |
| 512. | 2483U106S512 | [6] | BALL | KOB Superseded by part number: 2483U172S19 |
| 513. | 2436U1231S513 | [2] | POPPET | KOB |
| 521. | 2436U1165S521 | [9] | SPRING | KOB |
| 541. | 2436U1165S541 | [1] | SEAT/SLOT | KOB |
| 542. | 2436U1165S542 | [2] | SEAT | KOB |
| 543. | 2436U1165S543 | [1] | SEAT | KOB |
| 544. | 2436U1165S544 | [2] | SEAT/SLOT | KOBSEAT Superseded by part number: 2436U1265S543 |
| 551. | 2436U1165S551 | [11] | PLUG | KOB |
| 552. | 2436U585S651 | [7] | PLUG | KOB Superseded by part number: YT30V00009S153 |
| 561. | ZD12P02400 | [12] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 562. | ZD12P01000 | [7] | O-RING | KOBID 09.80 ± 0.17 x OD 13mm |
| 601. | 2436R682F3 | [2] | VALVE PRESSURE RELIE | KOBF2 - F4 ONLY, SEE FIGURE 11-001 Superseded by part number: 2436R839F3 |
| 602. | 2436R683F3 | [2] | VALVE | KOBF1 & F2 ONLY, SEE FIGURE 11-002 |
| 603. | 2436R684F3 | [4] | VALVE ASSY, RELIEF F1 ONLY, SEE FIGURE 11-004 | VALVE ASSY, RELIEF F1 ONLY, SEE FIGURE 11-004 |
| 604. | 2436R684F4 | [2] | VALVE ASSY, RELIEF F1 ONLY, SEE FIGURE 11-004 | VALVE ASSY, RELIEF F1 ONLY, SEE FIGURE 11-004 |
| 612. | 2436U1231S612 | [1] | POPPET | KOB |
| 711. | 2436U1207S851 | [1] | PLUG | KOB |
| 971. | 2436U1165S971 | [1] | CAPSCREW | |
| 972. | 2436U1165S972 | [2] | CAPSCREW | |
| 973. | 2436U1165S973 | [1] | SCREW | KOB |
| 974. | 2436U1165S974 | [2] | SCREW | KOB |
| 975. | NSS | [1] | NOT SOLD SEPARAT | CONNAME PLATE |
| . . | 2436U1231R100 | [1] | REPAIR KIT (K907), CONSISTS OF REF 101, 152 - 154, 158, 164, 166, 168, 202, 204, 251, 261, 262, 265, 271, 273, 301, 305, 308, 309, 321, 325, 331, 334, 337, 344, 346, 347, 351, 356, 375, 376, 512, 513, 521, 541, 551, 552, 561 & 602 | REPAIR KIT (K907), CONSISTS OF REF 101, 152 - 154, 158, 164, 166, 168, 202, 204, 251, 261, 262, 265, 271, 273, 301, 305, 308, 309, 321, 325, 331, 334, 337, 344, 346, 347, 351, 356, 375, 376, 512, 513, 521, 541, 551, 552, 561 & 602 |
| . . | 2436R1231R200 | [1] | (K907), REPAIR KIT, CONSISTS OF REF. 102, 152 - 154, 156 - 158, 161 - 163, 166, 168, 201, 205, 251, 261, 263, 265, 273, 302, 306, 307, 312 - 314, 318, 326 - 329, 332, 335 - 337, 339, 341 - 343, 349, 351, 353, 354, 358, 359, 373, 374, 391, 511, 512, 5 | |
| . . | 2436R1231R300 | [1] | (K907), REPAIR KIT, CONSISTS OF REF 103, 152 - 154, 157, 158, 161, 162, 164, 168, 201, 203, 206, 251, 261, 263, 265, 273, 304, 306, 315 - 317, 320, 326, 327, 330, 332, 335 - 338, 340, 345, 352, 355, 371 - 374, 511, 512, 521, 542, 544, 551, 552, 561, | |
| . . | 2436R1231R400 | [1] | (K907, K909), REPAIR KIT, CONSISTS OF REF 308, 309, 344, 346, 347, 356, 375 & 376 | |
| . . | 2436R1231R500 | [1] | (K907), REPAIR KIT, CONSISTS OF REF 302, 312 - 314, 318, 328, 329, 341 - 343, 349, 358 & 359 | |
| . . | 2436R1231R600 | [1] | (K907), REPAIR KIT, CONSISTS OF REF 303, 315 - 317, 320, 330, 340, 345 & 352 | |
| . . | 2436R1231R700 | [1] | (K909), REPAIR KIT, CONSISTS OF REF 101, 152 - 154, 158, 164, 166, 168, 202, 204, 251, 262, 265, 267, 271, 273, 301, 305, 308, 309, 321, 324, 325, 331, 334, 337, 344, 346, 347, 351, 356, 375, 376, 512, 513, 521, 541, 551, 552, 561 & 602 | |
| . . | 2436R1231R800 | [1] | (K909), REPAIR KIT, CONSISTS OF REF 11, 15 - 19, 21, 102, 152 - 154, 156 - 158, 161 - 163, 166, 168, 201, 205, 251, 261, 263, 265, 273, 313, 314, 318, 326, 328, 332, 335 - 337, 339, 341 - 343, 349, 351, 353, 354, 358, 359, 373, 374, 391, 341 - 343, 3 | |
| . . | 2436R1231R900 | [1] | (K909), REPAIR KIT, CONSISTS OF REF 12, 13, 21, 103, 152 - 154, 157, 158, 161, 162, 164, 166, 168, 171, 201, 203, 206, 251, 261, 263, 265, 273, 306, 315 - 317, 320, 326, 327, 330, 332, 335 - 338, 340, 345, 355 - 338, 340, 345, 355, 371 - 374, 511, 51 | |
| . . | 2436R1231R1000 | [1] | (K909), REPAIR KIT, CONSISTS OF REF 11, 17, 19, 313, 314, 318, 328, 341 - 343, 349, 358 & 359 | |
| . . | 2436R1231R1100 | [1] | (K909), REPAIR KIT, CONSISTS OF REF 12, 315 - 317, 320, 330, 340, 345 & 352 | |
