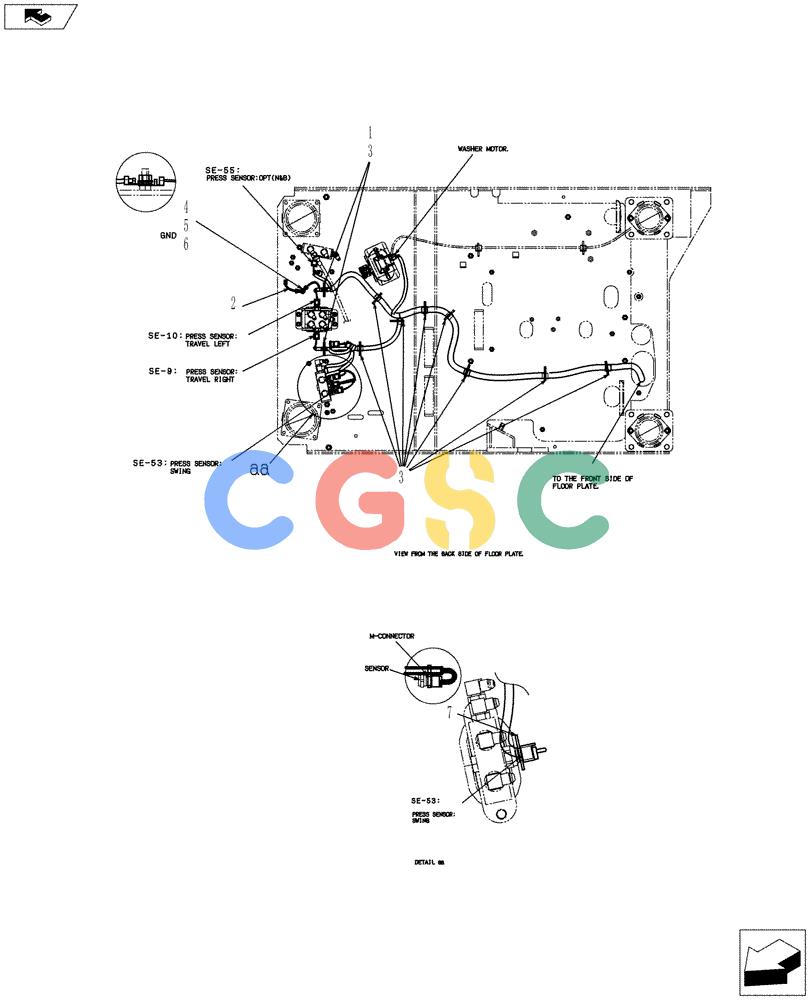

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-086[03]) - HARNESS ASSEMBLY, UPPER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
897 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN13E01375P1 | [22] | CLIP,M8 x 8.20mm Shank | KOB |
| 2. | LE13E01005P1 | [1] | CABLE,100mm L | KOB |
| 3. | PY01P01043D3 | [22] | CABLE TIE,188mm L | KOB |
| 4. | ZW26X08000 | [1] | LOCK WASHER | KOBLock Superseded by part number: 83990583 |
| 5. | ZW16P08000 | [1] | WASHER | KOB |
| 6. | ZN18C08007 | [1] | NUT | KOB |
| 7. | PY01P01043DA | [2] | CABLE TIE,2.50mm W x 205mm L | KOB |
