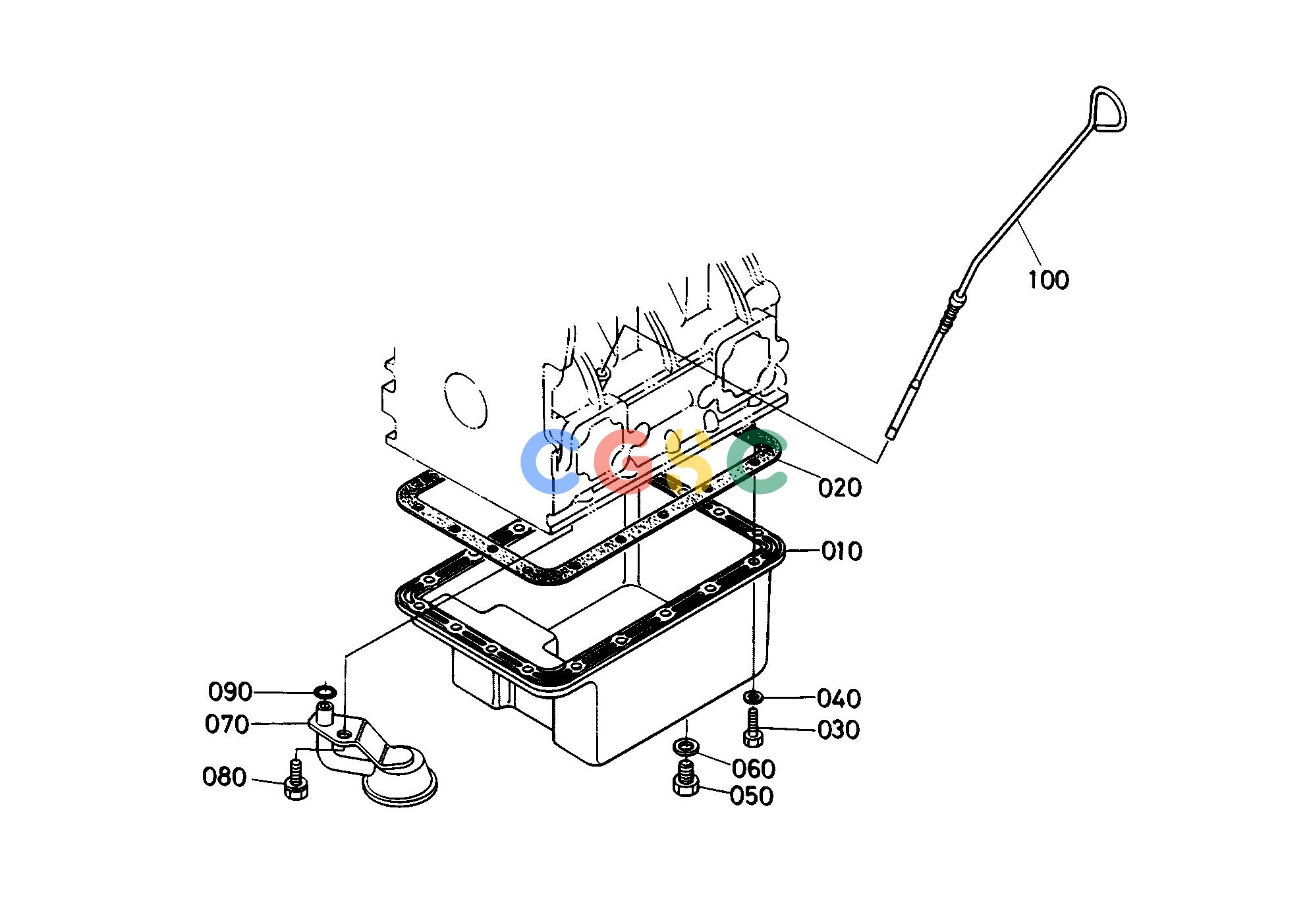

久保田零件查询E00200 OIL PAN ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
960 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1537101614
|
[1] |
OIL PAN
|
2.4200(lbs); 1.100
|
| 020. |
1538101620
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 030. |
1538191092
|
[18] |
BOLT
|
0.0044(lbs); 0.002
|
| 040. |
0451250060
|
[18] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 050. |
1522133750
|
[1] |
PLUG
|
0.0704(lbs); 0.032
|
| 060. |
1510933660
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 070. |
1553132110
|
[1] |
FILTER OIL
|
0.4070(lbs); 0.185
|
| 080. |
0112350816
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 090. |
0481100140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
1553336410
|
[1] |
GAUGE OIL
|
0.0660(lbs); 0.030
|
