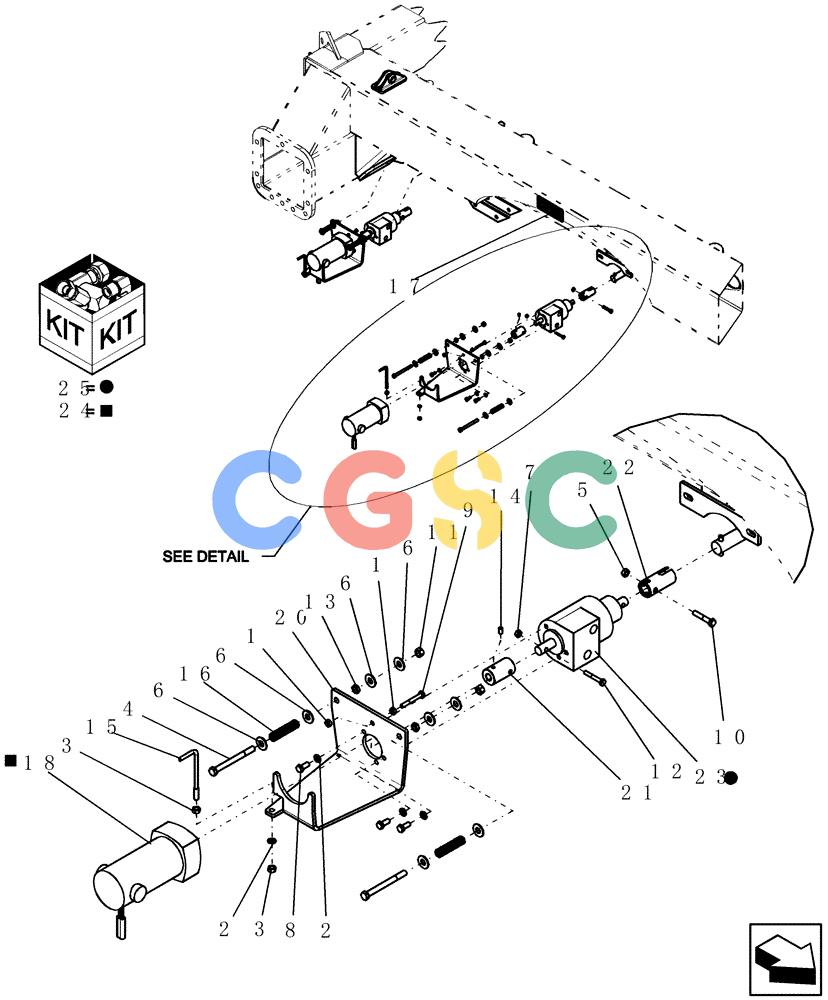

凯斯零件查询(2330) - PRECISION AIR CART (1/08-12/15) (75.100.16) - VARIABLE DRIVE COMPONENTS (2 TANK) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
829 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7770
|
[4] |
NUT,Hex, 1/4 - 20, Cl 5
|
NH
|
| 2. |
80681
|
[8] |
LOCK NUT,5/16"
|
NH
Superseded by part number: 83990583
|
| 3. |
9635082
|
[4] |
NUT,5/16" - 18, Gr 5
|
NH
|
| 4. |
80012047
|
[4] |
BOLT,Hex, 3/8" - 16 x 4", Grade 5
|
WIN
|
| 5. |
281010
|
[2] |
LOCK NUT,7/8"-14, GC
|
BAS
|
| 6. |
80702
|
[16] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
|
| 7. |
280129
|
[2] |
NUT,1/4"-20
|
NH
|
| 8. |
87872
|
[6] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
NH
|
| 9. |
87404
|
[2] |
BOLT,Hex, 1/4" - 20 x 2", Gr 5
|
PA
|
| 10. |
9707515
|
[2] |
BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5
|
NH
|
| 11. |
9628503
|
[4] |
NUT,3/8"-16, G5
|
NH
|
| 12. |
280164
|
[2] |
BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5
|
NH
|
| 13. |
87016560
|
[4] |
JAM NUT,Jam, 3/8"-16, G5
|
GFD
|
| 14. |
6986
|
[2] |
SET SCREW
|
FLX
1/4"-20 x 1/2"
|
| 15. |
9456
|
[2] |
BOLT
|
FLX
5/16"-18 x 4 1/4"l x 1 35/64"d 1 9/16" leg
|
| 16. |
87506229
|
[4] |
COMPRESSION SPRING
|
SAS
1/16" Wire x 5/8" od x 2 3/4" long
|
| 17. |
22408
|
[1] |
DECAL
|
FLX
vr drive filter maintenance
|
| 18. |
87445140
|
[1] |
ELECTRIC MOTOR
|
SAS
121rpm @12v 1/15hp
|
| . . |
87445140R
|
[1] |
REMAN-ELECTRIC MOTOR
|
SAS
2280, 2330 both (1/08-)
|
| . . |
87445140C
|
[1] |
CORE-ELECTRIC MOTOR
|
SAS
Return Number
|
| 20. |
GL-102
|
[2] |
BRACKET
|
FLX
mount, variable rate drive
|
| 21. |
GL-484
|
[2] |
COUPLING
|
FLX
|
| 22. |
GL-485
|
[2] |
COUPLING,22.56mm ID x 31.75mm OD x 66.67mm L
|
FLX
|
| 22. |
GM-350
|
[2] |
COUPLING,23.11mm ID x 31.8mm OD x 70.6mm L
|
FLX
tg to meter roller
|
| 23. |
GM-363
|
[2] |
HYDRAULIC MOTOR
|
FLX
torque generator 2 3/16" 3/rev Superseded by part number: 22709
|
| 24. |
87504964
|
[1] |
SEAL KIT
|
SAS
seals output sht vr motor Superseded by part number: 87354185, 84262590, 87504963
|
| 24. |
GM-399K
|
[1] |
KIT
|
FLX
VR Motor Bearing Replacement
|
| 25. |
22396
|
[1] |
SEAL KIT
|
FLX
torque generator
|
