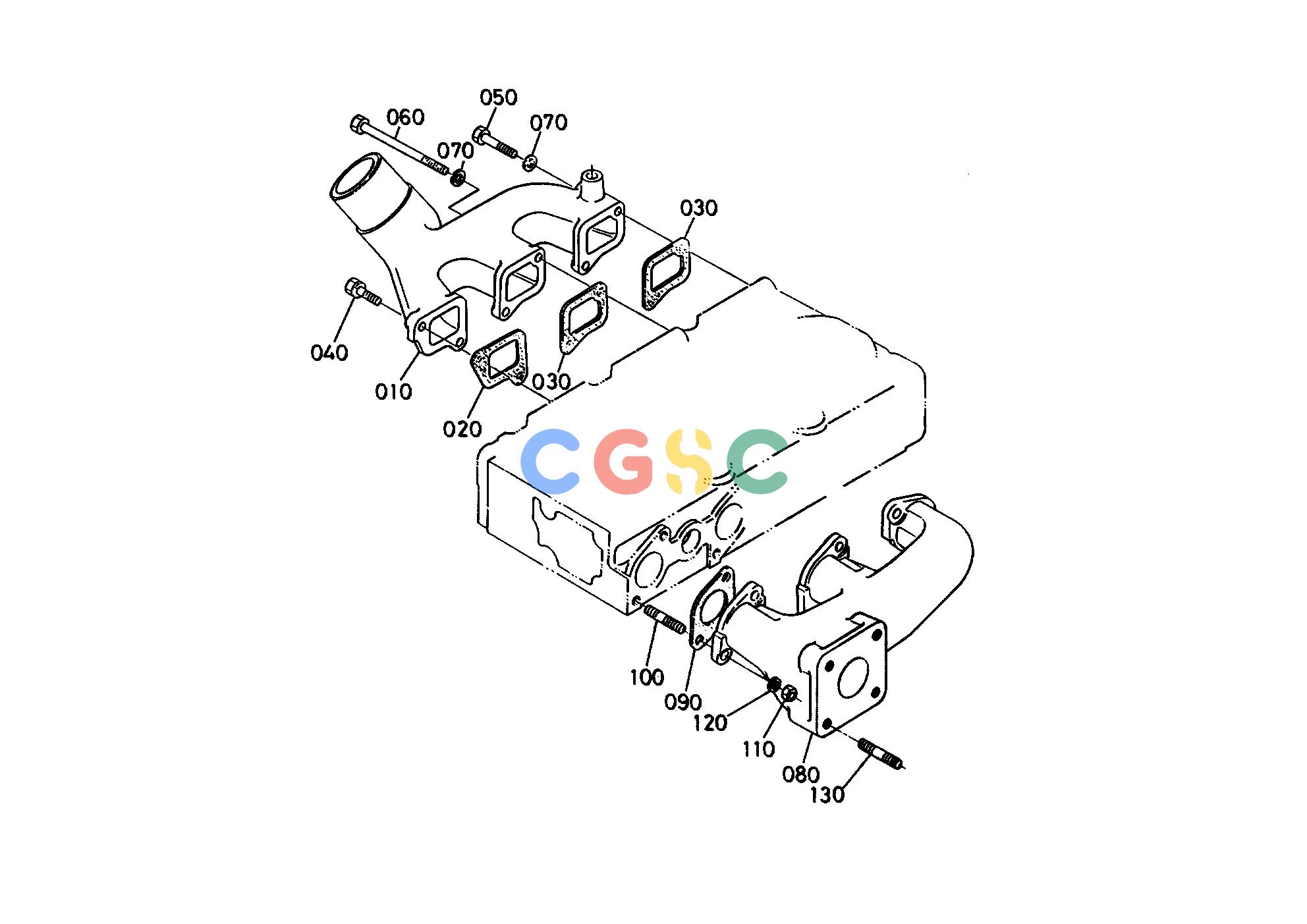

久保田零件查询E00700 MANIFOLD ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
805 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1553111760
|
[1] |
MANIFOLD INLET
|
1.1000(lbs); 0.500
|
| 020. |
1526111820
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 030. |
1526111830
|
[2] |
GASKET
|
0.0000(lbs); 0.000
|
| 040. |
0102350620
|
[4] |
BOLT
|
0.0132(lbs); 0.006
|
| 050. |
0105350660
|
[1] |
BOLT
|
0.0308(lbs); 0.014
|
| 060. |
1538191070
|
[1] |
BOLT
|
0.0352(lbs); 0.016
|
| 070. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 080. |
1553212310
|
[1] |
MANIFOLD EXHAUST
|
3.0360(lbs); 1.380
|
| 090. |
1526112360
|
[3] |
GASKET
|
0.0000(lbs); 0.000
|
| 100. |
1538191532
|
[6] |
STUD
|
0.0110(lbs); 0.005
|
| 110. |
0205650060
|
[6] |
NUT
|
0.0044(lbs); 0.002
|
| 120. |
0451250060
|
[6] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 130. |
0151350822
|
[4] |
STUD
|
0.0220(lbs); 0.010
|
