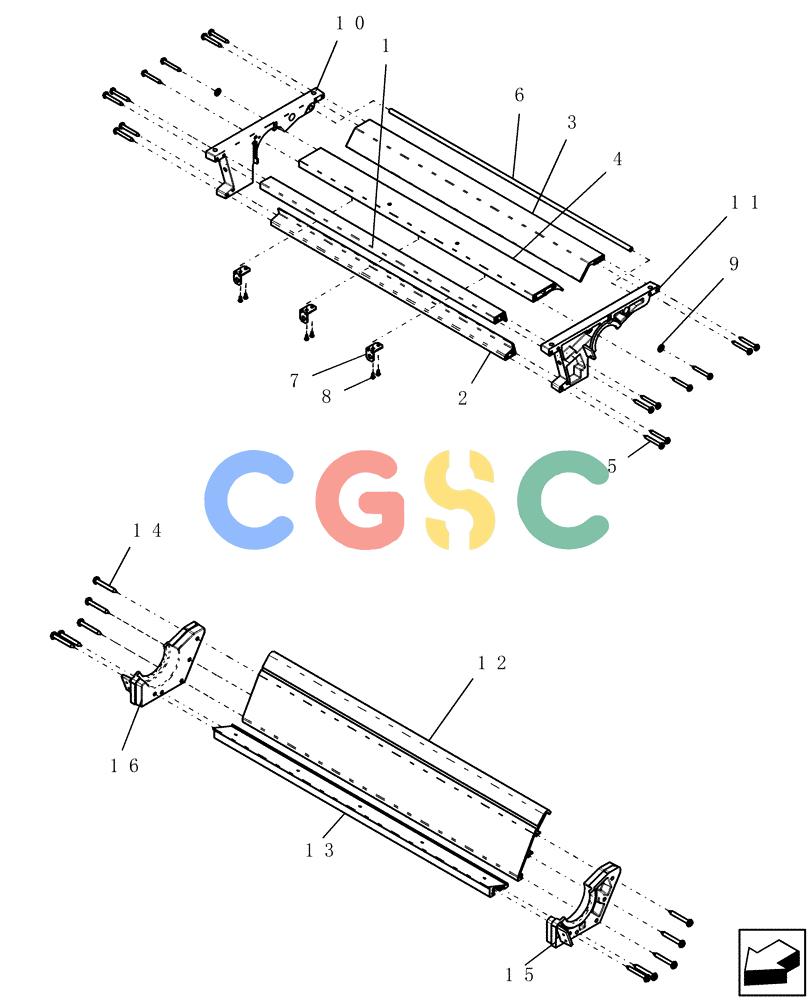

凯斯零件查询(2330) - PRECISION AIR CART (1/08-12/15) (75.100.19) - TOP AND BOTTOM METER ASSEMBLIES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
834 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
GL-408
|
[1] |
TOP
|
SAS
28" Meter Panel
|
| 2. |
GL-409
|
[1] |
BOTTOM
|
SAS
21" Meter Panel
|
| 3. |
GL-410
|
[1] |
TOP
|
SAS
28" Meter Panel
|
| 4. |
GL-411
|
[1] |
PANEL
|
SAS
Top Center, 28" Meter
|
| 5. |
6881
|
[16] |
SELF-TAP SCREW
|
FLX
#14 x 2" hwh ab sq
|
| 6. |
GL-414
|
[1] |
ROD
|
SAS
meter jaw hinge 28" meter box
|
| 7. |
8193
|
[3] |
BRACKET
|
FLX
swell latch
|
| 8. |
8258
|
[6] |
SELF-TAP SCREW,Phillips Drive, Pan Head, #8 - 32 x 3/8"
|
FLX
#8-32 x 3/8" ph d pi
|
| 9. |
87361
|
[2] |
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
|
NH
|
| 10. |
GL-592
|
[1] |
SIDE PANEL
|
FLX
meter box top RH (Casting # 8255)
|
| 11. |
GL-590
|
[1] |
SIDE PANEL
|
FLX
meter box top lhs (Casting # 8253)
|
| 12. |
GL-418
|
[1] |
DOOR
|
SAS
Cleanout, 28" Meter Box
|
| 13. |
GL-419
|
[1] |
PANEL
|
SAS
Bottom Center
|
| 15. |
GL-591
|
[1] |
SIDE PANEL
|
SAS
meter box - bottom (Casting # 8254)
|
| 16. |
GL-593
|
[1] |
SIDE PANEL
|
SAS
meter box - bottom (Casting # 8256)
|
