神钢零件查询(MD200BLC) - EXCAVATOR ASN YQ0565 (1/80-12/06) (05-005) - RADIATOR ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
378 次

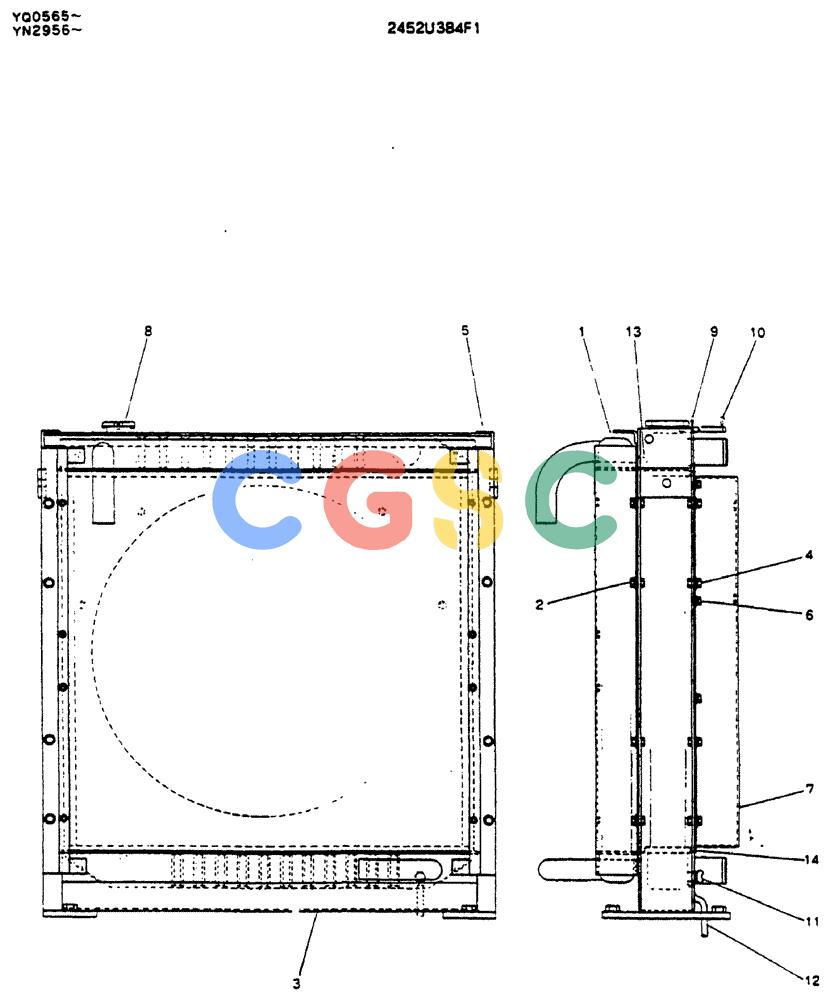

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2452U384F1 | [1] | RADIATOR ASSY | RADIATOR ASSY |
| 1. | 2452U384S1 | [1] | OIL COOLER | KOB |
| 2. | 2452U374S10 | [8] | BOLT | KOB |
| 3. | 2452U384S3 | [1] | RADIATOR | RADIATOR |
| 4. | 2452U201S31 | [8] | BOLT ASSY | BOLT ASSY |
| 5. | 2452U384S5 | [1] | FRAME | FRAME |
| 6. | 2452U374S8 | [8] | BOLT ASSY | BOLT ASSY |
| 7. | 2452U384S7 | [1] | SHROUD | KOB |
| 8. | 2452U221S111 | [1] | CAP | KOBPRESS Superseded by part number: 2414Z262 |
| 9. | 2452U267S8 | [2] | CLIP | KOB |
| 10. | 2452U384S10 | [1] | HOSE | KOB |
| 11. | 2452U221S18 | [1] | DRAINCOCK/TAP SUPPLY | KOB |
| 12. | 2452U384S12 | [1] | PIPING, DRAIN | |
| 13. | 2452U384S13 | [2] | PACKING | KOB |
| 14. | 2452U255S10 | [2] | PACKING | KOB |
