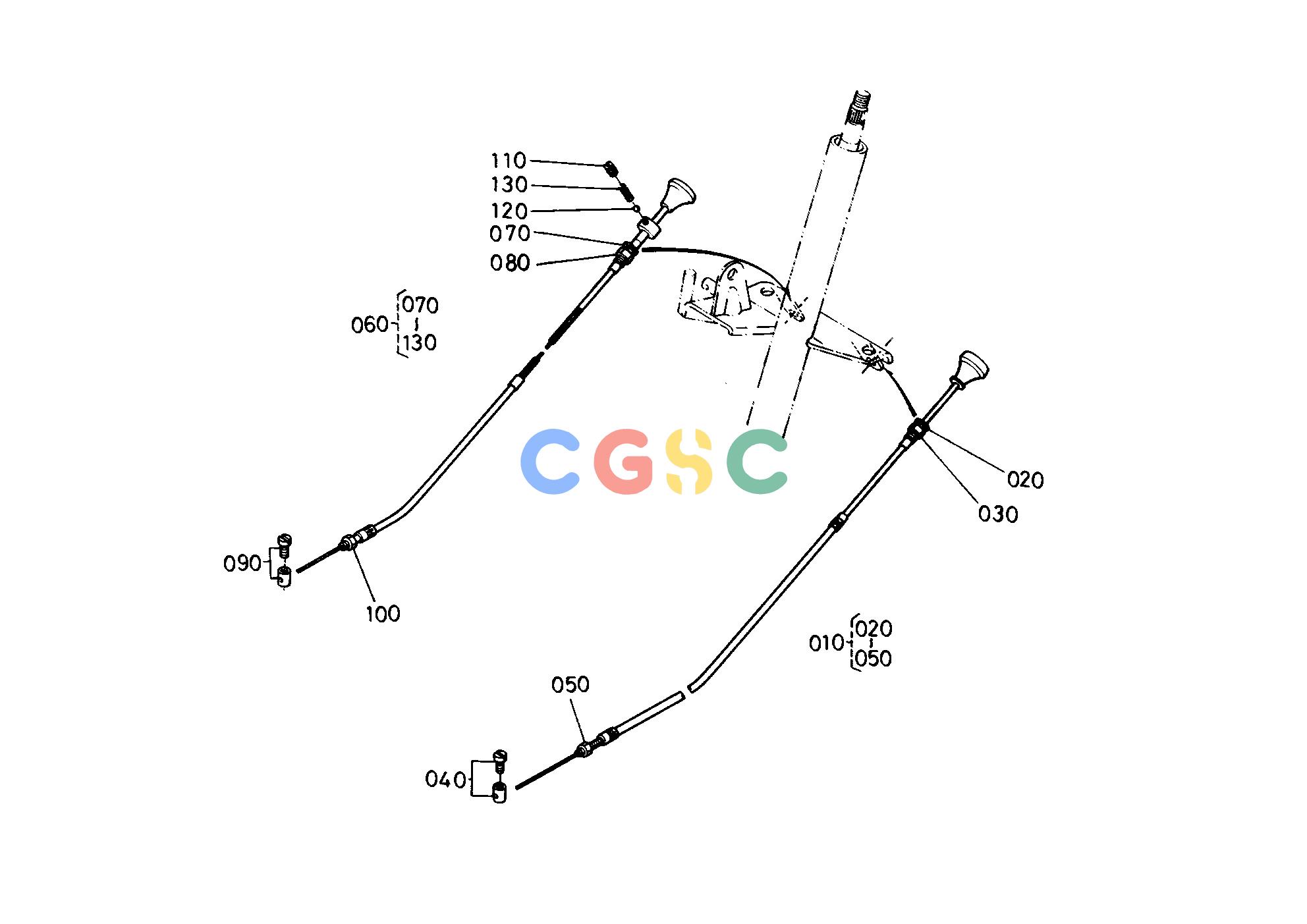

久保田零件查询T04100 DECOMPRESS WIRE/ENGINE STOP WIRE ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
734 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6780053910
|
[1] |
WIRE DECOMPRESS
|
0.2090(lbs); 0.095
|
| 010. |
H678053910
|
[1] |
WIRE DECOMPRESS
|
0.2090(lbs); 0.095
|
| 020. |
0451250100
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 030. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 040. |
6711153930
|
[1] |
ASSY SCREW SET
|
0.0066(lbs); 0.003
|
| 050. |
0205450050
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 060. |
6780053923
|
[1] |
WIRE ENGINE STOP
|
0.0000(lbs); 0.000
|
| 070. |
0451250100
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 080. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 090. |
6711153930
|
[1] |
ASSY SCREW SET
|
0.0066(lbs); 0.003
|
| 100. |
0205450050
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 110. |
6711153940
|
[1] |
SCREW ADJUSTING
|
0.0066(lbs); 0.003
|
| 120. |
0771501603
|
[1] |
BALL
|
0.0220(lbs); 0.010
|
| 130. |
6711153950
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
