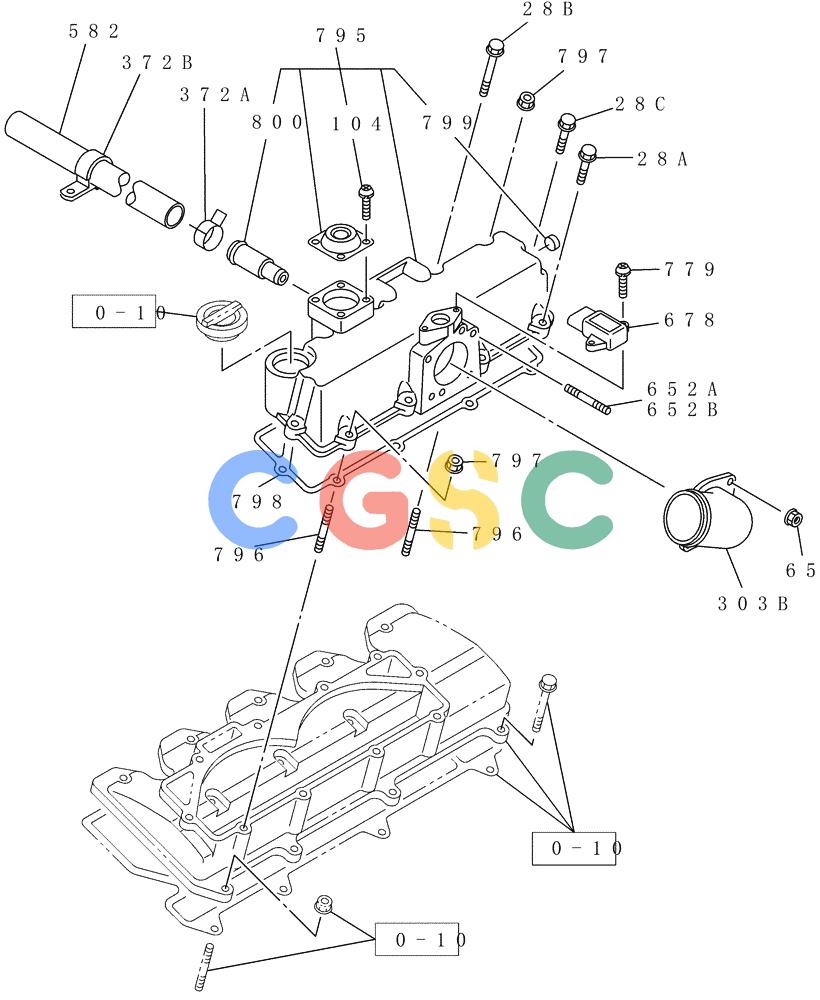

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (B118M-25A) - INLET MANIFOLD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1024 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A. | VI0280506200 | [4] | BOLT | KOBChamber |
| B. | VI0280506600 | [3] | BOLT | KOBChamber |
| C. | VI0280506800 | [1] | BOLT | KOBChamber |
| . . | VI0362204100 | [4] | SCREW | KOB |
| B. | VI8973149170 | [1] | PIPE | KOBAir |
| A. | VI8941211130 | [1] | CLIP | KOB; Hose Superseded by part number: 8942420340 |
| B. | VI5097003001 | [1] | HOSE CLIP | KOB |
| . . | VI8980930310 | [1] | FLEXIBLE HOSE | KOBRubber Pcv |
| A. | VI0410106160 | [1] | STUD | KOBDuct, Air Inlet |
| B. | VI8970946411 | [1] | STUD | KOBDuct, Air Inlet |
| . . | VI8973296220 | [2] | NUT | KOBDuct, Air Inlet |
| . . | VI8972177780 | [1] | SENSOR | KOBBoost |
| . . | VI8944280070 | [2] | BOLT | KOBSensor |
| . . | VI8980751530 | [1] | CHAMBER | KOBInt |
| . . | VI0410106200 | [2] | STUD | KOBChamber |
| . . | VI0911801060 | [2] | NUT | KOBChamber |
| . . | VI8980305980 | [1] | GASKET | KOBChamber |
| . . | VI5096000130 | [1] | CUP | KOBSealing Superseded by part number: VI8970363351 |
| . . | VI8980457380 | [1] | VALVE | KOBPcv |
