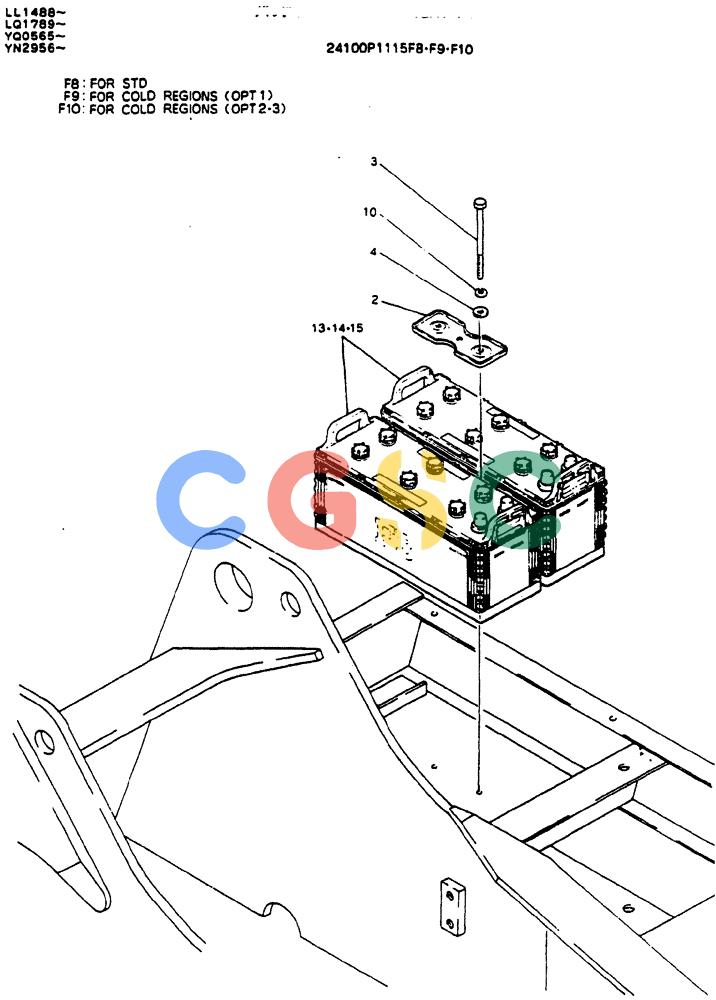

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1115F8 | [1] | BATTERY ASSY | |
| 2. | 2418P5535 | [1] | PLATE | KOB |
| 3. | R20T0084D16 | [2] | SCREW | KOBM10x1.50x220mm |
| 4. | 2418T5373C2 | [2] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 10. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 13. | 2484U173 | [2] | BATTERY | |
| . . | 24100P1115F9 | [1] | BATTERY ASSY | |
| 14. | 2484U174 | [2] | BATTERY | |
| . . | 24100P1115F10 | [1] | BATTERY ASSY | |
| 15. | 2484U175 | [2] | BATTERY | BATTERY |
