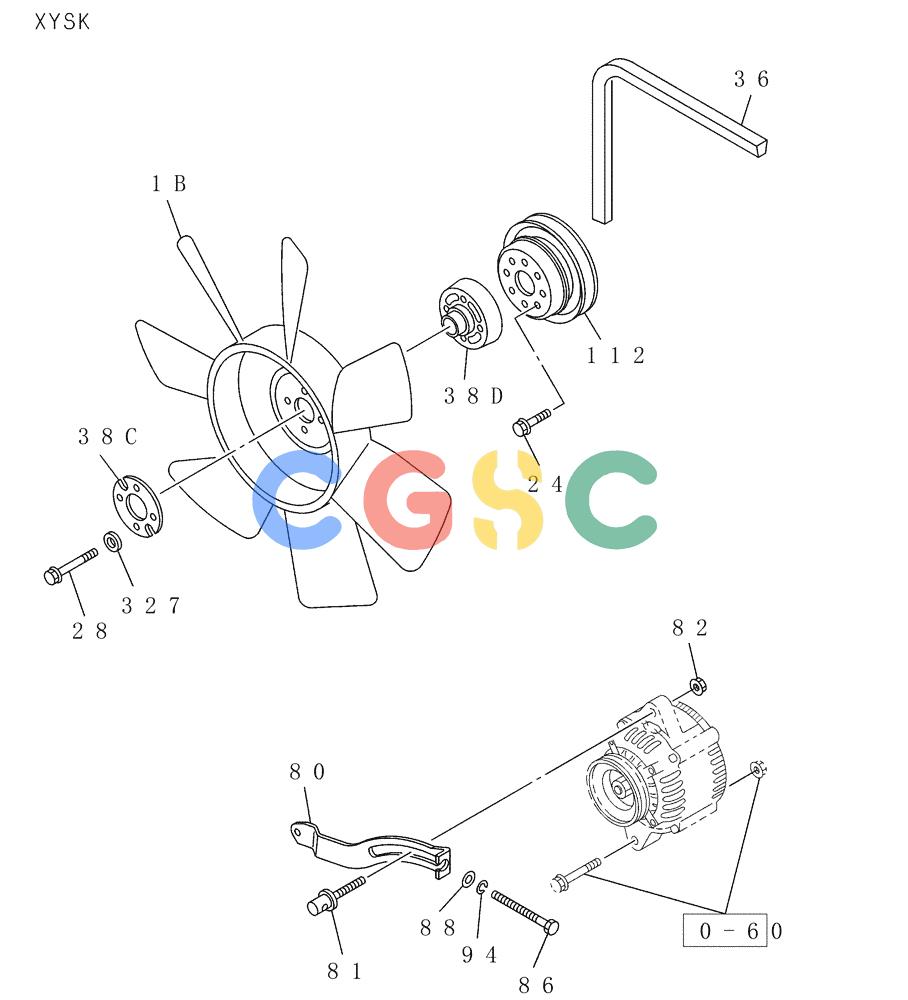

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (B118M-33A) - FAN AND FAN BELT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
199 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| B. | VI8972876961 | [1] | FAN | KOBCooling |
| . . | VI0208006120 | [2] | BOLT | KOBFan |
| . . | VI0280506600 | [4] | BOLT | KOBCooling Fan |
| . . | VI8980490330 | [1] | BELT | KOBCooling Fan |
| C. | VI8970634003 | [1] | SPACER | KOBFan |
| D. | VI9136420780 | [1] | SPACER | KOBFan |
| . . | VI8980488910 | [1] | ADJUSTING PLATE | KOBAdj |
| . . | VI8972572230 | [1] | SLIDE | KOBPiece |
| . . | VI0911802080 | [1] | NUT | KOBAdj Plate |
| . . | VI8971727201 | [1] | BOLT | KOBAdj |
| . . | VI0916147080 | [1] | WASHER | KOBPl, Adj Plate |
| . . | VI0915108080 | [1] | WASHER | KOBLk, Adj Plate |
| . . | VI8980044530 | [1] | PULLEY | KOBFan Center |
| . . | VI0916107060 | [4] | WASHER | KOBPl, Fan |
