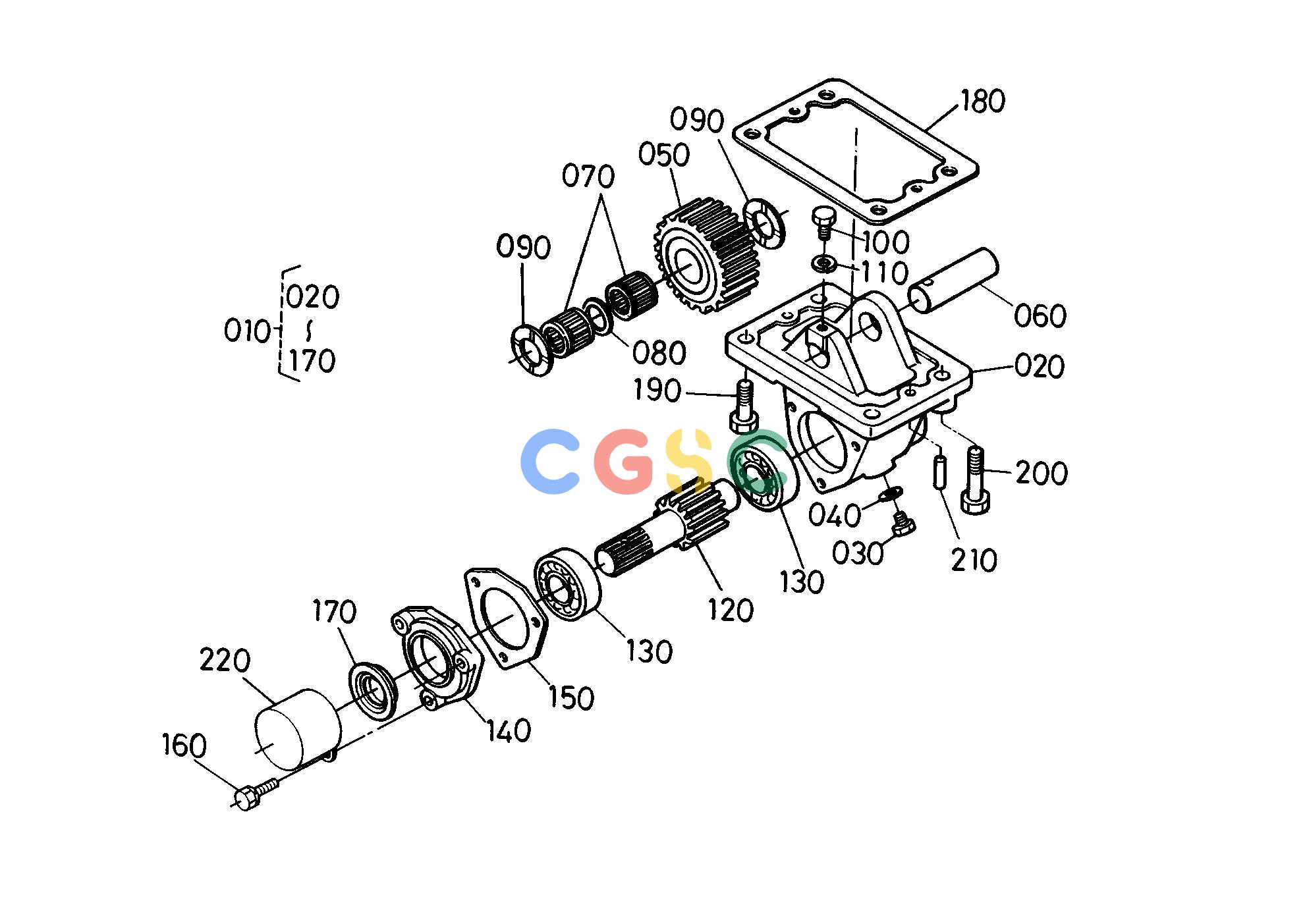

久保田零件查询T01400 MID PTO TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
954 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6706121200
|
[1] |
KIT PTO MID.
|
0.0000(lbs); 0.000
|
| 020. |
6706121210
|
[1] |
CASE
|
0.0000(lbs); 0.000
|
| 030. |
0633135016
|
[1] |
PLUG
|
0.0880(lbs); 0.040
|
| 040. |
0471701600
|
[1] |
WASHER SEAL
|
0.0066(lbs); 0.003
|
| 050. |
6706121220
|
[1] |
GEAR
|
1.5400(lbs); 0.700
|
| 060. |
6706121230
|
[1] |
SHAFT
|
0.3872(lbs); 0.176
|
| 070. |
6706121270
|
[2] |
BEARING NEEDLE
|
0.0660(lbs); 0.030
|
| 080. |
6706121250
|
[1] |
COLLAR
|
0.0132(lbs); 0.006
|
| 090. |
9638025140
|
[2] |
COLLAR
|
0.0308(lbs); 0.014
|
| 100. |
0115350820
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 110. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 120. |
6706121240
|
[1] |
GEAR-SHAFT
|
1.1660(lbs); 0.530
|
| 130. |
0810106205
|
[2] |
BEARING BALL
|
0.2640(lbs); 0.120
|
| 140. |
6706121260
|
[1] |
COVER GEAR CASE
|
0.5456(lbs); 0.248
|
| 150. |
9638025180
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 160. |
0112350825
|
[3] |
BOLT
|
0.0286(lbs); 0.013
|
| 170. |
6630115850
|
[1] |
SEAL OIL
|
0.0550(lbs); 0.025
|
| 180. |
6620421220
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 190. |
0112351028
|
[2] |
BOLT
|
0.0550(lbs); 0.025
|
| 200. |
0112351040
|
[2] |
BOLT
|
0.0660(lbs); 0.030
|
| 210. |
0501200816
|
[2] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 220. |
6620421250
|
[1] |
COVER MID-PTO
|
0.1540(lbs); 0.070
|
