神钢零件查询(MD200BLC) - EXCAVATOR ASN YQ0565 (1/80-12/06) (06-003) - ROLLER ASSY (LOWER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
120 次

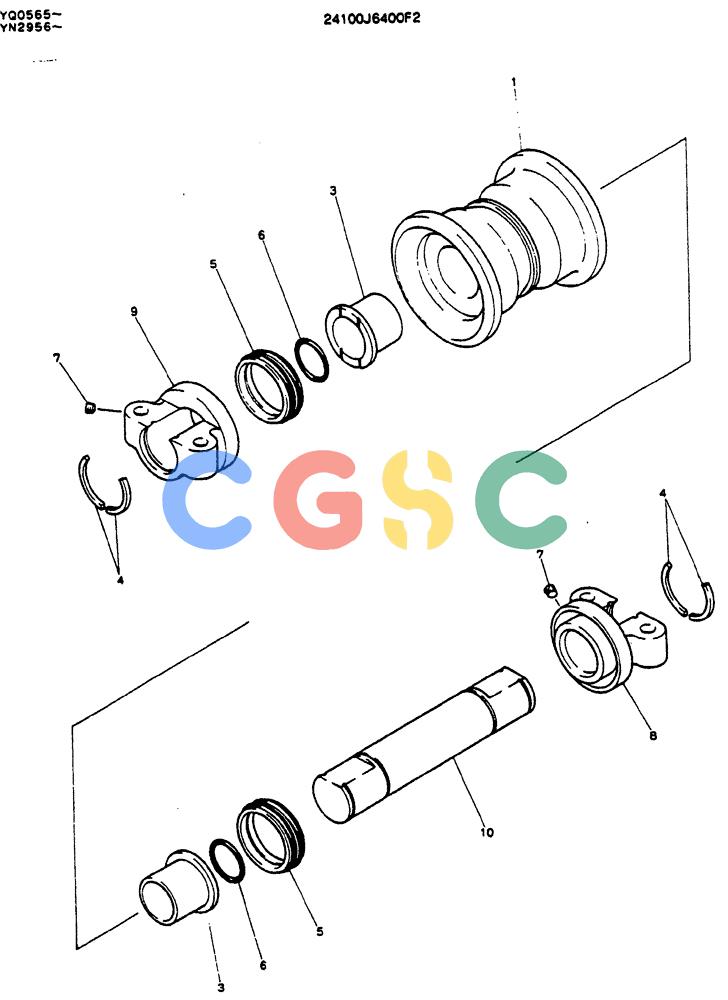

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6400F2 | [1] | TRACK ROLLER | KOB |
| 1. | 2413N407 | [1] | ROLLER | KOB |
| 3. | 2405P489 | [2] | BUSHING,66mm ID x 87mm OD x 64.5mm L | KOBID 65 x OD 69 x 60mm Long |
| 4. | 2418T12616 | [4] | LOCKING RING | KOB |
| 5. | R45P0018D25 | [2] | SEAL | KOB Superseded by part number: ZD58F09132 |
| 6. | ZD11G06000 | [2] | O-RING,59.40mm ID x 65.60mm OD x 3.10mm | KOBID 59.40 ± 0.61 x OD 65mm |
| 7. | ZE82T04000 | [2] | PLUG | KOB1/4" PT |
| 8. | 2418N4510D1 | [1] | COLLAR CLAMP | KOB |
| 9. | 2418N4510D2 | [1] | COLLAR CLAMP | KOB |
| 10. | 2419N69 | [1] | SHAFT | SHAFT |
