神钢零件查询(MD200BLC) - EXCAVATOR ASN YQ0565 (1/80-12/06) (06-008) - RING, SLEWING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
501 次

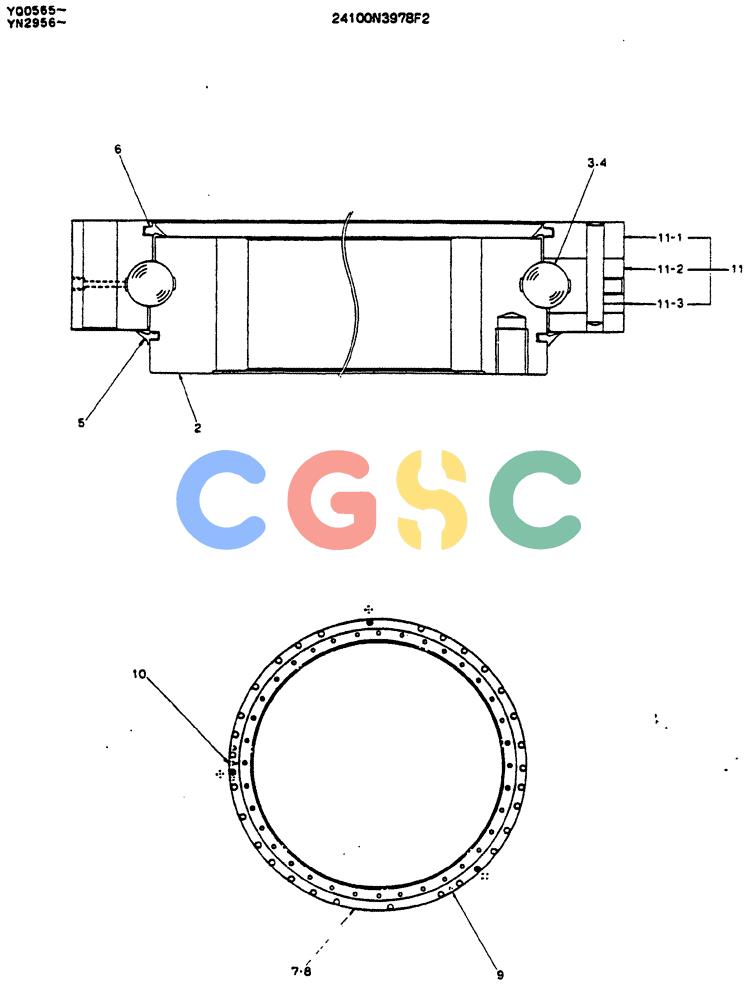

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N3978F2 | [1] | SLEWING RING | KOBBEARING ASSY |
| 2. | 2401N439 | [1] | RACE, INNER | RACE, INNER |
| 3. | 2425T380 | [104] | BALL | KOB |
| 4. | 2425T381 | [104] | RETAINER | KOB |
| 5. | 2445P165D2 | [1] | SEAL | KOB Superseded by part number: YN40F01024D4 |
| 6. | 2445P165D1 | [1] | SEAL | KOB Superseded by part number: YN40F01024D4 |
| 7. | 2432T1265 | [1] | LABEL | KOB Superseded by part number: YN22T00191P1 |
| 8. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 9. | ZE82T04000 | [2] | PLUG | KOB1/4" PT |
| 10. | ZE82T02000 | [1] | PLUG | KOBPipe, 1.25" PT |
| 11. | 2425N355F1 | [1] | RACE, OUTER | RACE, OUTER |
| 11-1. | 2425N355 | [1] | RACE, OUTER | |
| 11-2. | 2420T4508 | [1] | PLUG | KOB |
| 11-3. | 2419T1964D1 | [1] | PIN | KOBTaper -- OD 10 x 70mm Long |
| . . | 2445P114D7 | [1] | SEAL KIT | KOBREF CAN BE USED FOR 5 OR 6 Superseded by part number: YN40F01024D4 |
