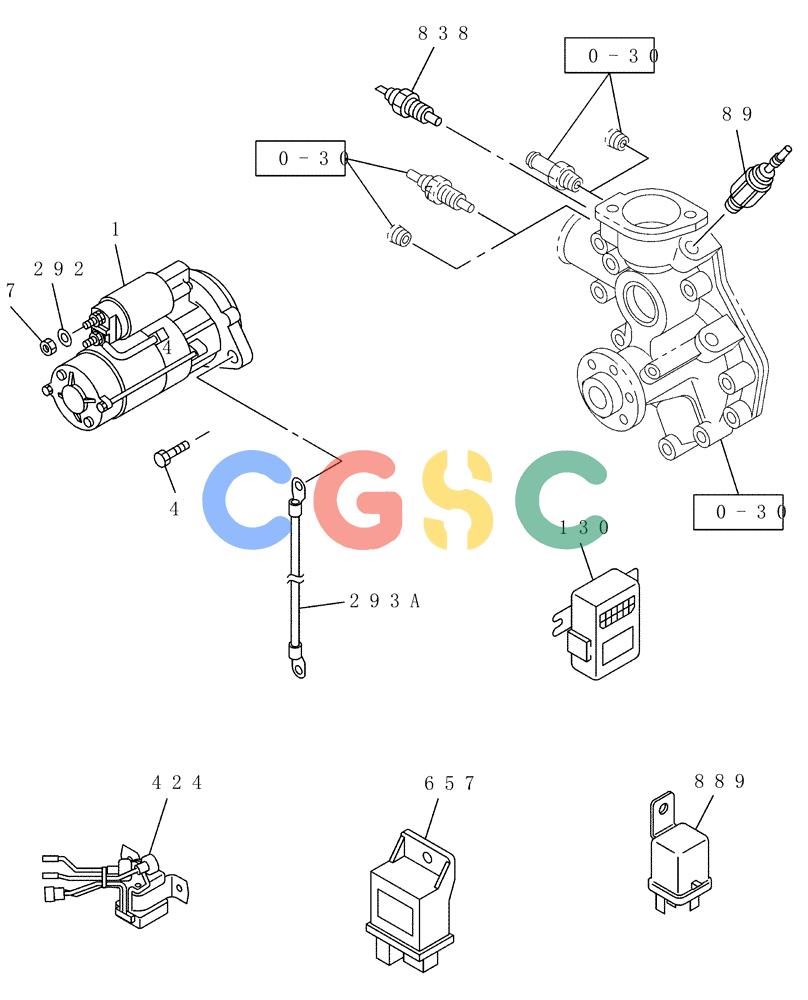

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (B118M-60A[2]) - ENGINE ELECTRICAL CONTROL PARTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
558 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8980723151 | [1] | STARTER MOTOR | KOBAsm (see Fig. No. 0-65) (see Fig. No. 0-65) |
| . . | VI8971822892 | [1] | GENERATOR | KOBAsm (see Fig. No. 0-66) (see Fig. No. 0-66) |
| . . | VI0281512350 | [2] | BOLT | KOBStarter |
| . . | VI0911115080 | [1] | NUT | KOBStarter |
| . . | VI0280558120 | [1] | BOLT | KOBGen |
| . . | VI8980488900 | [1] | BRACKET | KOBGen |
| . . | VI0911802080 | [1] | NUT | KOBGen |
| A. | VI0280508700 | [1] | BOLT | KOBGen Brkt |
| B. | VI0280510450 | [1] | BOLT | KOBGen Brkt |
| . . | VI8971256001 | [1] | SWITCH | KOBOver Heat Warning |
| . . | VI8980305740 | [1] | CONTROLLER | KOBEgr |
| . . | VI8972091152 | [1] | SOLENOID | KOBAsm Eng Stop |
| . . | VI9095714140 | [2] | GASKET | KOBPickup |
| . . | VI0915108080 | [1] | WASHER | KOBLk, Starter |
| A. | VI9829322110 | [1] | ELECTRIC CABLE | KOBStarter Earth |
| . . | VI1825530391 | [1] | RELAY | KOBSafety, Starter |
| . . | VI8941268220 | [1] | SENSOR | KOBSensor Tacho Superseded by part number: VIG1466721020 |
| . . | VI8980305730 | [1] | TIMER | KOBGlow Plug |
| . . | VI8970633010 | [1] | SENSOR | KOBThermo, Qos |
| . . | VI5825500300 | [1] | RELAY | KOB |
