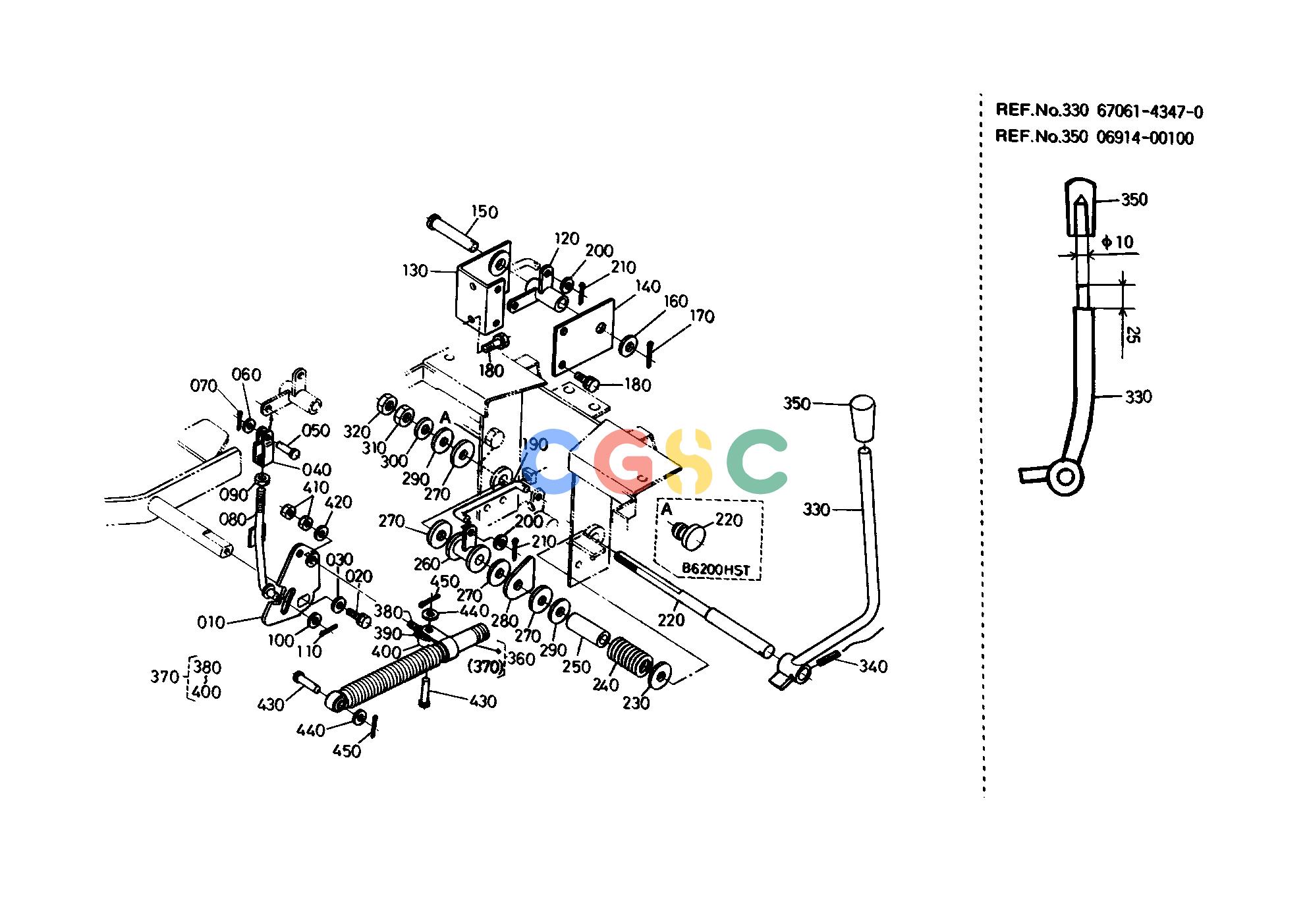

久保田零件查询T02800 SPEED CHANGE 2 SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
777 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6706143420
|
[1] |
PLATE SPEED CHANGE
|
0.4400(lbs); 0.200
|
| 020. |
0112350816
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 030. |
0401550080
|
[1] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 130. |
6706143530
|
[1] |
SUPPORT
|
0.6160(lbs); 0.280
|
| 180. |
0112350820
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 220. |
6717143570
|
[1] |
PLUG SPEED LOCK
|
0.0220(lbs); 0.010
|
| 360. |
6620443530
|
[1] |
DAMPER
|
0.6600(lbs); 0.300
|
| 370. |
6620443600
|
[1] |
ASSY BOLT DAMPER
|
0.0770(lbs); 0.035
|
| 380. |
6620443610
|
[1] |
BOLT
|
0.0660(lbs); 0.030
|
| 390. |
6620443540
|
[1] |
BUSH RUBBER
|
0.0044(lbs); 0.002
|
| 400. |
6620443620
|
[1] |
COLLAR
|
0.0220(lbs); 0.010
|
| 410. |
0211250080
|
[2] |
NUT
|
0.0066(lbs); 0.003
|
| 420. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 430. |
0512250830
|
[2] |
PIN JOINT
|
0.0308(lbs); 0.014
|
| 440. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 450. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
