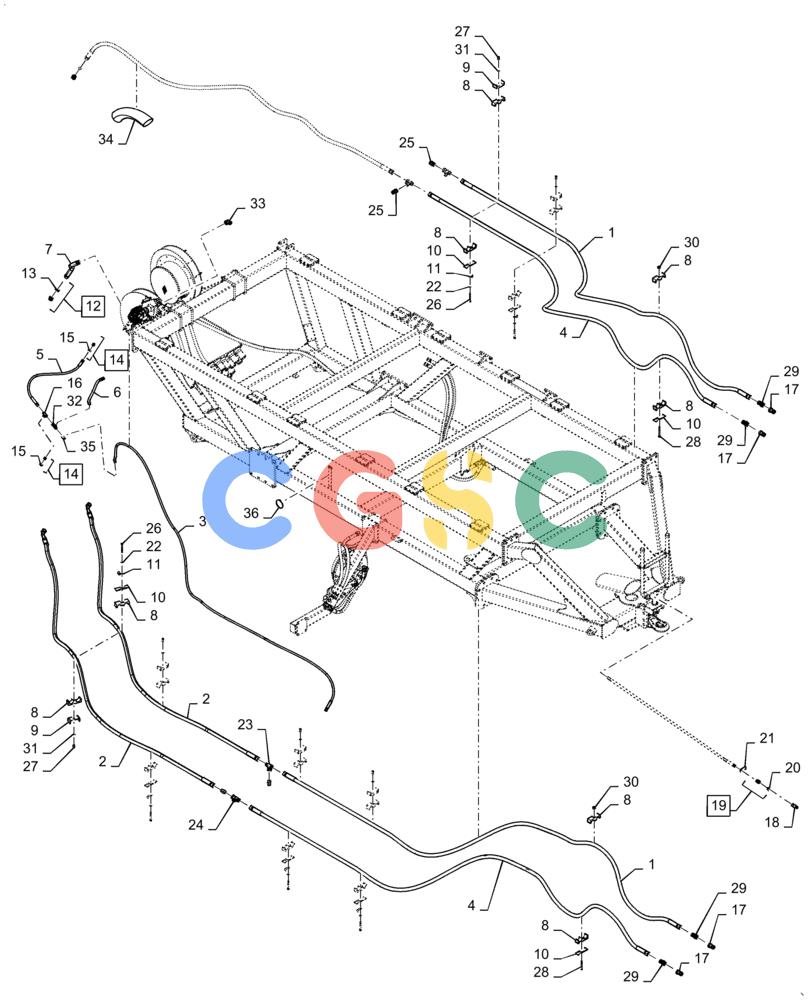

| 1. |
47709419
|
[2] |
HYDRAULIC HOSE,25mm ID x 6890mm L, SAE 100R17
|
SAS
|
| 2. |
47709420
|
[2] |
HYDRAULIC HOSE,25mm ID x 2910mm L, SAE 100R17
|
SAS
|
| 3. |
47709425
|
[1] |
HYDRAULIC HOSE,12.5mm ID x 9880mm L, SAE 100R17
|
SAS
|
| 4. |
47709424
|
[2] |
HYDRAULIC HOSE,25mm ID x 9490mm L, SAE 100R17
|
SAS
|
| 5. |
47709333
|
[1] |
HYDRAULIC HOSE,12.5mm ID x 1040mm L, SAE 100R17
|
SAS
|
| 6. |
47772006
|
[1] |
HYDRAULIC HOSE,12.5mm ID x 650mm L, SAE 100R17
|
SAS
|
| 7. |
47772008
|
[1] |
HYDRAULIC HOSE,25.4mm ID x 600mm L, SAE 100R17
|
SAS
|
| 8. |
47814282
|
[10] |
CLAMP,2 Hole, 35.7mm ID
|
SAS
Superseded by part number: 47891569
|
| 9. |
47744277
|
[8] |
MOUNT
|
SAS
Hydraulic Hose
|
| 10. |
87000231
|
[10] |
PLATE
|
GI
Cover
|
| 11. |
86637976
|
[5] |
CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type
|
FAR
|
| 12. |
86050292
|
[4] |
HYD CONNECTOR,1 5/16"-12, 37 Degree x7/8"-14, O-Ring
|
WIN
Incl 13
|
| 13. |
167269
|
[4] |
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
|
WIN
|
| 14. |
86509028
|
[2] |
HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB
|
NH
Incl 15
|
| 15. |
9617873
|
[2] |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
|
NH
|
| 16. |
86513015
|
[1] |
TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC
|
BHB
|
| 17. |
9358
|
[4] |
QUICK MALE COUPLING,1" - 11.5 NPTF
|
FLX
|
| 18. |
385358A1
|
[1] |
QUICK MALE COUPLING,3/8"
|
CAS
Superseded by part number: 87776273, 85999239
|
| 19. |
47727144
|
[1] |
HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 JIC
|
SAS
Incl 20
|
| 20. |
128825
|
[1] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
NH
|
| 21. |
47432848
|
[1] |
DECAL
|
SAS
Case Drain
|
| 22. |
86624184
|
[5] |
WASHER,9mm ID x 16mm OD x 1.6mm Thk
|
FOR
|
| 23. |
86513018
|
[1] |
TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br
|
WIN
|
| 24. |
9618946
|
[1] |
TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run
|
WIN
|
| 25. |
47724879
|
[2] |
CHECK VALVE,1-5/16" - 12 x 1-5/16" - 12, 5 PSI
|
SAS
|
| 26. |
331175
|
[8] |
BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8
|
PA
Superseded by part number: Z1232960
|
| 27. |
47728119
|
[8] |
NUT,M8 x 1.25, 24mm L
|
SAS
|
| 28. |
43133
|
[2] |
BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8
|
NH
|
| 29. |
47708521
|
[4] |
HYD CONNECTOR,1-5/16" - 12 JIC x 1" - 11.5 NPTF
|
SAS
|
| 30. |
68841
|
[2] |
NUT,M8 x 1.25, Cl 8
|
BER
Superseded by part number: 16104414
|
| 31. |
84359103
|
[8] |
NUT,Push On, M8
|
BRR
|
| 32. |
86511870
|
[1] |
TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC
|
ZED
|
| 33. |
86512961
|
[1] |
45 ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw
|
WIN
|
| 34. |
87502709
|
[1] |
PROTECTIVE SLEEVE,2-1/2" OD x 18" L
|
RAC
|
| 35. |
248974
|
[1] |
90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw
|
BHB
|
| 36. |
289862C1
|
[2] |
CABLE TIE,3/16" x 7"
|
IH
Superseded by part number: 529070
|
