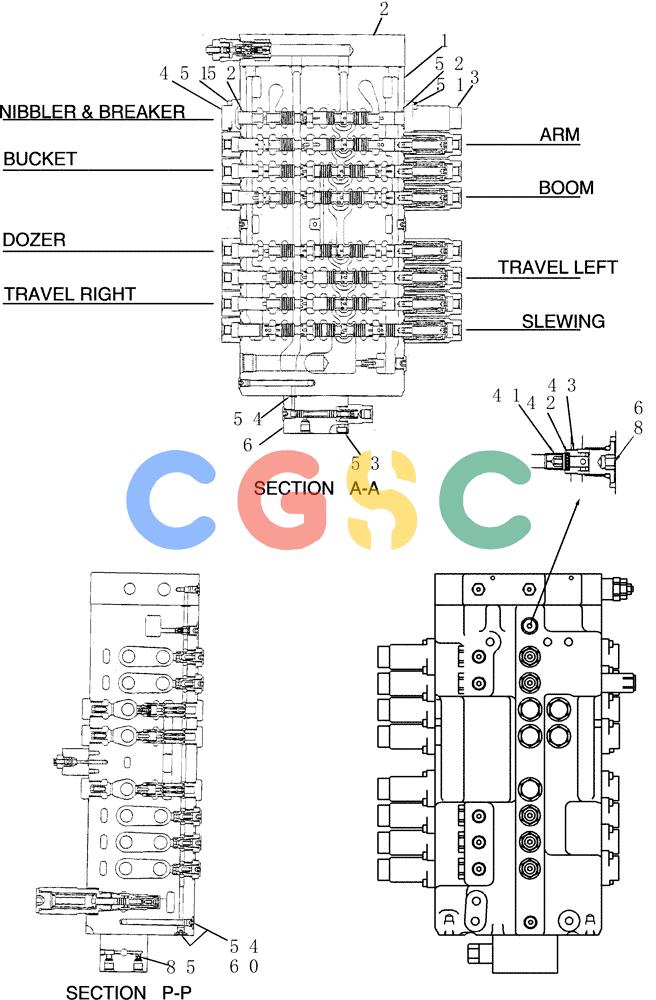

| . . | YT30V00039F1 | [1] | CONTROL VALVE | KOBAssy, Control (main) Superseded by part number: YT30V00047F1 |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONHousing |
| 2. | YT30V00039S002 | [1] | COVER | KOBCover |
| 3. | YT30V00039S003 | [8] | COVER | KOB |
| 4. | YT30V00039S004 | [8] | COVER | KOB |
| 5. | YT30V00048F1 | [2] | VALVE | KOBValve, Control (See HC020) |
| 6. | YT30V00049F1 | [1] | VALVE | KOBValve, Selector (See HC021) |
| 7. | YT30V00050F1 | [1] | SELECTOR | KOBValve, Selector (See HC022) |
| 8. | YT30V00051F1 | [1] | VALVE | KOBValve, Control, Flow (See HC023) |
| 10. | YT21V00006F1 | [1] | CHECK VALVE | KOBValve, Check (See HC027) |
| 11. | YT21V00005F1 | [5] | CHECK VALVE | KOBValve, Check (See HC026) |
| 19. | YT30V00039S019 | [1] | FLANGE | KOBFlange |
| 20. | YT22V00017F1 | [1] | HYDRAULIC VALVE | KOBValve, Relief (See HC029) |
| 21. | YT22V00016F1 | [8] | VALVE, PRESSURE RELI | KOBEF Valve, Relief (See HC028) |
| 22. | YT22V00016F2 | [2] | VALVE, PRESSURE RELI | KOBEF Valve, Relief vHC028) |
| 23. | YT30V00039S023 | [8] | CAP | KOB |
| 24. | YT30V00039S024 | [18] | O-RING | KOB |
| 25. | 2436U2716S20 | [8] | SPRING | KOB |
| 26. | YT30V00039S026 | [8] | CHECK CONTROL | KOBPoppet |
| 27. | YT30V00039S027 | [2] | PLUG | KOB |
| 28. | YT30V00039S028 | [2] | SPOOL | KOB |
| 29. | YT30V00039S029 | [3] | SPRING | KOB |
| 30. | YT30V00039S030 | [3] | CHECK CONTROL | KOBPoppet |
| 31. | YT30V00039S031 | [3] | SPRING | KOB |
| 32. | YT30V00039S032 | [3] | CAP | KOB |
| 33. | YT30V00039S033 | [8] | CAP | KOB |
| 34. | YT30V00039S034 | [4] | CAPTIVE WASHER SCREW | KOBCapscrew |
| 35. | YT30V00039S035 | [5] | SPOOL | KOB |
| 36. | YT30V00039S036 | [1] | SPRING | KOB |
| 37. | YT30V00039S037 | [3] | SPRING | KOB |
| 38. | YT30V00039S038 | [1] | PLUG | KOBAssy |
| 39. | YT30V00039S039 | [2] | PLUG | KOBAssy |
| 40. | YT30V00039S040 | [2] | PLUG | KOBAssy |
| 41. | YT30V00039S041 | [1] | PLUG | KOB |
| 42. | YT30V00039S042 | [1] | FILTER | KOB |
| 43. | YT30V00039S043 | [2] | GUIDE | KOBCover |
| 44. | YT30V00039S044 | [2] | SPRING | KOB |
| 45. | YT30V00039S045 | [2] | POPPET | KOB |
| 46. | ZS23C08060 | [8] | SCREW,Hex Socket Head, M8 x 60mm | KOBCap |
| 47. | ZS23C08070 | [4] | SCREW,Hex Socket Head, M8 x 70mm | KOBCap |
| 48. | YT30V00039S048 | [1] | PLUG | KOBPlug |
| 49. | YT22V00012S004 | [3] | PLUG | KOB |
| 50. | ZS23C10050 | [4] | SCREW,Hex Socket Head, M10 x 50mm | KOBCap |
| 51. | ZS28C06020 | [32] | SCREW,Hex Socket Head, M6 x 20mm | KOBCap |
| 52. | PY30V00001S026 | [16] | O-RING | KOBO-ring |
| 53. | ZS23C08055 | [4] | CAPSCREW,Hex Socket Head, M8 x 55mm | KOBSCREW Cap |
| 54. | ZD12P00800 | [16] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB |
| 55. | ZD12P01800 | [28] | O-RING | KOB |
| 56. | ZD12P01000 | [2] | O-RING | KOB |
| 57. | ZD12P01400 | [1] | O-RING | KOB |
| 58. | ZD12P02200 | [2] | O-RING | KOB |
| 59. | YT30V00042S022 | [7] | CAP | KOBCap |
| 60. | 2436U1309S29 | [11] | CAP | KOB |
| 61. | 2437U283S42 | [1] | PLUG | KOB |
| 62. | ZD12P02290 | [1] | O-RING | KOB |
| 63. | LS30V00002S044 | [1] | BACK-UP RING | KOB Superseded by part number: ZD85P02000 |
| 64. | ZD12P01100 | [24] | O-RING | KOB |
| 65. | ZD85P01800 | [1] | RING | KOBBack Up |
| 66. | LS30V00002S046 | [1] | O-RING | KOB Superseded by part number: ZD12P02000 |
| 67. | ZD85P01100 | [15] | BACK-UP RING | KOB |
| 68. | YT30V00039S068 | [8] | GUIDE | KOB |
| 69. | YT30V00039S069 | [4] | SPRING | KOB |
| 70. | YT30V00039S070 | [8] | SPACER | KOB |
| 71. | YT30V00039S071 | [8] | CAP | KOB |
| 72. | YT30V00039S072 | [8] | SPACER | KOB |
| 80. | YT30V00039S080 | [2] | CHECK CONTROL | KOBPoppet |
| 81. | YT30V00039S081 | [2] | CAP | KOB |
| 82. | YT30V00039S082 | [2] | SPRING | KOB |
| 83. | ZD11P01000 | [2] | O-RING | KOB |
| 84. | ZD85P01000 | [4] | RING, SNAP | KOBSNAP RING Back Up |
| 85. | YT30V00039S085 | [1] | PLUG | KOBPlug |
| 86. | 2436U1309S41 | [9] | CAP | KOB |
| 87. | ZD12P02100 | [1] | O-RING,2.4mm Thk x 20.8mm ID, 90 Duro | KOBO-ring |
| 88. | PY30V00001S028 | [4] | SPRING | KOBSpring |
| 89. | YT30V00039S089 | [5] | PLUG | KOB |
| 90. | YT30V00039S090 | [1] | CHECK CONTROL | KOBValve, Check |
| 91. | YT30V00039S091 | [1] | CHECK CONTROL | KOBValve, Check |
| 92. | 2436U1514S38 | [1] | O-RING | KOBO-ring |
| 93. | YT30V00039S093 | [1] | SPOOL | KOBSpool |
| 94. | YT30V00039S094 | [1] | SPRING | KOBSpring |
| 95. | YT30V00039S095 | [2] | SPACER | KOBSpacer |
| . . | YT30V00039R100 | [1] | SPOOL | KOBRepair Kit Consists Of Item 68x1, 69x1, 70x1 |
| . . | YT30V00039R200 | [2] | SPOOL | KOBRepair Kit Consists Of Item 68x1, 70x1, 71x1 |
| . . | YT30V00039R300 | [1] | SPOOL | KOBRepair Kit Consists Of Item 68x1, 70x1, 71x1 Superseded by part number: YT30V00047R200 |
| . . | YT30V00039R400 | [1] | SPOOL | KOBRepair Kit Consists Of Item 68x1, 69x1, 70x1 |
| . . | YT30V00039R500 | [1] | SPOOL | KOBRepair Kit Consists Of Item 68x1, 69x1, 70x1 |
| . . | YT30V00039R600 | [1] | SPOOL | KOBRepair Kit Consists Of Item 68x1, 69x1, 70x1 |
| . . | YT30V00039R700 | [1] | SPOOL | KOBRepair Kit Consists Of Item 68x1, 70x1, 71x1 |
