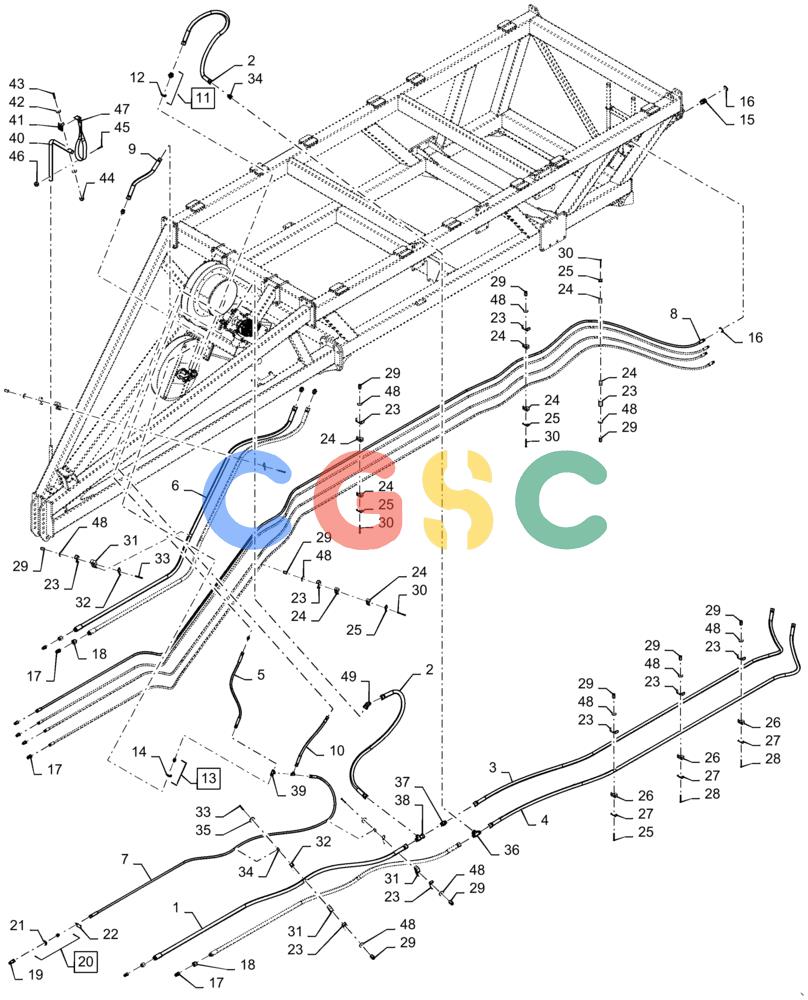

| 1. |
47709330
|
[2] |
HYDRAULIC HOSE,25mm ID x 3340mm L, SAE 100R17
|
SAS
|
| 2. |
47709331
|
[2] |
HYDRAULIC HOSE,25mm ID x 1780mm L, SAE 100R17
|
SAS
|
| 3. |
47709380
|
[1] |
HYDRAULIC HOSE,19mm ID x 5405mm L, SAE 100R17
|
SAS
|
| 4. |
47709379
|
[1] |
HYDRAULIC HOSE,19mm ID x 5375mm L, SAE 100R17
|
SAS
|
| 5. |
47709333
|
[1] |
HYDRAULIC HOSE,12.5mm ID x 1040mm L, SAE 100R17
|
SAS
|
| 6. |
47709334
|
[2] |
HYDRAULIC HOSE,25mm ID x 4050mm L, SAE 100R17
|
SAS
|
| 7. |
47709335
|
[1] |
HYDRAULIC HOSE,12.5mm ID x 4000mm L, SAE 100R17
|
SAS
|
| 8. |
47709392
|
[4] |
HYDRAULIC HOSE,12.5mm ID x 11480mm L, SAE 100R17
|
SAS
|
| 9. |
47772008
|
[1] |
HYDRAULIC HOSE,25.4mm ID x 600mm L, SAE 100R17
|
SAS
|
| 10. |
47772006
|
[1] |
HYDRAULIC HOSE,12.5mm ID x 650mm L, SAE 100R17
|
SAS
|
| 11. |
86050292
|
[4] |
HYD CONNECTOR,1 5/16"-12, 37 Degree x7/8"-14, O-Ring
|
WIN
Incl 12
|
| 12. |
167269
|
[4] |
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
|
WIN
|
| 13. |
86509028
|
[2] |
HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB
|
NH
Incl 14
|
| 14. |
9617873
|
[2] |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
|
NH
|
| 15. |
47611343
|
[4] |
COUPLING, QUICK, FEM
|
SAS
|
| 16. |
82854996
|
[8] |
SNAP RING,1 1/2", Ext
|
BAS
|
| 17. |
9412
|
[8] |
QUICK MALE COUPLING
|
FLX
Superseded by part number: 9801618
|
| 18. |
21668
|
[4] |
REDUCER FITTING,1/2" - 14 Male NPT x 3/4" - 14 Female NPT
|
FLX
|
| 19. |
385358A1
|
[1] |
QUICK MALE COUPLING,3/8"
|
CAS
Superseded by part number: 87776273, 85999239
|
| 20. |
81827427
|
[1] |
HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB
|
A
Incl 21 Superseded by part number: 86301S36
|
| 21. |
128825
|
[1] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
NH
|
| 22. |
47432848
|
[1] |
DECAL
|
SAS
Case Drain
|
| 23. |
47744277
|
[14] |
MOUNT
|
SAS
Hydraulic Hose
|
| 24. |
6560407
|
[14] |
CLAMP,2 Hole, 18mm ID
|
BER
|
| 25. |
87000230
|
[7] |
PLATE
|
GI
Cover
|
| 26. |
1758367
|
[3] |
HOSE CLIP,2 Hole, 28mm ID
|
BER
|
| 27. |
1186005
|
[3] |
PLATE
|
BER
Cover Superseded by part number: 4135286
|
| 28. |
120061
|
[3] |
BOLT,Hex, M8 x 60mm L, Cl 8.8
|
NH
|
| 29. |
47728119
|
[14] |
NUT,M8 x 1.25, 24mm L
|
SAS
|
| 30. |
86508571
|
[7] |
BOLT,Hex, M8 x 90mm, Cl 8.8
|
NH
|
| 31. |
47814282
|
[4] |
CLAMP,2 Hole, 35.7mm ID
|
SAS
Superseded by part number: 47891569
|
| 32. |
87000231
|
[4] |
PLATE
|
GI
Cover
|
| 33. |
331175
|
[4] |
BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8
|
PA
Superseded by part number: Z1232960
|
| 34. |
86637976
|
[2] |
CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type
|
FAR
|
| 35. |
86624184
|
[2] |
WASHER,9mm ID x 16mm OD x 1.6mm Thk
|
FOR
|
| 36. |
86513018
|
[1] |
TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br
|
WIN
|
| 37. |
47724879
|
[2] |
CHECK VALVE,1-5/16" - 12 x 1-5/16" - 12, 5 PSI
|
SAS
|
| 38. |
9618946
|
[1] |
TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run
|
WIN
|
| 39. |
86511870
|
[2] |
TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC
|
ZED
|
| 40. |
47736698
|
[1] |
TUBE
|
SAS
Front Hitch Hydraulic
|
| 41. |
364318A1
|
[1] |
ANCHOR
|
FLX
Strap
|
| 42. |
140018
|
[2] |
WASHER,13.5mm ID x 24mm OD x 2.5mm Thk
|
NH
Superseded by part number: 87364
|
| 43. |
9706717
|
[1] |
BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8
|
NH
|
| 44. |
100038
|
[1] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 45. |
120070
|
[1] |
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
|
NH
|
| 46. |
100037
|
[1] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 47. |
84566648
|
[1] |
SECURING STRAP
|
SAS
|
| 48. |
84359103
|
[14] |
NUT,Push On, M8
|
BRR
|
| 49. |
86512961
|
[1] |
45 ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw
|
WIN
|
