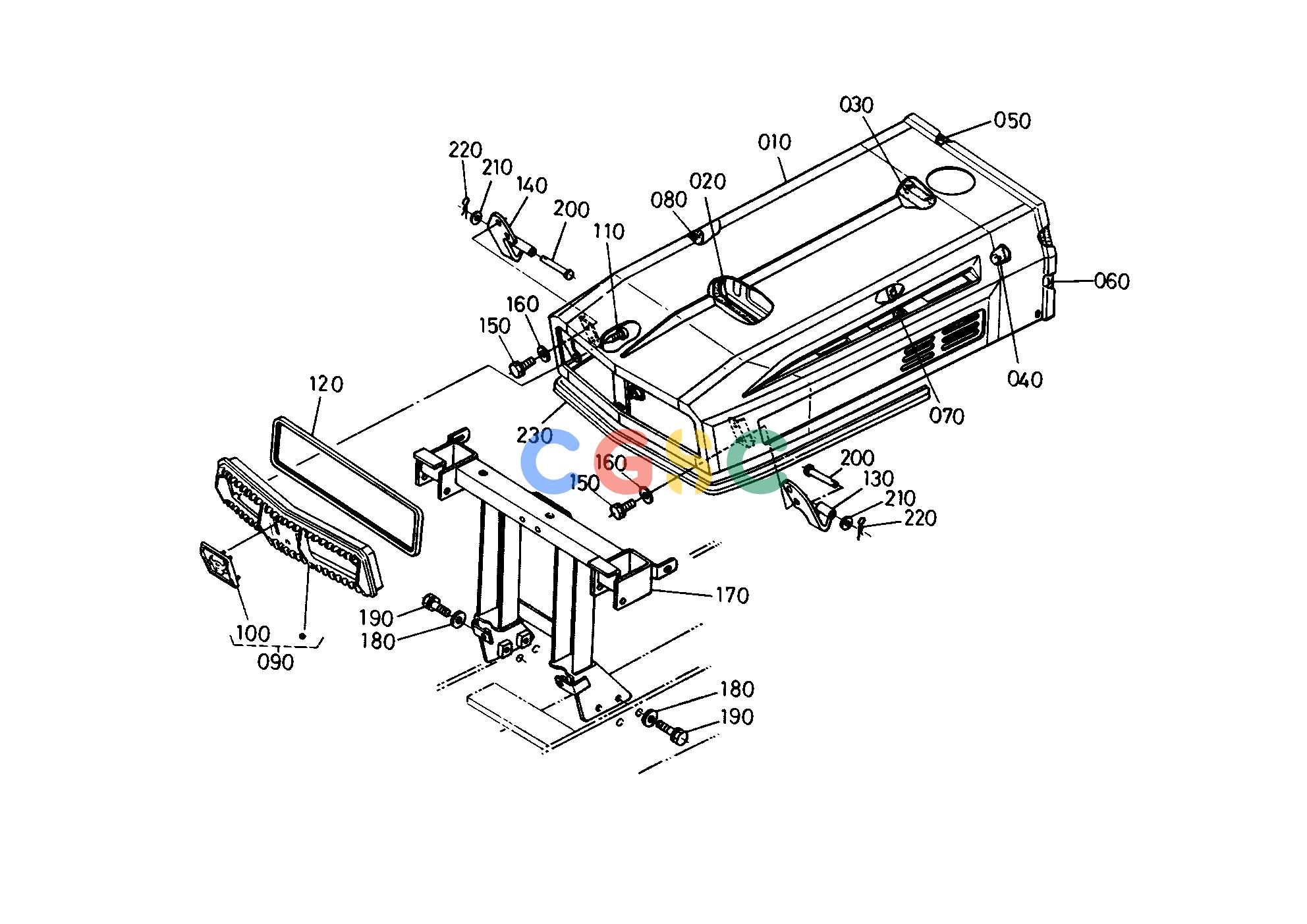

久保田零件查询T03500 HOOD HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
246 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6706154100
|
[1] |
COMP.BONNET
|
15.1800(lbs); 6.900
|
| 020. |
6751154170
|
[1] |
TAPE
|
0.0176(lbs); 0.008
|
| 030. |
6721154120
|
[1] |
TAPE
|
0.0110(lbs); 0.005
|
| 040. |
6706154130
|
[2] |
TAPE
|
0.0220(lbs); 0.010
|
| 050. |
6751154150
|
[1] |
TAPE SOFT UPPER
|
0.0220(lbs); 0.010
|
| 060. |
6751154160
|
[2] |
TAPE SOFT SIDE
|
0.0220(lbs); 0.010
|
| 070. |
6751154110
|
[1] |
TAPE
|
0.0220(lbs); 0.010
|
| 080. |
6751154120
|
[1] |
TAPE
|
0.0066(lbs); 0.003
|
| 090. |
6740154200
|
[1] |
ASSY GRILLE LIGHT
|
0.5720(lbs); 0.260
|
| 100. |
6711154240
|
[1] |
MASCOT
|
0.0440(lbs); 0.020
|
| 110. |
3824018230
|
[6] |
SCREW
|
0.0110(lbs); 0.005
|
| 120. |
6740154220
|
[1] |
GASKET
|
0.0594(lbs); 0.027
|
| 130. |
6771154260
|
[1] |
METAL RH
|
0.7260(lbs); 0.330
|
| 140. |
6706154270
|
[1] |
METAL LH
|
0.7700(lbs); 0.350
|
| 150. |
0112051020
|
[4] |
BOLT
|
0.0440(lbs); 0.020
|
| 160. |
0401350100
|
[4] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 170. |
6630154714
|
[1] |
HOLDER HOOD
|
0.0000(lbs); 0.000
|
| 180. |
0401350100
|
[4] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 190. |
0113351025
|
[4] |
BOLT
|
0.0506(lbs); 0.023
|
| 200. |
0512250855
|
[2] |
PIN JOINT
|
0.0484(lbs); 0.022
|
| 210. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 220. |
0551550800
|
[2] |
PIN SNAP
|
0.0022(lbs); 0.001
|
| 230. |
6630154290
|
[1] |
TRIM
|
0.2860(lbs); 0.130
|
