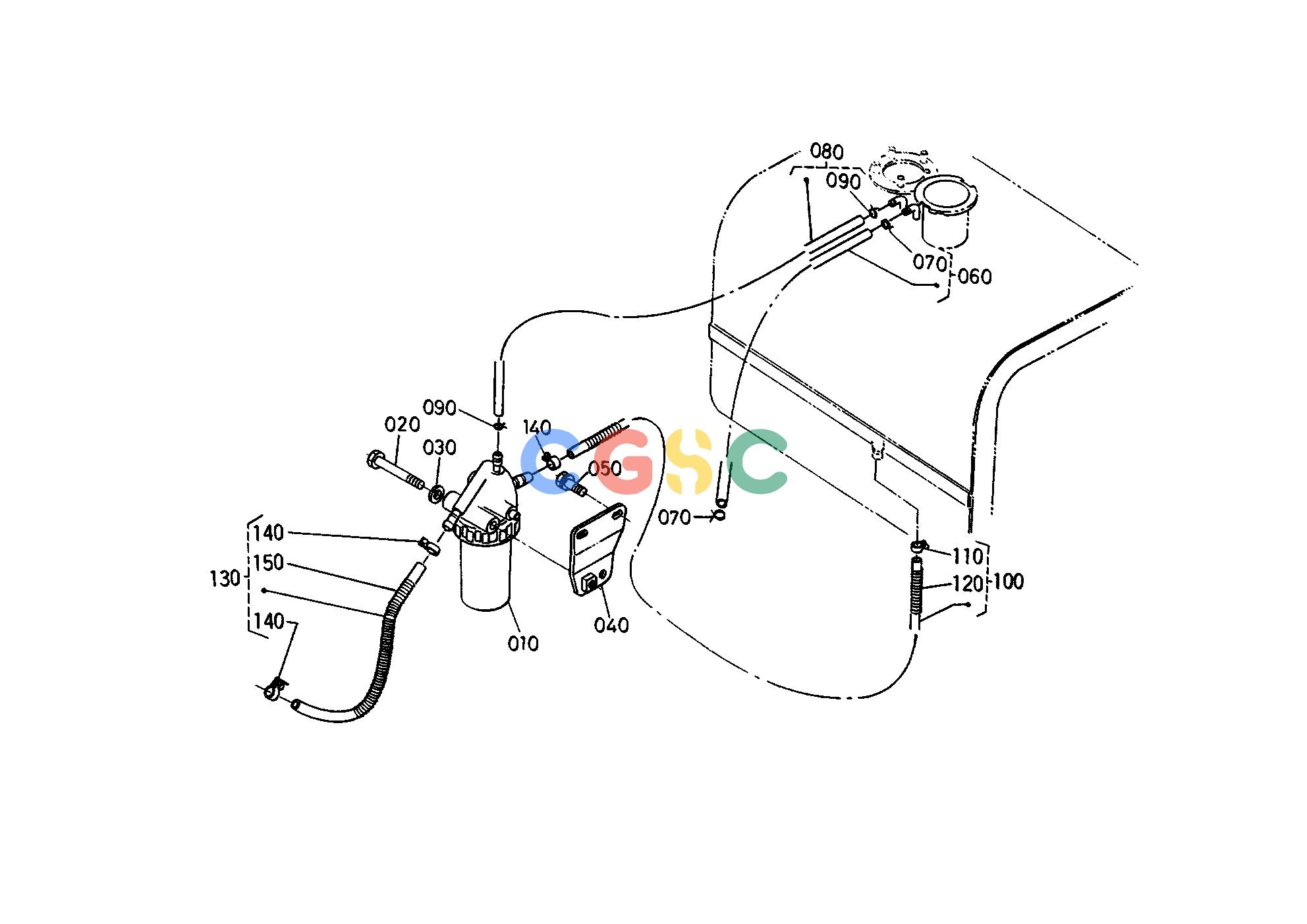

久保田零件查询T03900 FUEL FILTER FUEL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
286 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1575143010
|
[1] |
ASSY FILTER FUEL
|
0.9020(lbs); 0.410
|
| 020. |
0115050865
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 030. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 040. |
6706154310
|
[1] |
STAY FUEL
|
0.2200(lbs); 0.100
|
| 050. |
0112350818
|
[2] |
BOLT
|
0.0264(lbs); 0.012
|
| 060. |
6780053750
|
[1] |
ASSY PIPE OVER FLOW
|
0.0440(lbs); 0.020
|
| 070. |
1024442320
|
[2] |
CLIP PIPE
|
0.0022(lbs); 0.001
|
| 080. |
6721158323
|
[1] |
ASSY PIPE OVER FLOW
|
0.0660(lbs); 0.030
|
| 090. |
1024442320
|
[2] |
CLIP PIPE
|
0.0022(lbs); 0.001
|
| 100. |
6721158340
|
[1] |
ASSY PIPE FUEL
|
0.0000(lbs); 0.000
|
| 110. |
1430142750
|
[2] |
CLIP PIPE
|
0.0110(lbs); 0.005
|
| 120. |
6711158320
|
[1] |
SPRING PIPE PROTECT.
|
0.0440(lbs); 0.020
|
| 130. |
6706158350
|
[1] |
ASSY PIPE FUEL
|
0.0880(lbs); 0.040
|
| 140. |
1430142750
|
[2] |
CLIP PIPE
|
0.0110(lbs); 0.005
|
| 150. |
6711153790
|
[1] |
SPRING PIPE PROTECT.
|
0.0220(lbs); 0.010
|
