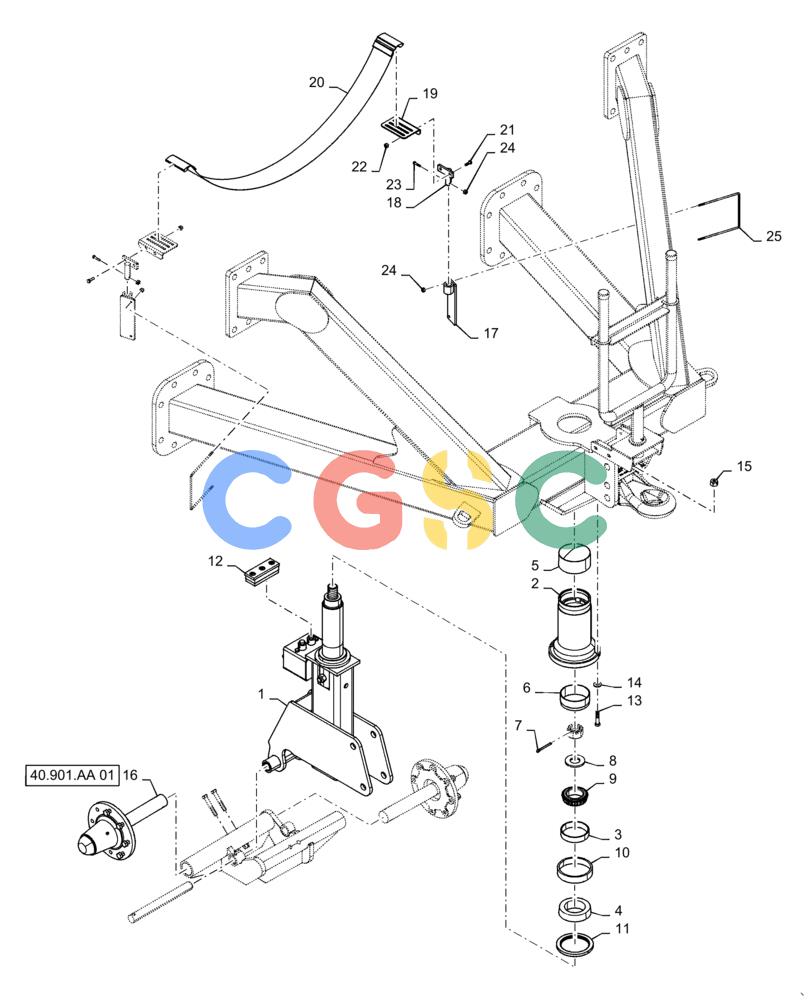

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (39.130.AH[01]) - FRONT CASTER PIVOT TOW BEHIND 350 /435/460 BUSHELL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
226 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
GL-180A
|
[1] |
HOUSING
|
SAS
Dual Caster
|
| 2. |
87506211
|
[1] |
PIVOT
|
SAS
Fork
|
| 3. |
3304
|
[1] |
BEARING CUP
|
FLX
Superseded by part number: 510892
|
| 4. |
5769
|
[1] |
ROLLER BEARING
|
FLX
Cone Superseded by part number: 612200
|
| 5. |
300767A1
|
[1] |
CAP
|
CAS
End
|
| 6. |
87561762
|
[1] |
ADAPTER
|
SAS
Ring
|
| 7. |
80752
|
[1] |
COTTER PIN,1/4" x 2 1/2"
|
BHB
|
| 8. |
CC-109
|
[1] |
WASHER
|
FLX
|
| 9. |
3984
|
[1] |
CONE
|
IH
Bearing Superseded by part number: NLS, NLS, ST2007A
|
| 10. |
5768
|
[1] |
BEARING CUP
|
FLX
Superseded by part number: 754565
|
| 11. |
5765
|
[1] |
SEAL
|
FLX
Bearing
|
| 12. |
GL-438A
|
[1] |
BRAKE PAD
|
SAS
|
| 13. |
9706693
|
[2] |
BOLT,M12 x 60mm, Cl 8.8
|
NH
|
| 14. |
86625254
|
[2] |
WASHER,13.5mm ID x 28mm OD x 2.5mm Thk
|
FAR
|
| 15. |
100038
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 16. |
87436722
|
[2] |
HUB
|
SAS
Spindle Assy
|
| 17. |
47752385
|
[2] |
BRACKET
|
SAS
Front Strap
|
| 18. |
47752388
|
[2] |
PIVOT
|
SAS
Front Strap
|
| 19. |
87647049
|
[2] |
PLATE
|
SAS
Strap Anchor
|
| 20. |
87660684
|
[1] |
STRAP
|
SAS
Tank
|
| 21. |
43127
|
[4] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 22. |
68841
|
[4] |
NUT,M8 x 1.25, Cl 8
|
BER
Superseded by part number: 16104414
|
| 23. |
43117
|
[2] |
SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8
|
NH
Superseded by part number: 87317695
|
| 24. |
353308
|
[6] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 25. |
47753612
|
[2] |
U-BOLT
|
SAS
M6
|
