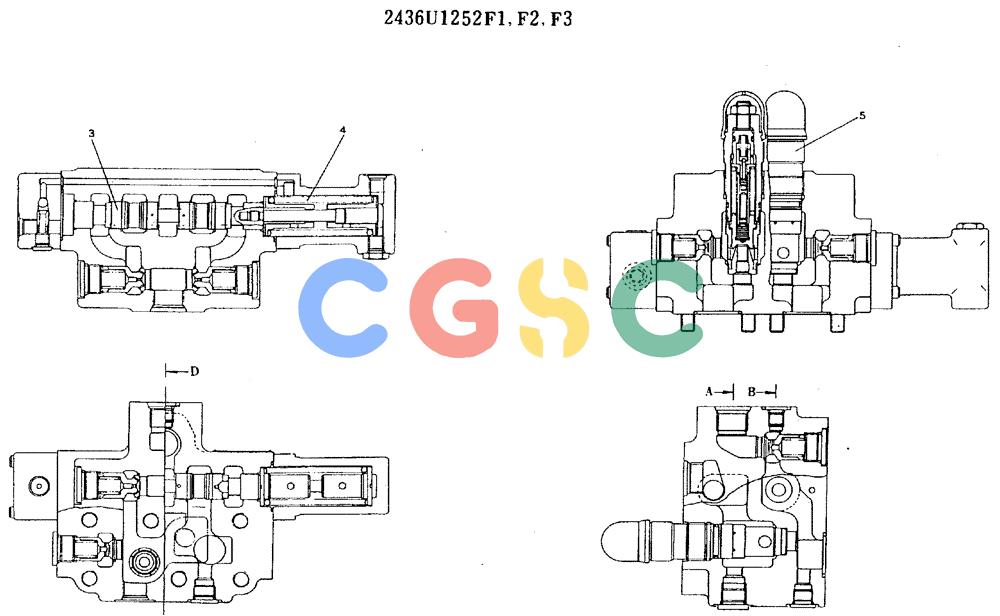

神钢零件查询(MD200BLC) - EXCAVATOR ASN YQU0001 (1/80-12/06) (11-009[02]) - VALVE ASSY, CONTROL (SWING) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
316 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1252F1 | [1] | VALVE ASSY CONTROL, (SWING) CONSISTS OF THE FOLLOWING PARTS | VALVE ASSY CONTROL, (SWING) CONSISTS OF THE FOLLOWING PARTS |
| . . | 2436U1252F2 | [1] | X | KOBCONTROL, (SWING) CONSISTS OF THE FOLLOWING PARTS |
| . . | 2436U1252F3 | [1] | X | KOBCONTROL, (SWING) CONSISTS OF THE FOLLOWING PARTS |
| 1. | 2436R727F4 | [1] | VALVE PRESSURE RELIE | KOBF2 ONLY, SEE FIGURE 11-004 |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING, F2 ONLY |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL, F3 ONLY |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING, F3 ONLY |
| 5. | 2436R727F5 | [1] | VALVE | KOBF3 ONLY, SEE FIGURE 11-004 |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONCASING |
| 151. | 2436U1165S154 | [2] | PLUG | KOB |
| 152. | 2441U732S461 | [1] | PLUG | KOBPLUG Superseded by part number: 2436U2080S8 |
| 153. | 2436U1219S153 | [1] | PLUG | KOB |
| 161. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 162. | 2436U665S262 | [2] | O-RING | KOB Superseded by part number: 2436U1457S162 |
| 163. | ZD12P00700 | [2] | O-RING,1.6mm Thk x 6.8mm ID, 90 Duro | KOBO-Ring -- ID 06.80 ± 0.16 x OD 10mm |
| 164. | ZD12P01400 | [2] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 165. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 166. | ZD12P01100 | [2] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 171. | ZS23C12110 | [6] | SCREW,Hex Socket Head, M12 x 110mm | KOBM12x1.75x110mm Superseded by part number: ZS28C12110 |
| 201. | 2436U1745S201 | [1] | COVER, SPRING | |
| 202. | NSS | [1] | NOT SOLD SEPARAT | CONCOVER, VALVE |
| 211. | NSS | [1] | NOT SOLD SEPARAT | CONBALL |
| 231. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 251. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 253. | 2441U722S466 | [1] | PLUG | KOB Superseded by part number: 2441U667S466 |
| 261. | NSS | [1] | NOT SOLD SEPARAT | CONO-RING |
| 271. | ZS23C06025 | [4] | SCREW,Hex Socket Head, M6 x 25mm | KOBM06x1.0x25mm |
| 272. | ZS23C06040 | [4] | SCREW,Hex Socket Head, M6 x 40mm | KOBM06x1.0x40mm |
| 301. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL, F1, F2 ONLY |
| 321. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING, F1, F2 ONLY |
| 331. | NSS | [2] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 332. | NSS | [1] | NOT SOLD SEPARAT | CONBOLT, SPACER |
| 511. | NSS | [3] | NOT SOLD SEPARAT | CONPOPPET |
| 512. | NSS | [2] | NOT SOLD SEPARAT | CONPOPPET |
| 521. | NSS | [3] | NOT SOLD SEPARAT | CONSPRING |
| 522. | NSS | [2] | NOT SOLD SEPARAT | CONSPRING |
| 551. | NSS | [5] | NOT SOLD SEPARAT | CONPLUG |
| 561. | NSS | [5] | NOT SOLD SEPARAT | CONO-RING |
| 601. | 2436R727F3 | [2] | VALVE PRESSURE RELIE | KOBF1 ONLY, SEE FIGURE 11-004 |
| 901. | NSS | [1] | NOT SOLD SEPARAT | CONNAME-PLATE |
| . . | 2436U1252R100 | [1] | REPAIR KIT | KOB |
| . . | 2436U1252R200 | [1] | N/A REPAIR KIT | N/A REPAIR KIT |
| . . | 2436U1252R300 | [1] | REPAIR KIT | KOB |
| . . | 2436U1252R400 | [1] | REPAIR KIT | REPAIR KIT |
