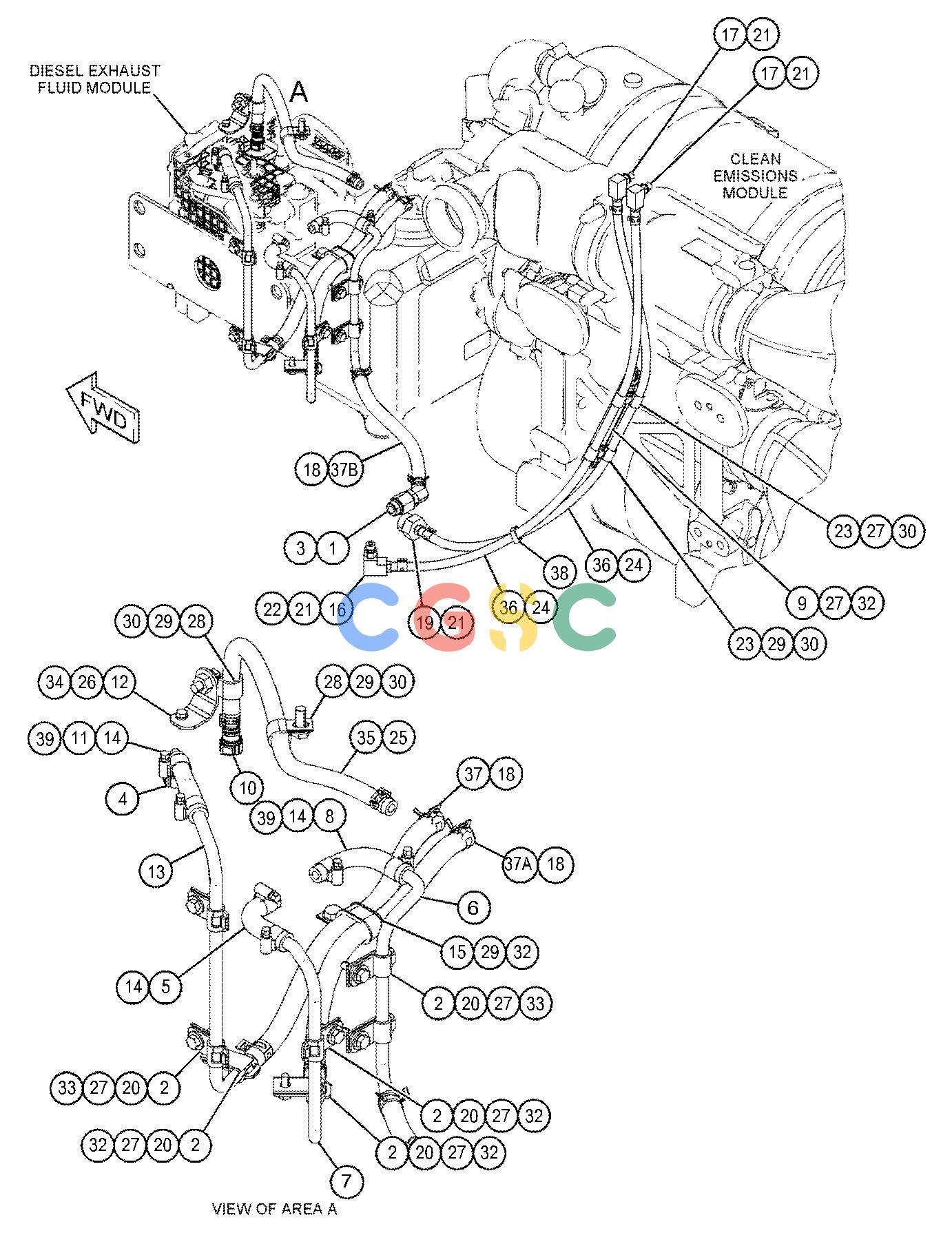

卡特零件查询（730C2） 398-6108: LINES GP-COOLING
广数供应链运营团队, 15 02月, 2025，浏览：
535 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 241-6202 | [1] | ADAPTER AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 219-8136 | [1] | ADAPTER | |
| 2. | 344-1950 | [7] | CLIP(SLOT) | |
| 3. | 347-4437 | [1] | ADAPTER AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 347-4436 | [1] | ADAPTER-ELBOW | |
| 4. | 365-0162 | [1] | CONNECTOR-SPECIAL | |
| 5. | 510-4953 | [1] | HOSE | |
| 6. | 398-4686 | [1] | TUBE | |
| 7. | 416-6932 | [1] | TUBE | |
| 8. | 510-4952 | [1] | HOSE | |
| 9. | 421-9627 | [1] | BRACKET AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 10. | 422-9296 | [1] | CONNECTOR-SPECIAL | |
| 11. | 510-4954 | [1] | HOSE | |
| 12. | 427-0000 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 13. | 445-1386 | [1] | TUBE | |
| 14. | 520-7003 | [4] | CLAMP | |
| 15. | 343-2388 | [1] | CLIP | |
| 16. | 241-6217 | [1] | ELBOW | |
| 17. | 287-7341 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 124-8909 | [1] | ELBOW | |
| 18. | 312-0288 | [6] | CLAMP | |
| 19. | 326-0314 | [1] | CONNECTOR AS | |
| | 4K-1388 | [1] | SEAL-O-RING | |
| | 326-0313 | [1] | CONNECTOR | |
| 20. | 344-1951 | [7] | CLIP(TAB) | |
| 21. | 351-0271 | [4] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-9027 | [1] | SEAL-O-RING | |
| | 310-5893 | [1] | CONNECTOR | |
| 22. | 3J-1907 | [1] | SEAL-O-RING | |
| 23. | 3U-2752 | [4] | CLIP(LOOP) | |
| 24. | 510-2512 | [4] | CLAMP | |
| 25. | 433-0933 | [2] | CLAMP | |
| 26. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| 27. | 5P-4116 | [9] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 28. | 8M-2773 | [2] | CLIP(LOOP) | |
| 29. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 30. | 8T-4136M | [5] | BOLT(M10X1.5X25-MM) | |
| 32. | 8T-4189M | [5] | BOLT(M8X1.25X20-MM) | |
| 33. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 34. | 9X-8256 | [1] | WASHER(6.6X12X2-MM THK) | |
| 35. | 6V-8523E | | HOSE(69-CM) | |
| 36. | 332-7785E | | HOSE(82-CM EACH) | |
| 37. | 9X-2133E | | HOSE(44-CM) | |
| 37A. | 9X-2133E | | HOSE(43-CM) | |
| 37B. | 9X-2133E | | HOSE(38-CM) | |
| 38. | 7K-1181 | [1] | STRAP-CABLE | |
| 39. | 520-7002 | [2] | CLAMP | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
