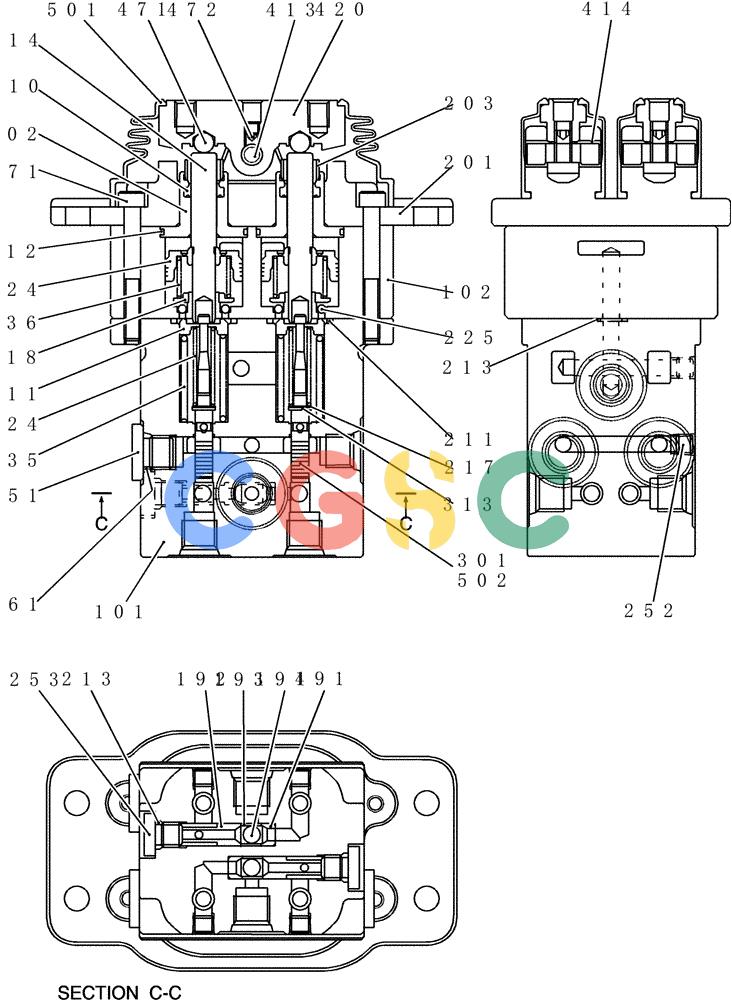

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (HC820[1]) - VALVE ASSY, PILOT (PROPELLING) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
654 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN30V00070F1 | [1] | VALVE | KOBAssy, Pilot (propelling) Superseded by part number: YN30V00070F2 |
| . . | YN30V00070F2 | [1] | PILOT VALVE | KOBValve Assy, Pilot (propelling) |
| 101. | NSS | [1] | NOT SERVICED SEPARATELY | CONBody |
| 192. | YN30V00070S192 | [2] | SEAT | KOB |
| 193. | YN30V00070S193 | [2] | BUSHING | KOB |
| 194. | 2441U729S511 | [2] | BALL | KOB |
| 201. | PM30V00019S201 | [2] | COVER | KOB |
| 202. | PM30V00019S202 | [4] | PLUG | KOB |
| 203. | PM30V00019S203 | [4] | CAP | KOB |
| 210. | PM30V00019S210 | [4] | PACKING | KOB |
| 211. | PM30V00019S211 | [4] | O-RING | KOB |
| 212. | YT30V00009S212 | [4] | O-RING | KOB |
| 213. | ZD12P00800 | [4] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB |
| 214. | EN30V00045S214 | [4] | ROD | KOBPush |
| 217. | EN30V00024S217 | [4] | SHIM | KOB |
| 218. | PM30V00019S218 | [4] | SPRING SEAT | KOBSpring |
| 225. | 2436U625S232 | [12] | BALL | KOB |
| 251. | YW30V00001S157 | [3] | PLUG | KOB |
| 252. | 2441U722S490 | [6] | PLUG | KOB |
| 253. | YN30V00001S158 | [2] | PLUG | KOB |
| 261. | ZD12P01100 | [3] | O-RING | KOB |
| 271. | PM30V00019S271 | [4] | CAPSCREW | KOBSCREW Cap |
| 311. | EN30V00045S311 | [4] | SEAT | KOBSpring |
| 313. | EN30V00024S313 | [4] | WASHER | KOB |
| 324. | YN30V00070S324 | [4] | SPRING | KOB |
| 335. | YN30V00070S335 | [4] | SPRING | KOB |
| 336. | PM30V00019S336 | [4] | SPRING | KOB |
| 414. | EN30V00045S414 | [4] | BUSHING | KOB |
| 501. | PM30V00019S501 | [2] | BOOT | KOB |
| . . | PM30V00019R100 | [1] | REPAIR KIT | KOBConsists Of Item 210x4, 211x4, 212x4 |
| . . | YN30V00070R200 | [1] | REPAIR KIT | KOBRepair Kit Consists Of Item 413x1, 420x1, 471x2 Superseded by part number: YN30V00070R300 |
