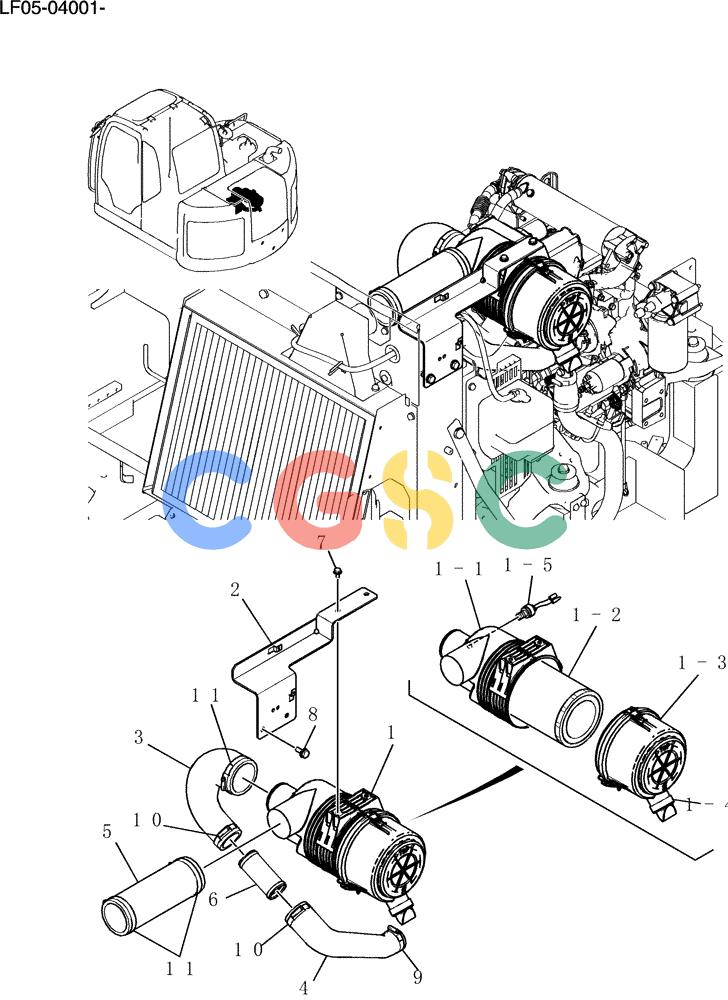

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (042-01[1]) - CLEANER ASSY, AIR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
436 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT11P00008F1 | [1] | Cleaner Assy, Air | |
| 1. | YT11P00009F1 | [1] | AIR CLEANER | KOBAssy Superseded by part number: YT11P00009F2 |
| 1-1. | YT11P00009S001 | [1] | BODY | KOBBody Assy |
| 1-2. | YT11P00009S002 | [1] | ELEMENT | KOBOuter Superseded by part number: 86982522 |
| 1-3. | YT11P00009S003 | [1] | COVER ASSY | KOB |
| 1-4. | YW11P00004S004 | [1] | VALVE | KOB |
| 1-5. | YR11P00008S005 | [1] | INDICATOR | KOB Superseded by part number: LV11P01017F1 |
| 2. | YT11P01023P2 | [1] | BRACKET | KOB |
| 3. | YT11P01017P1 | [1] | AIR HOSE | KOB |
| 4. | YT11P01018P1 | [1] | AIR HOSE | KOB |
| 5. | YT11P01019P1 | [1] | AIR HOSE | KOB |
| 6. | YT11P01021P1 | [1] | TUBE | KOB |
| 7. | ZM73C08016 | [2] | BOLT,M8x16mm - Course Thread | KOBSems |
| 8. | ZM73C10025 | [2] | BOLT,M10x25mm - Course Thread | KOBSems |
| 9. | ZC16X05100 | [1] | CLIP | KOB |
| 10. | ZC16X06100 | [2] | CLIP | KOB |
| 11. | ZC16X09100 | [3] | CLIP | KOB |
