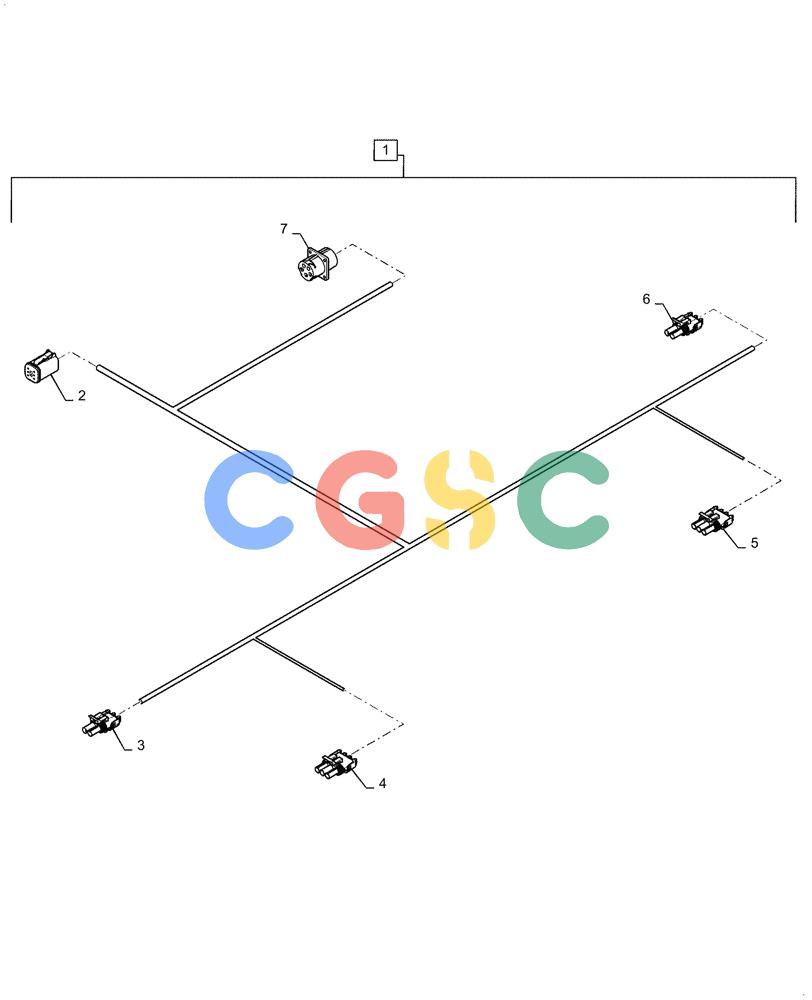

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (55.404.AC[03]) - TRANSPORTATION LIGHTING HARNESS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
520 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47649222
|
[1] |
WIRE HARNESS
|
SAS
Transportation Lighting Harness Incl 2-7
|
| 2. |
87694112
|
[1] |
ELEC CONNECTOR,Female, 6 Pole
|
NH
Module Superseded by part number: 225351C1
|
| 2. |
87695609
|
[6] |
ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2
|
NH
Superseded by part number: 900364
|
| 2. |
87694150
|
[1] |
LOCKING TAB,Wedge Lock
|
NH
Lock
|
| 2. |
84068583
|
[1] |
PLUG,12 - 16 Ga, White
|
ZED
Superseded by part number: 87695652
|
| 3. |
87692855
|
[1] |
CONTACT HOUSING,Male, 2 Cavities
|
BN
Left Warning
|
| 3. |
87692883
|
[2] |
CABLE TERMINAL
|
BAS
Male
|
| 3. |
87692875
|
[2] |
CABLE TERMINAL
|
BAS
Female
|
| 3. |
87686742
|
[2] |
PLUG
|
MKT
Cavity
|
| 4. |
87644909
|
[1] |
WIRE CONNECTOR,Female, 3 Pins
|
BN
Left Tail Light
|
| 7. |
87706918
|
[1] |
ELEC CONNECTOR
|
SAS
Transportation Bar Superseded by part number: 225222C1
|
| 7. |
87697947
|
[5] |
ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm
|
NH
Superseded by part number: 87695607
|
