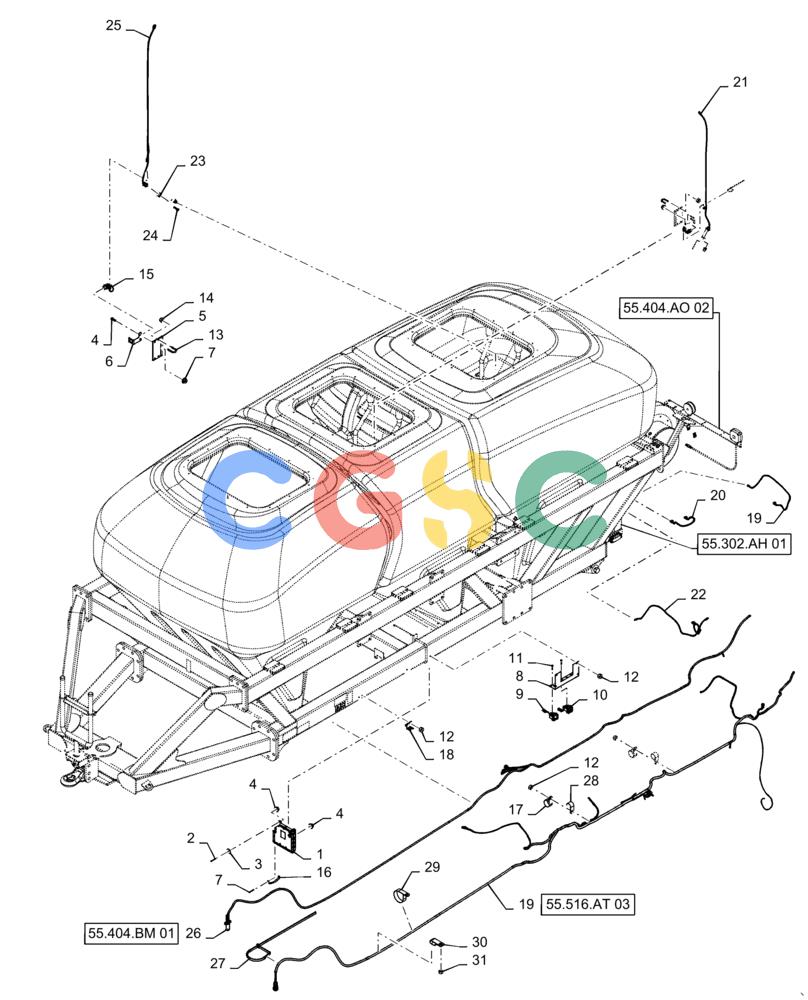

| 1. |
47632699
|
[1] |
ECU
|
SAS
UCM2, 12V, STD8
|
| 2. |
43117
|
[4] |
SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8
|
NH
Superseded by part number: 87317695
|
| 3. |
21675
|
[4] |
WASHER,0.28" ID x 0.63" OD x 0.05" Thk, SST
|
SAS
|
| 4. |
86619800
|
[12] |
FLANGE NUT,M6 x 1, Cl 8
|
RAC
|
| 5. |
47675200
|
[2] |
BRACKET
|
SAS
Aux Low Bin Sensor
|
| 6. |
47596275
|
[2] |
BRACKET
|
SAS
Low Bin Sensor
|
| 7. |
120100
|
[10] |
BOLT,M6 x 20mm, Cl 8.8
|
NH
|
| 8. |
47743845
|
[1] |
BRACKET
|
SAS
Switch Mount, Multiple
|
| 9. |
47739163
|
[1] |
TOGGLE SWITCH
|
SAS
Calibration
|
| 10. |
47737283
|
[2] |
TOGGLE SWITCH
|
SAS
Meter
|
| 11. |
8258
|
[3] |
SELF-TAP SCREW,Phillips Drive, Pan Head, #8 - 32 x 3/8"
|
FLX
|
| 12. |
68841
|
[8] |
NUT,M8 x 1.25, Cl 8
|
BER
Superseded by part number: 16104414
|
| 13. |
233381A1
|
[4] |
U-BOLT,M10 x 1.5 x 73mm, Carbon Steel
|
CAS
|
| 14. |
100037
|
[8] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 15. |
47625038
|
[2] |
SENSOR
|
SAS
Motion, Autoguidance Override
|
| 16. |
635541
|
[1] |
GROUND CABLE
|
NH
|
| 17. |
9827902
|
[6] |
CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type
|
WIN
|
| 18. |
47743844
|
[1] |
BRACKET
|
SAS
Scale Hanger
|
| 19. |
47625032
|
[1] |
WIRE HARNESS
|
SAS
350 Bushel Tow Behind Cart
|
| 20. |
47625040
|
[1] |
CABLE
|
SAS
Negative, Inter Battery
|
| 21. |
47846498
|
[1] |
CABLE
|
SAS
Negative Battery
|
| 22. |
47846499
|
[1] |
CABLE
|
SAS
Positive Battery
|
| 23. |
51200017
|
[2] |
GASKET,25.4mm ID x 1.6mm Thk
|
FLX
Rubber
|
| 24. |
5452
|
[8] |
RIVET,Pop, 0.125" OD x 0.775" L
|
SAS
|
| 25. |
47480702
|
[2] |
WIRE HARNESS
|
SAS
In Tank Sensors Superseded by part number: 47882330
|
| 26. |
47649220
|
[1] |
WIRE HARNESS
|
SAS
Tow Behind Cart Lighting Superseded by part number: 47944780
|
| 27. |
87557084
|
[24] |
CABLE TIE,14"
|
SAS
Superseded by part number: 84530708
|
| 28. |
86628564
|
[2] |
CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type
|
ZED
Superseded by part number: 515-23317
|
| 29. |
84265306
|
[1] |
CLAMP,47.6mm, Coat, 8.7mm Bolt Hole, P Type
|
BRR
|
| 30. |
577927
|
[3] |
CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type
|
NH
|
| 31. |
9804277
|
[3] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
