| 1. |
47625030
|
[1] |

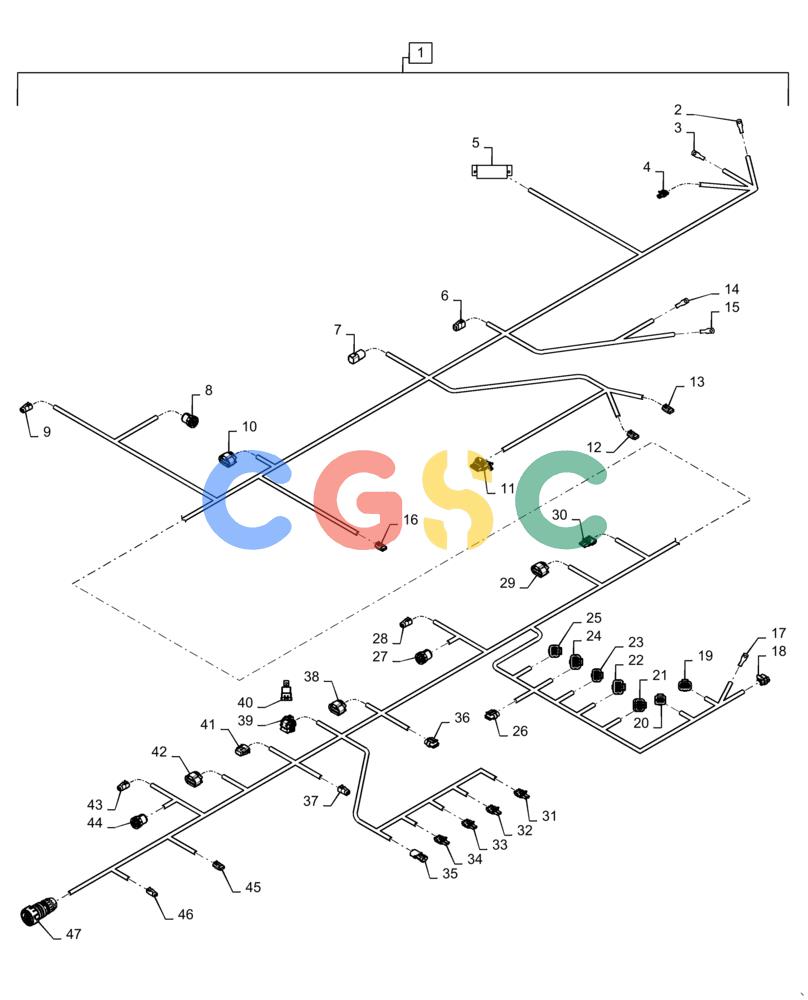

WIRE HARNESS
|
SAS
550, 580, 950 Bushel Tow Behind Cart Harness, Incl 2 - 47
|
| 2. |
47593681
|
[1] |
TERMINAL,M6, Tin, 5.00 - 15.00mm
|
GI
Relay In
|
| 4. |
82012083
|
[1] |
WIRE CONNECTOR,Female
|
BAS
2 Way, Relay Control
|
| 4. |
82012085
|
[2] |
TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm
|
BAS
2 Way, Relay Control Superseded by part number: 87702671
|
| 5. |
47742741
|
[1] |
MODULE
|
SAS
Fuse Box
|
| 6. |
87700107
|
[1] |
ELEC CONNECTOR
|
BAS
6 Way, Remote Mon
|
| 6. |
87696954
|
[6] |
TERMINAL,Female, Nickel, 0.35 - 1.50mm
|
CUR
6 Way, Remote Mon
|
| 6. |
87705582
|
[1] |
ELEC CONNECTOR
|
RAC
6 Way, Remote Mon
|
| 7. |
87695579
|
[1] |
WIRE CONNECTOR
|
GI
6 Way, Light Module
|
| 7. |
86500035
|
[6] |
ELEC. TERMINAL PIN,Male, 0.75 - 2mm
|
GI
6 Way, Light Module Superseded by part number: 87695607
|
| 7. |
87694147
|
[1] |
WEDGE,Locking, Green
|
BN
6 Way, Light Module
|
| 8. |
87706919
|
[1] |
ELEC CONNECTOR
|
RAC
Bin 3 Sensors
|
| 8. |
87695921
|
[4] |
CONTACT,Female, Nickel, 0.50 - 1.00mm
|
COE
Bin 3 Sensors
|
| 8. |
84068583
|
[1] |
PLUG,12 - 16 Ga, White
|
ZED
Bin 3 Sensors Superseded by part number: 87695652
|
| 9. |
87696138
|
[1] |
ELEC CONNECTOR
|
SAS
Pressure 3 Superseded by part number: 277904A1
|
| 9. |
87696149
|
[1] |
ELEC CONNECTOR
|
RAC
Pressure 3
|
| 10. |
84137509
|
[1] |
ELEC CONNECTOR
|
SAS
8 Way, Tank 3 Motors
|
| 10. |
84193153
|
[4] |
TERMINAL
|
SAS
8 Way, Tank 3 Motors
|
| 10. |
87697672
|
[4] |
TERMINAL
|
SAS
8 Way, Tank 3 Motors
|
| 10. |
87699200
|
[1] |
WIRE CONNECTOR
|
SAS
8 Way, Tank 3 Motors
|
| 10. |
87354736
|
[1] |
RETAINER
|
BN
8 Way, Tank 3 Motors
|
| 11. |
84163450
|
[1] |
ELEC CONNECTOR
|
BUR
5 Way, Alternator
|
| 11. |
84163444
|
[1] |
TERMINAL
|
SAS
5 Way, Alternator
|
| 11. |
87712417
|
[1] |
COVER
|
BUR
5 Way, Alternator
|
| 11. |
87714249
|
[4] |
SEAL PROTECTION
|
SAS
5 Way, Alternator
|
| 12. |
87696551
|
[1] |
CONTACT HOUSING,Female, 3 Pole
|
BN
Upper Fan RPM
|
| 12. |
87705586
|
[1] |
WEDGE
|
BN
Upper Fan RPM
|
| 18. |
87694714
|
[1] |
ELEC CONNECTOR,Female, 6 Cavities
|
ZED
6 Way, Can Terminator Superseded by part number: 256348A1
|
| 18. |
87688852
|
[4] |
ELEC. TERMINAL PIN
|
CAS
6 Way, Can Terminator Superseded by part number: 221381A1
|
| 18. |
87689636
|
[2] |
PLUG,Red, Taxi Seal Connector Cavity
|
SAS
6 Way, Can Terminator
|
| 18. |
87694719
|
[1] |
LOCKING TAB,Wedge Lock
|
ZED
6 Way, Can Terminator Superseded by part number: 258617A1
|
| 19. |
82028495
|
[1] |
MULTIPOLE CONNECTOR,Female, 34 Pole
|
JES
UCM 4B
|
| 19. |
87410951
|
[7] |
TERMINAL
|
RAC
UCM 4B Superseded by part number: 87697604
|
| 19. |
82017049
|
[27] |
PLUG
|
ZED
UCM 4B
|
| 20. |
82028493
|
[1] |
MULTIPOLE CONNECTOR,Female, 26 Pole
|
JES
UCM 4A Superseded by part number: 87419488
|
| 21. |
84130760
|
[1] |
ELEC CONNECTOR,Female, 34 Cavities
|
FAR
UCM 3B
|
| 24. |
87410946
|
[1] |
WIRE CONNECTOR,Female
|
RAC
UCM 1B Superseded by part number: 87691970
|
| 25. |
82016219
|
[1] |
MULTIPOLE CONNECTOR,Female, 26 Pole
|
JES
UCM 1A Superseded by part number: 87691969
|
| 26. |
87688712
|
[1] |
WIRE CONNECTOR,Female
|
BN
2 Way, Fuse Holder
|
| 26. |
87688850
|
[2] |
TERMINAL
|
BN
2 Way, Fuse Holder
|
| 30. |
87644909
|
[1] |
WIRE CONNECTOR,Female, 3 Pins
|
BN
3 Way, Auger Control
|
| 30. |
87692876
|
[2] |
CABLE TERMINAL,Female, Tin, 1 - 2mm
|
BAS
3 Way, Auger Control Superseded by part number: 225122C1
|
| 30. |
87686742
|
[1] |
PLUG
|
MKT
3 Way, Auger Control
|
| 31. |
87692855
|
[1] |
CONTACT HOUSING,Male, 2 Cavities
|
BN
Cal Tank 3
|
| 31. |
87692856
|
[2] |
CABLE TERMINAL
|
BAS
Cal Tank 3
|
| 35. |
87692877
|
[1] |
MULTIPOLE CONNECTOR,Male, 2 Cavities
|
BN
Cal Switch
|
| 35. |
87692880
|
[2] |
CABLE TERMINAL
|
BAS
Cal Switch Superseded by part number: 225120C1
|
| 39. |
297910A1
|
[1] |
ELEC CONNECTOR,Female, 5 Pin
|
CAS
5 Way, Relay 2, UCM Power Superseded by part number: 87697770
|
| 39. |
87680656
|
[2] |
CONTACT
|
SAS
5 Way, Relay 2, UCM Power
|
| 39. |
87686739
|
[2] |
CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm
|
ZED
5 Way, Relay 2, UCM Power
|
| 39. |
87705088
|
[1] |
WEDGE
|
BRR
5 Way, Relay 2, UCM Power
|
| 40. |
84179509
|
[1] |
RELAY
|
BAS
12V Miniature
|
| 41. |
87700332
|
[1] |
ELEC CONNECTOR
|
BAS
8 Way, Auxiliary Tank Sensors
|
| 41. |
87705584
|
[1] |
ELEC CONNECTOR
|
RAC
8 Way, Auxiliary Tank Sensors
|
| 44. |
86500036
|
[4] |
TERMINAL,Female, Nickel, 0.75 - 2mm
|
PA
5 Way, Bin 1 Sensors
|
| 46. |
87696093
|
[1] |
ELEC CONNECTOR,Female, 2 Cavities
|
MKT
Work Switch
|
| 47. |
47587614
|
[1] |
WIRE CONNECTOR
|
SAS
9 Way, Strain Relief
|
| 47. |
87697875
|
[2] |
ELEC. TERMINAL PIN,Female, 2 - 3.6 mm2
|
CAS
9 Way, Strain Relief
|
| 47. |
84819143
|
[1] |
TERMINAL CONNECTOR,Female, 4.5 - 8 mm2
|
ZED
9 Way, Strain Relief Superseded by part number: 900787
|
| 47. |
47591988
|
[1] |
WIRE CONNECTOR
|
SAS
9 Way, Strain Relief
|
