神钢零件查询(MD200BLC) - EXCAVATOR ASN YQU0001 (1/80-12/06) (05-011) - HEATER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
491 次

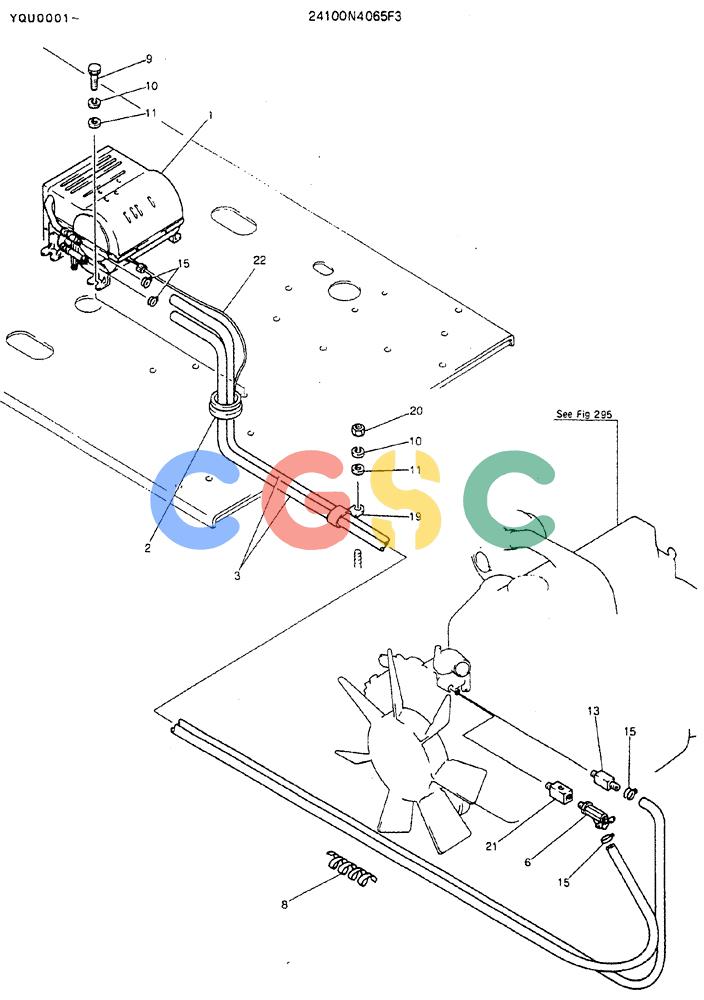

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4065F3 | [1] | HEATER ASSY | |
| 1. | 2479U293D3 | [1] | HEAT EXCHANGER | KOB Superseded by part number: 2479U293D4 |
| 2. | 2420Z699 | [1] | GROMMET | KOB |
| 3. | R18T0026D30 | [2] | HOSE | KOBID 12 x OD 22 x 3200mm |
| 6. | R44T0201 | [1] | HYD CONNECTOR | KOB Superseded by part number: 113700-1381 |
| 8. | 2414Z199D025 | [1] | PROTECTIVE SLEEVE | KOBHose -- 250mm Long (9-27/32 in) |
| 9. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 10. | ZW26X10000 | [5] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 11. | ZW16X10000 | [5] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 13. | 2444T2577 | [1] | HYD CONNECTOR | KOBM16x1.5x51mm Long Ø14 Hose |
| 15. | ZC15X02300 | [4] | CLIP | KOB |
| 19. | 2432R226D11 | [3] | CLIP | KOBClamp, Double -- ID 22 x 81mm Long Superseded by part number: ZC48X22014 |
| 20. | ZN18C10008 | [1] | NUT | KOBM10x1.50mm |
| 21. | 2444T2610 | [1] | HYD CONNECTOR | KOB |
| 22. | 2479Z1817 | [1] | WIRE HARNESS | KOB |
