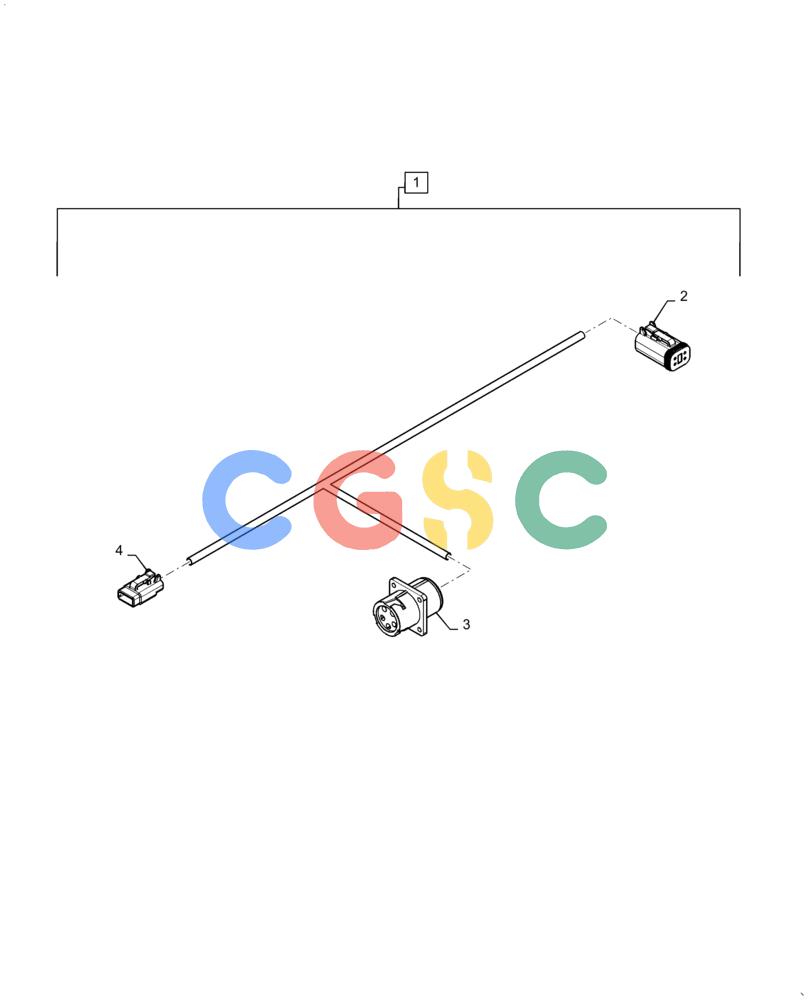

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (55.516.AT[07]) - AIR CART IN TANK HARNESS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
175 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47480702
|
[1] |
WIRE HARNESS
|
SAS
Air Cart In Tank, Complete, Incl 2 - 4 Superseded by part number: 47882330
|
| 2. |
87708147
|
[1] |
ELEC CONNECTOR
|
COE
4 Way, Bin Level Sensor
|
| 2. |
87695921
|
[4] |
CONTACT,Female, Nickel, 0.50 - 1.00mm
|
COE
4 Way, Bin Level Sensor
|
| 2. |
84074640
|
[1] |
LOCKING TAB,Wedge Lock
|
ZED
4 Way, Bin Level Sensor Superseded by part number: 86622299
|
| 3. |
87706918
|
[1] |
ELEC CONNECTOR
|
SAS
5 Way, Bin Sensors Superseded by part number: 225222C1
|
| 3. |
86500035
|
[5] |
ELEC. TERMINAL PIN,Male, 0.75 - 2mm
|
GI
5 Way, Bin Sensors Superseded by part number: 87695607
|
| 4. |
87696551
|
[1] |
CONTACT HOUSING,Female, 3 Pole
|
BN
Low Bin Sensor
|
| 4. |
87696954
|
[3] |
TERMINAL,Female, Nickel, 0.35 - 1.50mm
|
CUR
Low Bin Sensor
|
| 4. |
87705586
|
[1] |
WEDGE
|
BN
Low Bin Sensor
|
