神钢零件查询(MD200BLC) - EXCAVATOR ASN YQU0001 (1/80-12/06) (06-002) - IDLER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
551 次

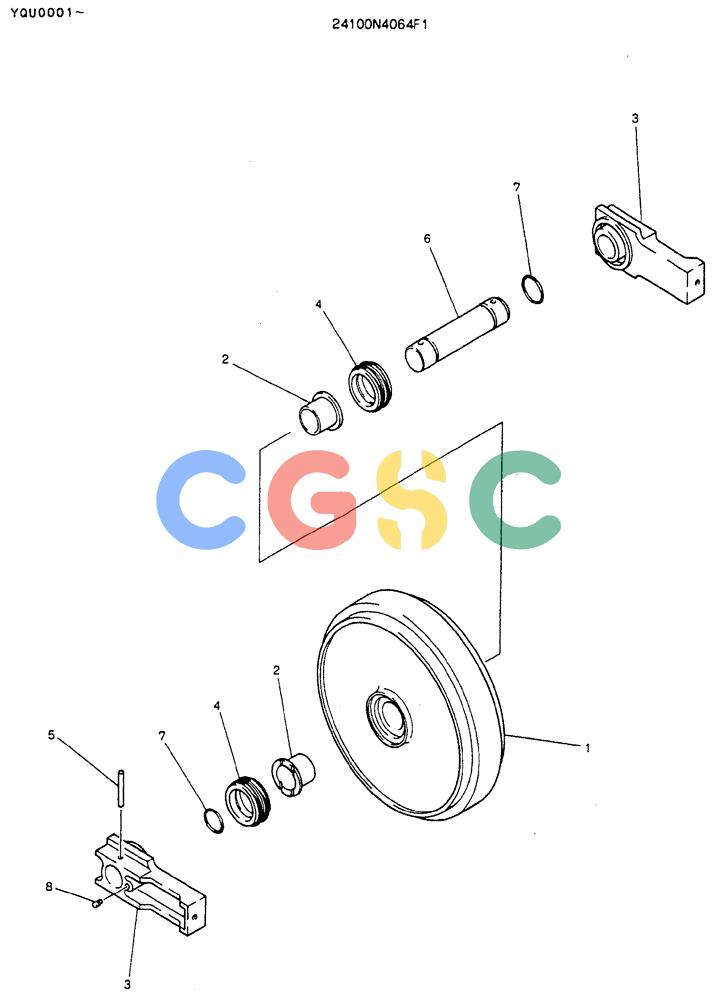

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4064F1 | [1] | IDLER WHEEL | MOD |
| 1. | 2413N420 | [1] | IDLER | KOB |
| 2. | 2405T1035 | [2] | BUSHING | KOB |
| 3. | 2413N419 | [2] | SLIDE VALVE | KOB |
| 4. | R45P0018D27 | [2] | SEAL | KOB Superseded by part number: ZD58F10032 |
| 5. | 2419T2668D2 | [2] | PIN | KOB Superseded by part number: 2419T6351 |
| 6. | 2419P1715 | [1] | SHAFT | KOB Superseded by part number: 2410P831 |
| 7. | ZD11G06500 | [2] | O-RING,64.40mm ID x 70.60mm OD x 3.10mm | KOB |
| 8. | ZE82T02000 | [2] | PLUG | KOBPipe, 1.25" PT |
