纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (140-18A[1]) - CONTROL LINES, REMOTE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
868 次

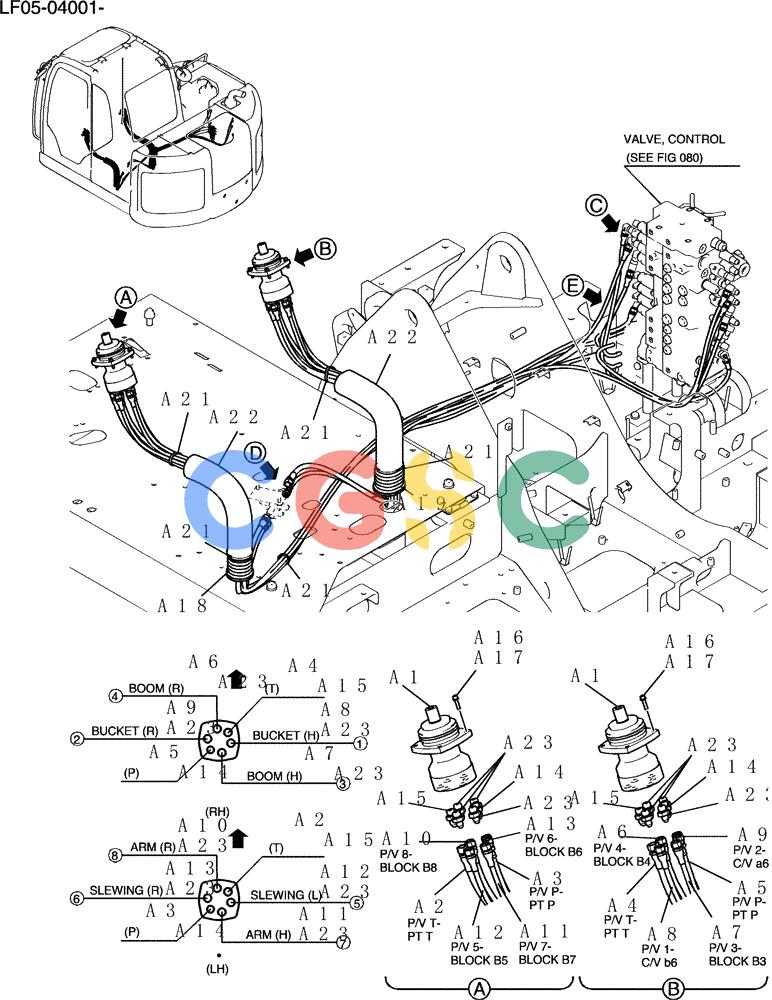

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT68H00079F1 | [1] | Control Lines, Remote | |
| A1. | YN30V00111F1 | [2] | HYDRAULIC VALVE | SMAssy, Pilot |
| A2. | 2420R537D135 | [1] | FLEXIBLE HOSE,9.60mm ID x 1350mm L | KOB Superseded by part number: HX21E06135DX |
| A3. | LS68H01016D1 | [1] | HOSE,6.3mm ID x 1350mm L | KOB |
| A4. | 2420R537D140 | [1] | HOSE ASSY.,9.60mm ID x 1400mm L | KOB |
| A5. | LS68H01016D4 | [1] | HOSE,6.3mm ID x 1400mm L | KOB |
| A6. | HX23L04240CH | [1] | HOSE ASSY. | KOBHose |
| A7. | HX23L04240CG | [1] | HOSE ASSY. | KOBHose |
| A8. | HX23L04250CR | [1] | FLEXIBLE HOSE | KOB |
| A9. | HX23L04280CB | [1] | FLEXIBLE HOSE | KOB |
| A10. | HX23L04300CG | [1] | HOSE ASSY. | KOBHose |
| A11. | HX23L04290CB | [1] | FLEXIBLE HOSE | KOB |
| A12. | HX23L04300CH | [1] | FLEXIBLE HOSE | KOB |
| A13. | HX23L04290CR | [1] | FLEXIBLE HOSE | KOB |
| A14. | HH25X04004G2 | [2] | HYD CONNECTOR | KOB(with Filter) |
| A15. | ZH22X06000 | [2] | HYD CONNECTOR | KOB |
| A16. | ZS28C06025 | [8] | SCREW,Hex Socket Head, M6 x 25mm | KOBCap |
| A17. | ZW16P06000 | [8] | WASHER | KOB |
| A18. | PH03M01250P1 | [1] | BOOT | KOB |
| A19. | YY03M01046P1 | [1] | BOOT | KOBBoot |
| A21. | PY01P01043D8 | [5] | CABLE TIE,102mm L | KOB |
| A22. | YN68H01106P1 | [2] | COVER | KOB |
| A23. | ZH22X04006 | [8] | HYD CONNECTOR | KOB |
| . . | YT64H00130F1 | [1] | Control Lines, Block | |
| B1. | 2420R349D034 | [1] | HOSE | KOBHose Superseded by part number: 2420R349D035 |
| B2. | 2420R349D056 | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 2420R349D060 |
| B3. | 2420R349D062 | [1] | HOSE | KOB Superseded by part number: 2420R349D065 |
| B4. | 2420R349D074 | [1] | HOSE,740.00 mm | SM Superseded by part number: 2444R3019D3 |
| B5. | 2420R349D100 | [1] | HOSE | KOB Superseded by part number: HX21E04100DX |
| B6. | 2420R349D110 | [1] | HOSE,1100.00 mm | KOB Superseded by part number: HX21E04110DX |
| B7. | 2444T2505 | [6] | HYD CONNECTOR | KOB |
| B8. | 2444T2528 | [2] | HYD CONNECTOR | KOB |
| B10. | 2444Z2891 | [3] | HYD CONNECTOR | KOB |
| B11. | ZH22X04000 | [4] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB |
| B12. | ZH32X04006 | [6] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 3/8", O-Ring | KOB |
| B13. | YX52S00013P1 | [6] | SENSOR | SMPress Superseded by part number: LC52S00019P1 |
| B13-2. | ZD12P01100 | [1] | O-RING | KOB |
| B14. | YF64H01047P2 | [1] | BLOCK | KOB |
| B15. | ZM73C10040 | [2] | BOLT,M10x40mm - Course Thread | KOBSems |
