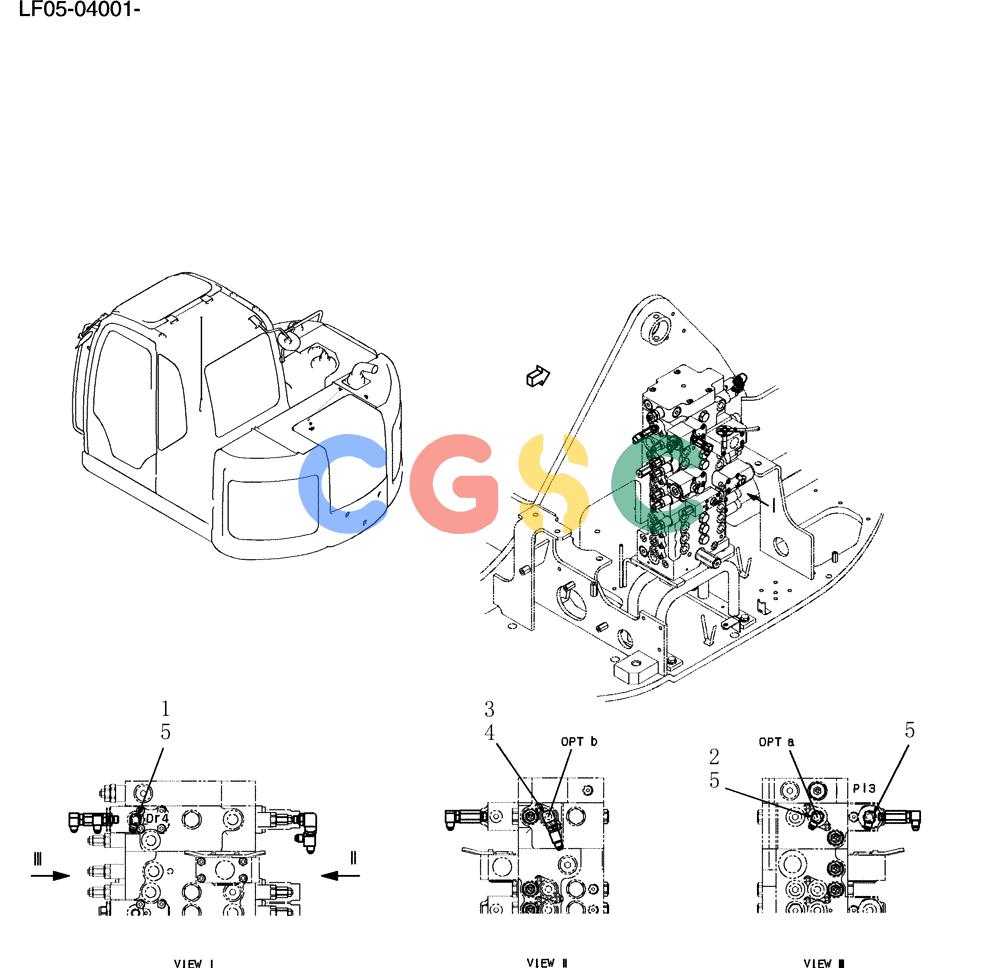

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (147-17[1]) - CONTROL LINES, MAIN New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
644 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT06H00072F1 | [1] | Control Lines, Main | |
| . . | YT06H00049F1 | [1] | Control Lines, Main (See Fig No.146-18-1,2) | |
| . . | YT06H00041F1 | [1] | TUBE | KOBControl Lines, Main (See Fig No.146-18-1,2) |
| . . | YT06H00059F1 | [1] | TUBE | KOBControl Lines, Main (See Fig No.148-17-1) |
| . . | YT06H00054F1 | [1] | TUBE | KOBControl Lines, Main (See Fig No.146-18-1,2) |
| . . | YT06H00057F1 | [1] | TUBE | KOBControl Lines, Main (See Fig No.148-17-1) |
| . . | YT06H00097F1 | [1] | Control Lines, Main (See Fig No.146-18-1,2) | |
| . . | YT06H00069F1 | [1] | TUBE | KOBControl Lines, Main (include A Lock Valve) |
| 1. | 2444T2524 | [1] | HYD CONNECTOR | KOB |
| 2. | 2444Z4101 | [1] | HYD CONNECTOR | KOB |
| 3. | 2444Z2336 | [1] | HYD CONNECTOR | KOBTee |
| 4. | 2444Z2894 | [1] | 90 ELBOW | KOBElbow |
| 5. | ZH32X04000 | [3] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow |
