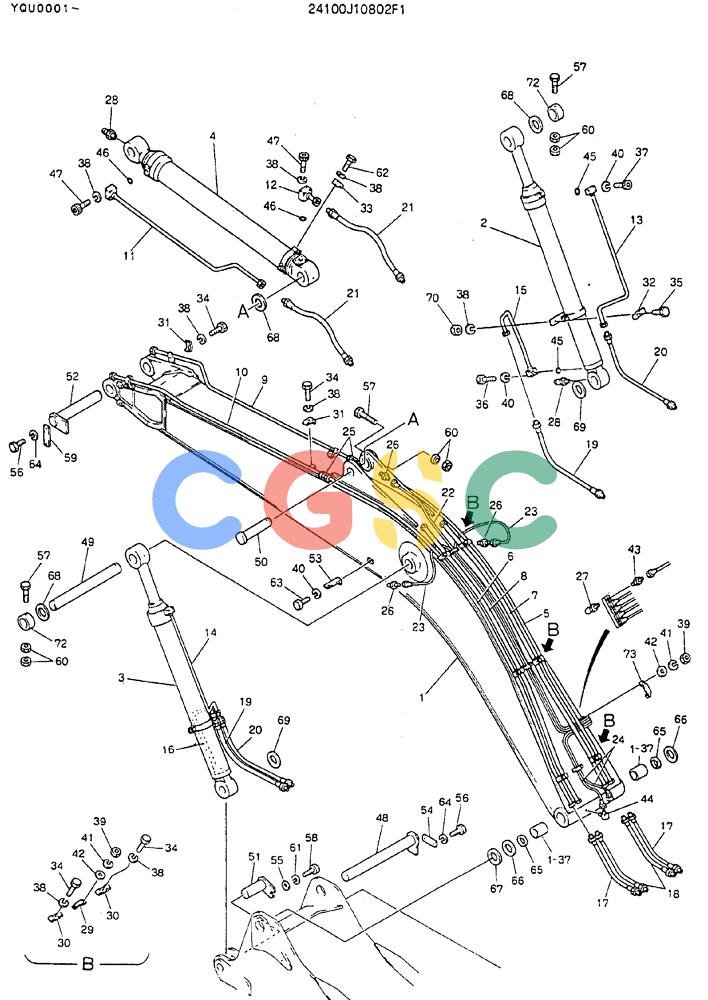

| . . | 24100J10802F1 | [1] | BOOM ASSY 5.6M | BOOM ASSY 5.6M |
| 1. | 2411J3483F1 | [1] | BOOM | BOOM |
| 1-37. | 2405T1252 | [2] | BUSHING | KOB |
| 2. | 2438U996F1 | [1] | BOOM | KOBSEE (C.P.M.) |
| 3. | 2438U997F1 | [1] | CYLINDER | KOBSEE (C.P.M.) Superseded by part number: 2438U1106F1 |
| 4. | 2438U941F1 | [1] | CYLINDER | KOBSEE (C.P.M.) Superseded by part number: 2438U1108F1 |
| 5. | 2418P12144D1 | [1] | TUBE | KOB |
| 6. | 2418P12144D2 | [1] | RIGID TUBE | KOB |
| 7. | 2418T17556 | [1] | TUBE | KOB |
| 8. | 2418T17555 | [1] | TUBE | KOB |
| 9. | 2418P12145D1 | [1] | RIGID TUBE | KOB |
| 10. | 2418P12145D2 | [1] | RIGID TUBE | KOB |
| 11. | 2418T17398 | [1] | RIGID TUBE | KOB |
| 12. | 2418T12132 | [1] | RIGID TUBE | KOB Superseded by part number: 2418P22218 |
| 13. | 2418P12147D1 | [1] | TUBE | KOB |
| 14. | 2418P12147D2 | [1] | TUBE | KOB |
| 15. | 2418P12146D1 | [1] | RIGID TUBE | KOB |
| 16. | 2418P12146D2 | [1] | RIGID TUBE | KOB |
| 17. | ZX26N12094 | [2] | FLEXIBLE HOSE | KOB |
| 18. | 2444Z2519D1 | [2] | FLEXIBLE HOSE | KOB Superseded by part number: 2444R1090D1 |
| 19. | ZX26N12080 | [2] | HOSE | KOB |
| 20. | ZX26N10080 | [2] | FLEXIBLE HOSE | KOB Superseded by part number: ZX28N10080 |
| 21. | 2444Z2518D1 | [2] | FLEXIBLE HOSE | KOB Superseded by part number: 2444R1175D1 |
| 22. | 2420R349D330 | [1] | HYDRAULIC HOSE,6.35 mm ID x 3300.00 mm | KOB Superseded by part number: HX21E04330DX |
| 23. | 2420R349D290 | [2] | HYDRAULIC HOSE,6.35 mm ID x 2900.00 mm | KOB |
| 24. | 2420R349D110 | [2] | HOSE,1100.00 mm | KOB1100mm Long (43-19/64 in) Superseded by part number: HX21E04110DX |
| 25. | ZA23B28000 | [2] | CONNECTION | KOBM36x1.50x43mm Long |
| 26. | ZH22Z04000 | [3] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 27. | ZG91U02000 | [5] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 28. | ZG91S02000 | [3] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 29. | 2416T3655 | [3] | CLAMP | KOB |
| 30. | 2432T2434 | [6] | CLAMP | KOBDouble Line -- 129x38x15mm (Ø29xØ36mm) |
| 31. | ZC26X28014 | [4] | CLAMP | KOBSingle Line -- 75x37x38mm (Ø28mm) |
| 32. | 2432T2242 | [2] | CLAMP | KOBDouble -- 106x38x12mm (Ø23xØ29mm) |
| 33. | 2432T2363 | [1] | CLAMP | KOB Superseded by part number: YN42H01078P1 |
| 34. | ZS13C12055 | [10] | SCREW | KOBM12x1.75x55mm Superseded by part number: ZS18C12055 |
| 35. | ZS13C12060 | [2] | SCREW | KOBM12x1.75x60mm Superseded by part number: ZS18C12060 |
| 36. | ZS13C10070 | [8] | SCREW | KOBM10x1.50x70mm Superseded by part number: ZS18C10070 |
| 37. | ZS13C10060 | [8] | SCREW | KOBM10x1.50x60mm Superseded by part number: ZS18C10060 |
| 38. | ZW22X12000 | [21] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 39. | ZN13C06005 | [8] | NUT | KOBM06x1.0mm Superseded by part number: ZN18C06005 |
| 40. | ZW22X10000 | [17] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 41. | ZH22X06000 | [8] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
| 42. | ZW11X06000 | [8] | WASHER | KOBID 06.6 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 43. | 2444Z2002 | [5] | HYD CONNECTOR | KOB1/8"PTx1/4"PFx32mm Long |
| 44. | ZH32Z04000 | [2] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 45. | ZD12P02600 | [4] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 46. | ZD12P03400 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 47. | ZS13C12090 | [8] | SCREW | KOBM12x1.75x90mm Superseded by part number: ZS18C12090 |
| 48. | 2419T4651 | [1] | PIN | KOB Superseded by part number: 2419T7607, 2419T5490 |
| 49. | 2419P1707D1 | [1] | PIN | KOB |
| 50. | 2419P1708D1 | [1] | PIN | KOB |
| 51. | 2419T4698 | [2] | PIN | KOB Superseded by part number: 2419P3687 |
| 52. | 2419T4755 | [1] | PIN | KOB |
| 53. | 2416T13056 | [1] | BRACKET | KOB |
| 54. | 2418T12469 | [1] | PLATE | KOB150 x 50 x Th 12mm, 2-Ø16 Holes |
| 55. | 2418T17550 | [2] | PLATE | KOBID 18 x OD 60 x Th 06mm |
| 56. | ZS13C14030 | [4] | SCREW | KOBM14x2.0x30mm Superseded by part number: ZS18C14030 |
| 57. | 2420T4004D1 | [3] | SCREW,M16 x 2 x 150mm | KOBM16x2.0x150mm |
| 58. | ZS13C16030 | [2] | SCREW | KOBM16x2.0x30mm |
| 59. | 2418T17707 | [1] | PLATE | KOB |
| 60. | ZN13C16013 | [6] | NUT | KOBM16x2.0mm |
| 61. | ZW22X16000 | [2] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 62. | ZS13C12065 | [1] | SCREW | KOB Superseded by part number: ZS18C12065 |
| 63. | ZS13C10018 | [1] | SCREW | KOBM10x1.50x18mm |
| 64. | ZW22X14000 | [4] | LOCK WASHER | KOBID 14 x OD 24.5 x Th 3.5mm Superseded by part number: ZW26X14000 |
| 65. | 2445R372D4 | [2] | DUST CAP | KOB |
| 66. | B16T0442D14 | [2] | SHIM,160mm OD x 92mm ID x 1.6mm Thk | KOBID 92 x OD 160 x Th 1.6mm |
| 67. | B16T0442D40 | [1] | SHIM,92mm ID x 160mm OD x 0.9mm Thk | KOBID 92 x OD 160 x Th 0.9mm |
| 68. | B16T0442D37 | [3] | SHIM,155mm OD x 87mm ID x 1.6mm Thk | KOBID 87 x OD 155 x Th 1.6mm |
| 69. | B16T0442D4 | [2] | SHIM,82mm ID x 150mm OD x 1.6mm Thk | KOBID 82 x OD 150 x Th 1.6mm |
| 70. | ZN13C12010 | [2] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 72. | 2411T671D5 | [2] | BOSS | KOB |
| 73. | 2432T1476 | [1] | CLAMP | KOB |
