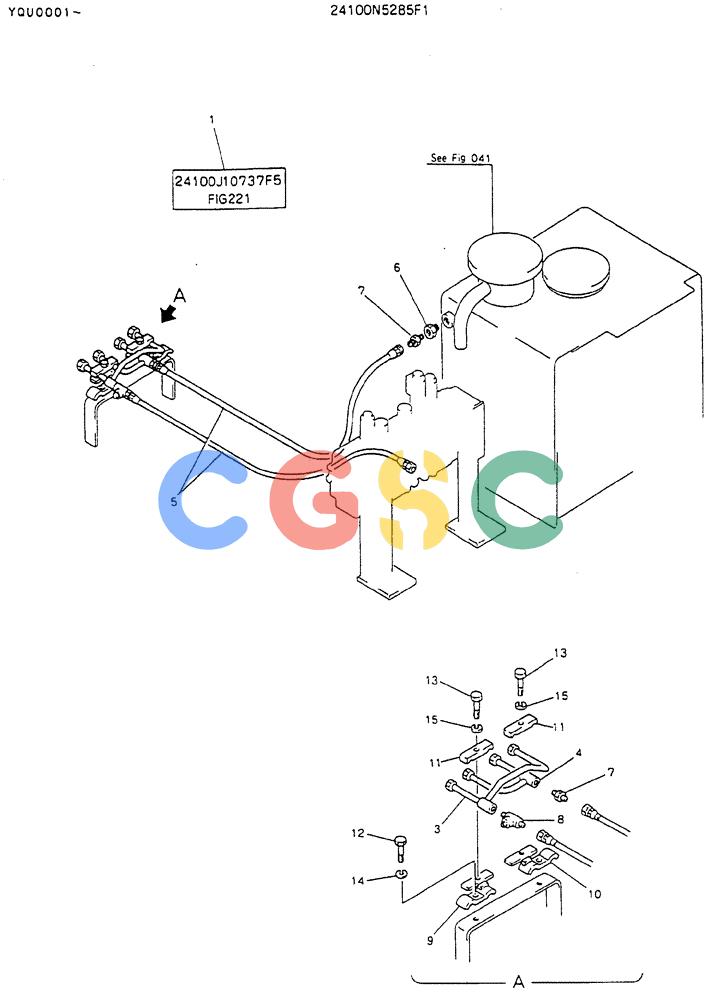

神钢零件查询(MD200BLC) - EXCAVATOR ASN YQU0001 (1/80-12/06) (08-004) - REWORK, HYDR LINES Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
273 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5285F1 | [1] | REWORK, HYDR LINES | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONHYDR LINES, UPP, SEE FIGURE 04-001 |
| 3. | 2418P19072 | [1] | TUBE | |
| 4. | 2418P19073 | [1] | RIGID TUBE | KOBTUBE |
| 5. | 2420R537D150 | [2] | FLEXIBLE HOSE,9.60mm ID x 1500mm L | KOB3/8" PF, 1500mm Long (59-1/16 in) Superseded by part number: HX21E06150DX |
| 6. | 2444T2547 | [1] | HYD CONNECTOR | KOB |
| 7. | 2H22X06000 | [2] | CONNECTER | |
| 8. | 2444Z2359 | [1] | TEE | KOB3/8" PT (Incls. O-Ring ZD12P01400) |
| 9. | 2416P12752 | [1] | SUPPORT | KOBSUPPORT |
| 10. | 2416P12753 | [1] | SUPPORT | KOBSUPPORT |
| 11. | 2432T2340 | [2] | CLAMP | KOB |
| 12. | ZS18C12050 | [2] | SCREW,Hex, M12 x 50mm | KOBM12x1.75x50mm |
| 13. | ZS18C10050 | [2] | SCREW,Hex, M10 x 50mm | KOBM10x1.50x50mm |
| 14. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 15. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
