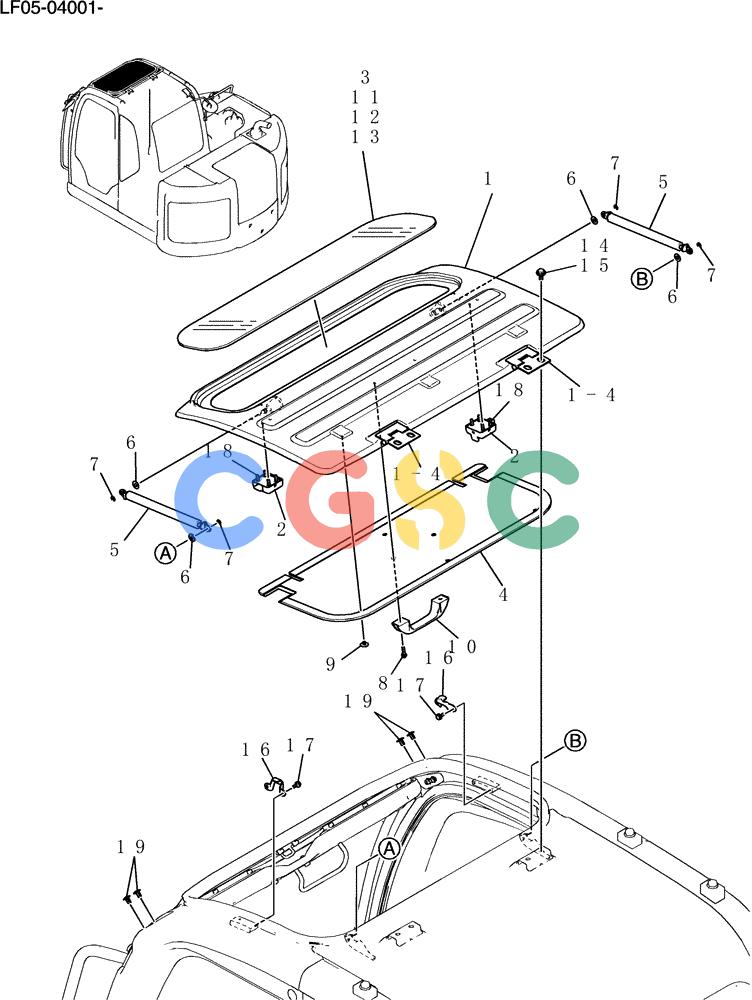

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (187-17[1]) - WINDOW ASSY, ROOF (GRAYISH BLACK) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
884 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY02C01040F1%KL | [1] | WINDOW | KOBAssy, Roof (grayish Black) |
| 1. | YY02C01041P1 | [1] | WINDOW | KOBWindow, Roof |
| 1-4. | YT02C01005P1 | [2] | HINGE | KOB |
| 2. | YN02C03810F1 | [2] | LOCK | KOBAssy |
| 3. | YN02C03054P1 | [1] | GLASS | KOB |
| 4. | YY02C01039P1 | [1] | FOAM INSULATION | KOB |
| 5. | YY02C01102P1 | [2] | SPRING | KOB Superseded by part number: YY02C01102P2 |
| 6. | YT02C01390P1 | [4] | WASHER,9mm ID x 20mm OD x 0.8mm Thk | KOB |
| 7. | ZR36X00600 | [4] | SNAP RING | KOB |
| 8. | ZM46C06025 | [2] | BOLT | KOBSems |
| 9. | YN02C01820P1 | [4] | CLIP | KOB |
| 10. | YN02C02967P1 | [1] | HANDLE | KOB |
| 11. | YN01T01043P1 | [1] | ADHESIVE | KOB |
| 12. | YN09T00005P1 | [1] | PAINT | KOB |
| 13. | YN02C02971P1 | [1] | SEAL | KOB Superseded by part number: YR02C01511D2 |
| 14. | ZS18C08020 | [4] | SCREW,Hex, M8 x 20mm | KOB |
| 15. | YR21C01161P1 | [4] | WASHER,9mm ID x 22mm OD x 2.3mm Thk | KOB |
| 16. | YN02C03131P1 | [2] | BRACKET | KOB |
| 17. | ZM73C06016 | [4] | BOLT,M6x16mm - Course Thread | KOBSems |
| 18. | ZM66C06020 | [8] | BOLT | KOBSems |
| 19. | YN02C01292P1 | [4] | PLUG | KOB |
