| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

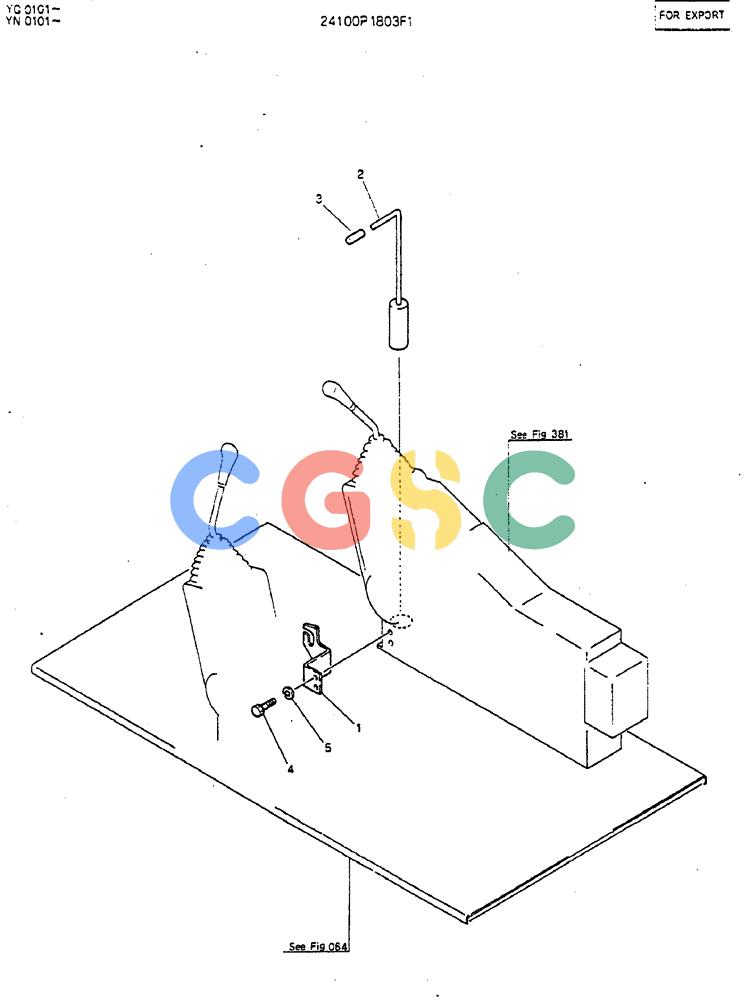

| . . | 24100P1803F1 | [1] | LOCK ASSY, SWING | |
| 1. | 2416T20843 | [1] | SUPPORT | SUPPORT |
| 2. | 2419P2656 | [1] | PIN | KOB |
| 3. | 2414Z270D2 | [1] | CAP | KOB |
| 4. | ZS18C06020 | [2] | SCREW,Hex, M6 x 20mm | KOBM06x1.0x20mm |
| 5. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
