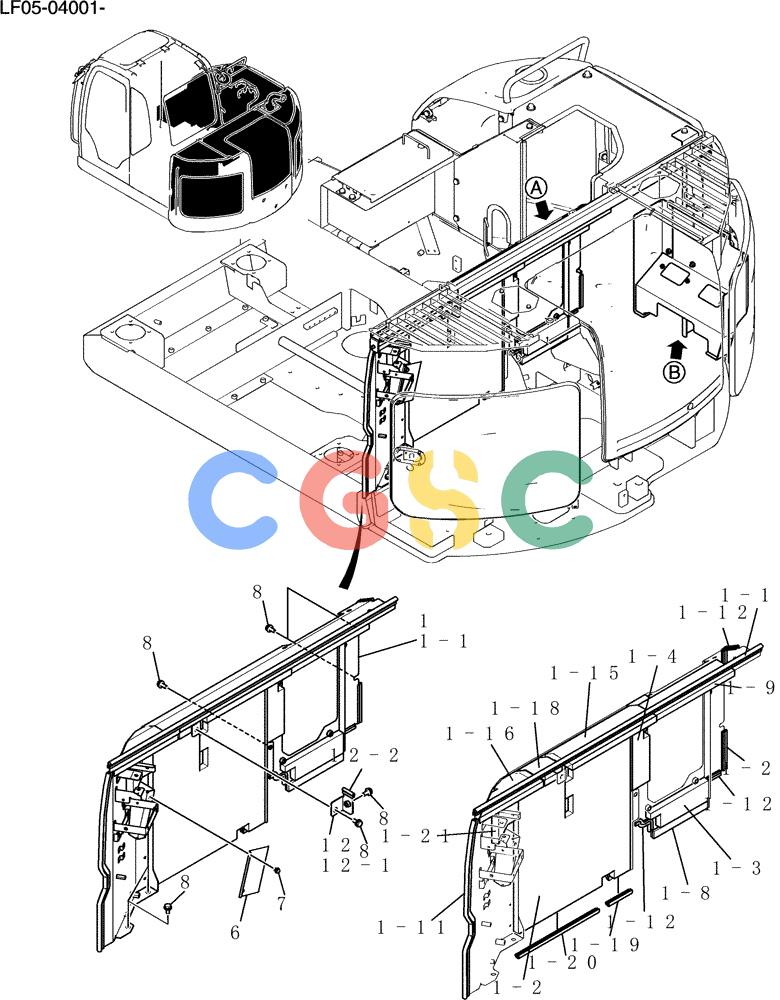

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (240-17[1]) - GUARD INSTAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
776 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF21C00003F2 | [1] | Guard Instal | |
| . . | YT21C00037F1 | [1] | Guard Instal (SeeFig No.246-18-1) | |
| . . | LF21C00008F1 | [1] | Guard Instal (See Fig No.244-17-1) | |
| . . | LF21C00009F1 | [1] | Guard Instal (See Fig No.243-17-1) | |
| . . | LF21C00010F1 | [1] | Guard Instal (See Fig No.248-17-1) | |
| . . | LF21C00004F1 | [1] | Guard Instal | |
| 1. | LF21C01079F1 | [1] | GUARD | KOBGuard Assy |
| 1-1. | LF21C01149P1 | [1] | GUARD | KOB |
| 1-2. | YR21C01414P1 | [1] | INSULATION | KOBInsulation |
| 1-3. | LF21C01080P1 | [1] | INSULATION | KOBInsulation |
| 1-4. | YR21C01415P1 | [1] | INSULATION | KOBInsulation |
| 1-8. | LF21C01084P1 | [1] | RUBBER SEAL | KOB |
| 1-9. | YT21C01651P1 | [1] | INSULATION | KOBInsulation |
| 1-10. | YT21C01164DL | [1] | WEATHERSTRIP | KOB |
| 1-11. | YT21C01164DM | [1] | WEATHERSTRIP | KOB |
| 1-12. | YR21C01168DE | [3] | WEATHERSTRIP | KOB |
| 1-15. | YR21C01423P1 | [1] | INSULATION | KOBInsulation |
| 1-16. | YT21C01693P1 | [1] | INSULATION | KOBInsulation |
| 1-18. | YR21C01424P1 | [1] | INSULATION | KOBInsulation |
| 1-19. | YN21C01136D6 | [1] | STRIP | KOBWeather |
| 1-20. | PY21C01007DH | [1] | WEATHERSTRIP | KOB |
| 1-21. | YR21C01437P1 | [1] | INSULATION | KOBInsulation |
| 1-22. | YR21C01168DJ | [1] | WEATHERSTRIP | KOB |
| 2. | YT21C01632F1 | [1] | GUARD | KOBGuard Assy |
| 2-1. | YT21C01951P1 | [1] | GUARD | KOB |
| 2-2. | YR21C01168DK | [1] | RUBBER SEAL | KOBStrip, Weather |
| 3. | YT21C01652P1 | [2] | BRACKET | KOBBracket |
| 4. | YT21C01823F1 | [1] | Pillar Assy | |
| 4-1. | YT21C01944P1 | [1] | PILLAR | KOB Superseded by part number: YT21C01976P1 |
| 4-2. | YT21C01822P1 | [1] | RUBBER SEAL | KOB |
| 5. | YT21C01941P1 | [1] | BRACKET | KOB |
| 6. | YF21C01765P1 | [1] | SPRING | KOB |
| 7. | ZM73C08016 | [5] | BOLT,M8x16mm - Course Thread | KOBSems |
| 8. | ZM73C12025 | [16] | BOLT,M12x25mm - Course Thread | KOBSems |
| 9. | ZM73C12030 | [2] | BOLT,M12x30mm - Course Thread | KOBSems |
| 12. | YR21C01425F1 | [1] | BRACKET | KOBBracket Assy |
| 12-1. | YR21C01426P1 | [1] | BRACKET | KOB |
| 12-2. | YR21C01168DC | [1] | WEATHERSTRIP | KOB |
| 13. | YT21C01809P1 | [1] | SUPPORT | KOB |
| 14. | YT21C01812P1 | [1] | PLATE | KOBPlate |
