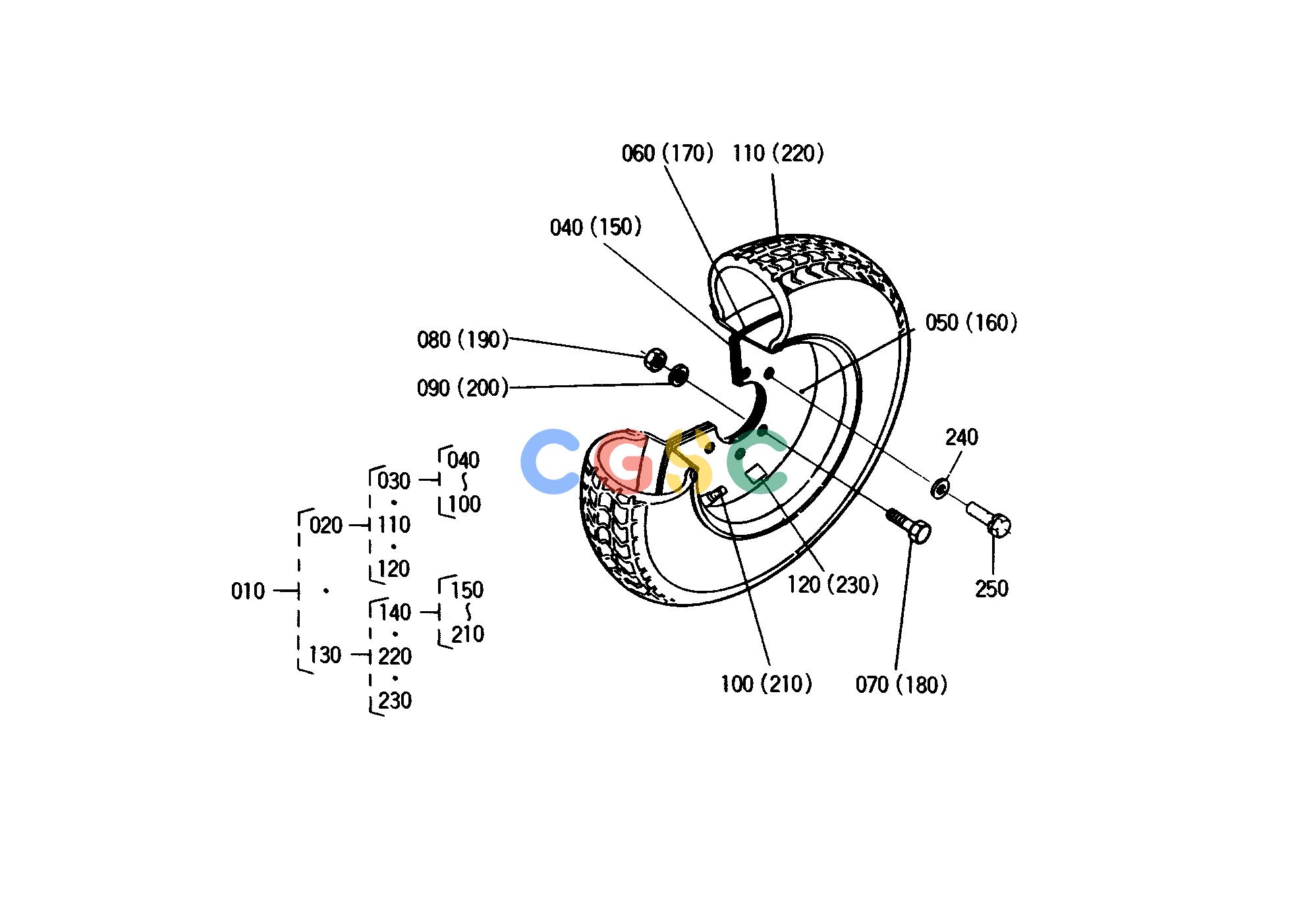

久保田零件查询T04703 FRONT WHEEL (18 X 9.50-8) FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
196 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
9601840510
|
[1] |
ASSY REAR WHEEL
|
40.9200(lbs); 18.600
|
| 020. |
9601845010
|
[1] |
ASSY REAR WHEEL LH
|
0.0000(lbs); 0.000
|
| 030. |
9601845110
|
[1] |
WHEEL
|
7.4800(lbs); 3.400
|
| 040. |
9601845140
|
[1] |
RIM
|
2.6840(lbs); 1.220
|
| 050. |
9601845150
|
[1] |
RIM
|
4.1800(lbs); 1.900
|
| 060. |
9601845160
|
[1] |
GASKET
|
0.0440(lbs); 0.020
|
| 070. |
0115050820
|
[6] |
BOLT
|
0.0242(lbs); 0.011
|
| 080. |
0211450080
|
[6] |
NUT
|
0.0110(lbs); 0.005
|
| 090. |
0451250080
|
[6] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 100. |
3415911850
|
[1] |
VALVE TIRE
|
0.0286(lbs); 0.013
|
| 110. |
9601845130
|
[1] |
TIRE
|
13.6400(lbs); 6.200
|
| 120. |
9601845170
|
[2] |
LABEL TIRE LH
|
0.0000(lbs); 0.000
|
| 130. |
9601845100
|
[1] |
ASSY REAR WHEEL RH
|
20.9000(lbs); 9.500
|
| 140. |
9601845110
|
[1] |
WHEEL
|
7.4800(lbs); 3.400
|
| 150. |
9601845140
|
[1] |
RIM
|
2.6840(lbs); 1.220
|
| 160. |
9601845150
|
[1] |
RIM
|
4.1800(lbs); 1.900
|
| 170. |
9601845160
|
[1] |
GASKET
|
0.0440(lbs); 0.020
|
| 180. |
0115050820
|
[6] |
BOLT
|
0.0242(lbs); 0.011
|
| 190. |
0211450080
|
[6] |
NUT
|
0.0110(lbs); 0.005
|
| 200. |
0451250080
|
[6] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 210. |
3415911850
|
[1] |
VALVE TIRE
|
0.0286(lbs); 0.013
|
| 220. |
9601845130
|
[1] |
TIRE
|
13.6400(lbs); 6.200
|
| 230. |
9601845180
|
[2] |
LABEL TIRE RH
|
0.0000(lbs); 0.000
|
| 240. |
0401350120
|
[8] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 250. |
0112351225
|
[8] |
BOLT
|
0.0880(lbs); 0.040
|
