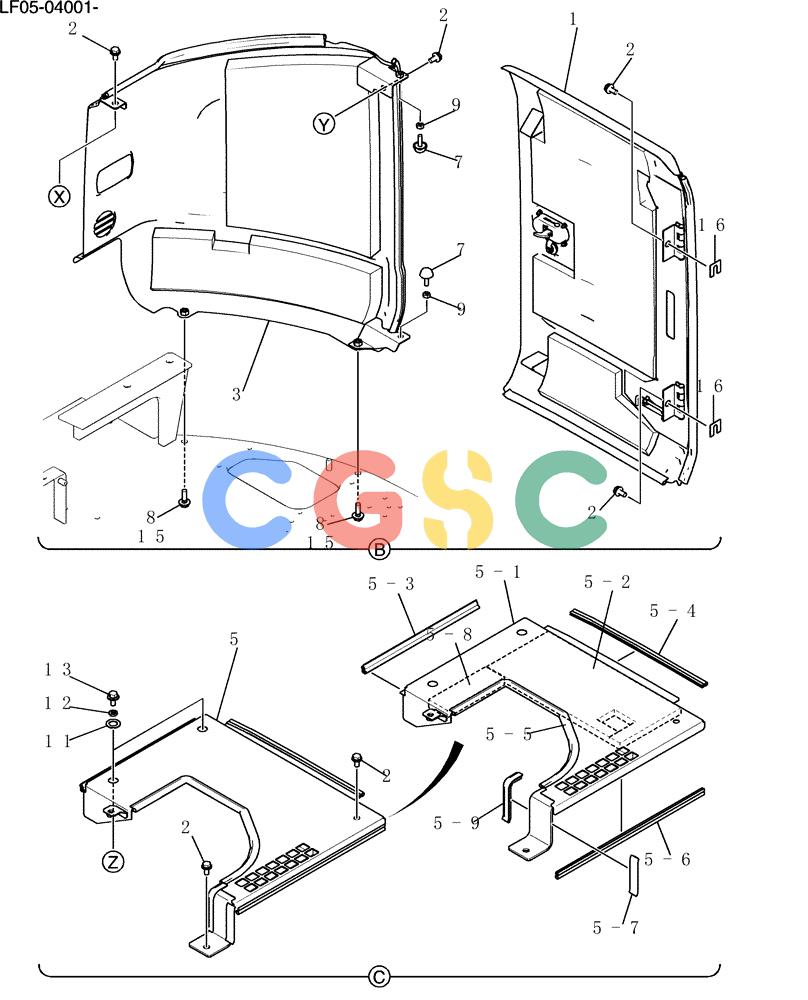

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (243-17[2]) - GUARD INSTAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
519 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF21C00009F1 | [1] | Guard Instal | |
| 1. | YT21C01663F1 | [1] | PANEL | KOBAssy Superseded by part number: YT21C02048F1 |
| 1-1. | YT21C01666P1 | [1] | PANEL | KOB |
| 1-1F. | YY21C02345P1 | [2] | HINGE | KOB |
| 1-2. | PM21C01268F1 | [1] | LOCK | KOBAssy |
| 1-2A. | YR22C01025P2 | [1] | LOCK | KOB |
| 1-2B. | PM21C01269P1 | [1] | PLATE | KOB |
| 1-3. | YF21C01796P1 | [1] | LOCK | KOB |
| 1-4. | PH22C01023P1 | [4] | BOLT | KOB |
| 1-5. | ZW16H05000 | [4] | WASHER | KOB |
| 1-6. | ZW26X05000 | [4] | LOCK WASHER | KOBLock |
| 1-7. | ZN18C05004 | [4] | NUT | KOB |
| 1-8. | YT21C01697P1 | [1] | FOAM INSULATION | KOB Superseded by part number: YT21C02049P1 |
| 1-9. | YT21C01164DK | [1] | WEATHERSTRIP | KOB |
| 1-10. | 2427P1836D27 | [1] | STRIP | KOBWeather |
| 1-11. | YF21C01490P1 | [1] | STAY | KOB |
| 1-12. | YR21C01123P1 | [1] | COLLAR | KOBClip |
| 1-13. | YT21C01879P1 | [1] | FOAM INSULATION | KOB |
| 2. | ZM73C12025 | [11] | BOLT,M12x25mm - Course Thread | KOBSems |
| 3. | LF21C01152F1 | [1] | PANEL | KOBAssy |
| 3-1. | LF21C01153P1 | [1] | PANEL | KOB |
| 3-2. | YN21C01528DC | [1] | WEATHERSTRIP | KOB |
| 3-3. | PH21C01136D5 | [1] | WEATHERSTRIP | KOB |
| 3-4. | YT21C01929P1 | [1] | INSULATION | KOBInsulation |
| 3-5. | YT21C01930P1 | [1] | INSULATION | KOBInsulation |
| 4. | YT21C01849F1 | [1] | COVER ASSY | KOBPanel Assy |
| 4-1. | YT21C01910P1 | [1] | PANEL | KOB |
| 4-2. | YJ21C01080DB | [1] | WEATHERSTRIP | KOB |
| 4-3. | YT21C01885P1 | [1] | INSULATION | KOBInsulation |
| 5-1. | LF21C01159P1 | [1] | COVER | KOBCover |
| 5-2. | YT21C01891P1 | [1] | INSULATION | KOBInsulation |
| 5-3. | PM21C01136D1 | [1] | WEATHERSEAL STRIP | KOBStrip, Weather |
| 5-4. | YR21C01168D1 | [1] | WEATHERSTRIP | KOB |
| 5-5. | PM21C01152DC | [1] | WEATHERSTRIP | KOB |
| 5-6. | YT21C01159D7 | [1] | WEATHERSTRIP | KOB |
| 5-7. | LS21C01093D1 | [1] | TRIM | KOB |
| 5-8. | LF21C01133P1 | [1] | INSULATION | KOBInsulation |
| 5-9. | LS21C01093DV | [1] | GASKET | KOBTrim |
| 6. | YT21C01875F1 | [1] | STRIKER | KOBStriker Assy |
| 6-1. | YT21C01872P1 | [1] | BRACKET | KOBBracket Superseded by part number: YT21C01872P2 |
| 6-2. | YF21C01705P1 | [1] | PIN | KOB |
| 6-3. | ZR36X00700 | [1] | RING | KOBRetaining |
| 7. | YN21C03212P1 | [2] | STOP | KOBStopper |
| 8. | ZM73C12040 | [2] | BOLT,M12x40mm - Course Thread | KOBSems |
| 9. | ZN18F10008 | [2] | NUT | KOB |
| 10. | YF21C01782D1 | [1] | SHIM | KOB |
| 11. | YN21C01395P1 | [2] | WASHER | KOB |
| 12. | YN21C01396P1 | [2] | WASHER | KOB |
| 13. | ZM32C12030 | [2] | BOLT | KOBSems |
| 14. | YT21C01943P1 | [1] | GROMMET | KOB |
| 15. | 2418T10357 | [2] | WASHER | KOB Superseded by part number: 2418T12345 |
| 16. | YN21C01757D2 | [2] | SHIM | KOB, Start Serial: LF05-04286 |
