纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (246-18[2]) - GUARD INSTAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
947 次

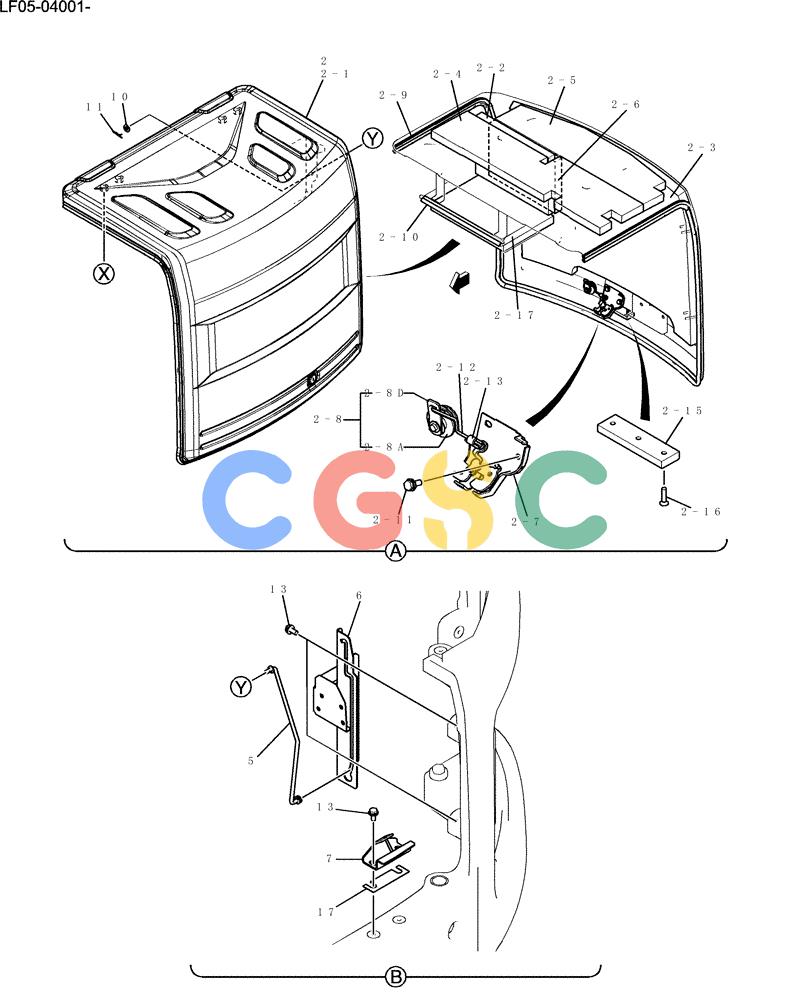

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT21C00037F1 | [1] | Guard Instal | |
| 1. | YT22C00017F1 | [1] | COVER ASSY | KOBBonnet |
| 1-1. | YT22C01239P1 | [1] | HOOD | KOBBonnet |
| 1-2. | YT22C01194P1 | [1] | INSULATION | KOBInsulation |
| 1-3. | YT22C01218P1 | [1] | INSULATION | KOBInsulation |
| 1-4. | YT22C01237P1 | [1] | INSULATION | KOBInsulation |
| 1-5. | YT22C01196P1 | [3] | INSULATION | KOBInsulation |
| 1-6. | LQ13E01166P1 | [1] | GROMMET | KOBGrommet |
| 1-7. | YZ21C01044D1 | [1] | WEATHERSTRIP | KOB |
| 1-8. | YN21C01136DE | [1] | WEATHERSTRIP | KOB |
| 1-9. | YT22C01199P1 | [1] | INSULATION | KOBInsulation |
| 1-10. | YT22C01198P1 | [1] | INSULATION | KOBInsulation |
| 1-11. | PV02B01073D1 | [2] | CAP | KOB |
| 2. | YT22C00013F1 | [1] | COVER ASSY | KOBBonnet Assy Superseded by part number: YT22C00019F1 |
| 2-1. | YT22C01180P1 | [1] | COVER | KOBBonnet |
| 2-2. | YT22C01205P1 | [1] | INSULATION | KOB |
| 2-3. | YT22C01175P1 | [1] | INSULATION | KOB |
| 2-4. | YT22C01174P1 | [1] | INSULATION | KOB Superseded by part number: YT22C01246P1 |
| 2-5. | YT22C01173P1 | [1] | INSULATION | KOB Superseded by part number: YT22C01245P1 |
| 2-6. | YT22C01204P1 | [1] | INSULATION | KOB |
| 2-7. | YT21C01034P2 | [1] | CATCH | KOB |
| 2-8. | YT21C01090F3 | [1] | LOCK | KOBAssy |
| 2-8A. | YR22C01025P2 | [1] | LOCK | KOB |
| 2-8D. | YT21C01801P1 | [1] | PLATE | KOBPlate |
| 2-9. | PM02C01035DA | [1] | WEATHERSTRIP | KOB |
| 2-10. | 2427Z2106D3 | [1] | WEATHERSTRIP | KOB |
| 2-11. | ZM73C06016 | [2] | BOLT,M6x16mm - Course Thread | KOBSems |
| 2-12. | YT21C01907P1 | [1] | ROD | KOB |
| 2-13. | YT21C01053P1 | [1] | CLIP | KOB |
| 2-15. | YT22C01230P1 | [1] | RUBBER SEAL | KOB |
| 2-16. | ZS41C05020 | [3] | SCREW,M5 x 20mm | KOBMachine |
| 2-17. | YT22C01216P1 | [1] | INSULATION | KOB |
| 3. | YT22C01190F1 | [1] | COVER ASSY | KOB |
| 3-1. | YT22C01236P2 | [1] | HOOD | KOBBonnet |
| 3-2. | YT22C01144P1 | [2] | INSULATION | KOBInsulation |
| 3-4. | YT22C01163P1 | [1] | INSULATION | KOBInsulation |
| 3-5. | PM21C01091D4 | [1] | WEATHERSTRIP | KOB |
| 4. | YT22C01191P1 | [1] | COVER | KOB Superseded by part number: YT22C01191P2 |
| 5. | YT21C01795P1 | [1] | STAY | KOB |
| 6. | YT21C01796P1 | [1] | BRACKET | KOB |
| 7. | YT21C01952P1 | [1] | STRIKER | KOBSTRIKER Superseded by part number: LG21C01443F1 |
| 8. | YT22C01178P1 | [1] | SPRING | KOB |
| 9. | YT22C01179P1 | [1] | SPRING | KOB |
| 10. | ZW16P10000 | [1] | WASHER | KOB |
| 11. | 2419R9D3 | [1] | PIN | KOBSnap |
| 12. | ZM73C12020 | [4] | BOLT,M12x20mm - Course Thread | KOBSems |
| 13. | ZM73C12025 | [10] | BOLT,M12x25mm - Course Thread | KOBSems |
| 15. | ZM73C08020 | [2] | BOLT,M8x20mm - Course Thread | KOBSems |
| 16. | YT22C01185P1 | [1] | PLATE | KOB |
| 17. | YF21C01782D1 | [2] | SHIM | KOB |
