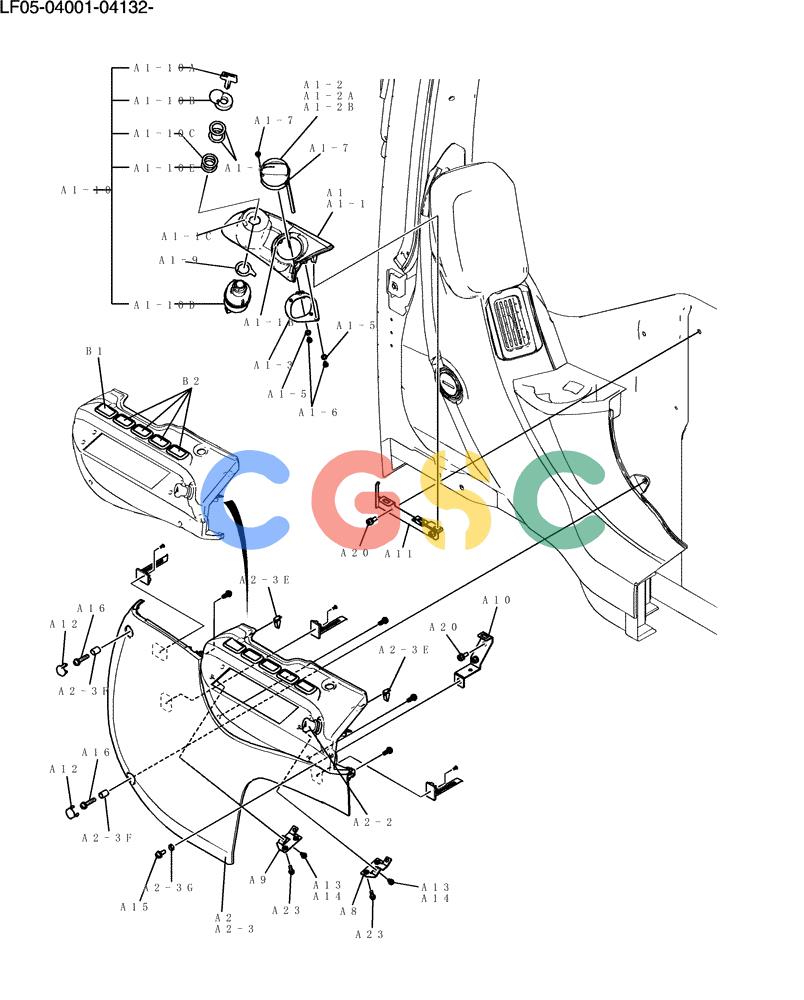

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (260-17[2]) - PANEL ASSY, INSTRUMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
970 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT17M00024F1 | [1] | Panel Assy, Instrument | |
| . . | YT17M00021F1 | [1] | Panel Assy, Instrument | |
| A1. | YN17M01344F2 | [1] | COVER ASSY | KOB |
| A1-1. | YN17M01299F1 | [1] | COVER ASSY | KOB |
| A1-1B. | YN17M01300P1 | [1] | DATA PLAQUE | SMLabel |
| A1-1C. | YN17M01312P1 | [1] | DATA PLAQUE | SMLabel |
| A1-2. | YN52S00032P1 | [1] | POTENTIOMETER | KOB Superseded by part number: YN52S00032P2 |
| A1-2A. | YN52S00032S001 | [1] | POTENTIOMETER | KOB Superseded by part number: YN52S00032P2 |
| A1-2B. | YN52S00032S002 | [1] | KNOB | KOB Superseded by part number: YN52S00032S003 |
| A1-3. | YN17M01273P1 | [1] | BRACKET | SM |
| A1-5. | ZW16P05000 | [2] | WASHER | KOB |
| A1-6. | YN17M01262P1 | [2] | SCREW,Phillips Drive, Pan HD, M5 x 10mm | SMTapping |
| A1-7. | ZM41C04012 | [2] | BOLT | KOBSems |
| A1-8. | YN17M01345P1 | [2] | WASHER | SM |
| A1-9. | YN01E01018P1 | [1] | TERMINAL | SM |
| A1-10. | YN50S00026F1 | [1] | IGNITION SWITCH | KOBAssy, Key |
| A1-10A. | YN50S01010P1 | [1] | SET OF 2 KEYS,Kobelco Branded | KOB |
| A1-10B. | YN50S00002S002 | [1] | NUT | KOBAssy |
| A1-10C. | YN50S00002S003 | [2] | WASHER | KOB |
| A1-10D. | YN50S00002S004 | [1] | TOGGLE SWITCH | KOB |
| A1-10E. | YN50S00002S005 | [1] | WASHER | KOB |
| A2. | YB17M01015F2 | [1] | COVER ASSY | KOB |
| A2-2. | YN81S00003P1 | [1] | CIGARETTE LIGHTER | SM |
| A2-3. | YB17M01023F2 | [1] | COVER ASSY | KOB |
| A2-3E. | YN17M01293P1 | [2] | CLIP | KOB |
| A2-3F. | YN17M01303P1 | [2] | COLLAR | KOB |
| A2-3G. | YN17M01296P1 | [1] | HOSE CLIP | SM |
| A3. | YN17M01317F1 | [1] | GUARD | SMCover Assy |
| A3-1. | YN17M01286F1 | [1] | COVER ASSY | KOB |
| A3-1A. | YN17M01308F1 | [1] | COVER ASSY | KOB |
| A3-1B. | YN17M01306F1 | [1] | COVER ASSY | KOB Superseded by part number: YN17M01422F1 |
| A3-1C. | YN17M01271P1 | [1] | BRACKET | SM |
| A3-1D. | YN20M01622F1 | [1] | DUCT | SMAssy |
| A3-1E. | YN20M01625F1 | [1] | DUCT | SMAssy |
| A3-1F. | YN17M01255P1 | [3] | BOLT | SMSems-bolt Superseded by part number: ZM66C06016 |
| A3-1G. | YN17M01264P1 | [7] | SCREW | SMTapping |
| A3-1H. | YN17M01281P1 | [1] | NUT | SM |
| A3-1J. | YN17M01266P1 | [8] | WASHER | SM |
| A3-1K. | YN17M01309P1 | [3] | RUBBER BAND | KOB Superseded by part number: YN17M01308F1 |
| A3-2. | YT58S00006P1 | [1] | HOURMETER | KOBHour |
| A3-3. | YN20M01220P1 | [1] | VENT | KOBGrille |
| A4. | YN17M01310F1 | [1] | GUARD | SMCover Assy |
| A5. | YN17M01197P2 | [1] | BRACKET | SM |
| A6. | YN17M01319P1 | [1] | BRACKET | SM |
| A7. | YN59S00021F3 | [1] | CONTROL MONITOR | SMGauge Assy, Cluster (See Fig No. 265-18-1) |
| A8. | YN17M01269P1 | [1] | BRACKET | SM |
| A9. | YN17M01270P1 | [1] | BRACKET | SM |
| A10. | YN17M01275P1 | [1] | BRACKET | SM |
| A11. | YB17M01011P1 | [1] | BRACKET | KOB |
| A12. | YN17M01267P1 | [2] | CAP | KOB |
| A15. | YN17M01283P1 | [1] | BOLT | SMSems-bolt |
| A16. | YN17M01284P2 | [2] | BOLT | SMSems-bolt |
| A17. | YN17M01320P1 | [5] | SCREW,Phillips Drive, Truss HD, M6 x 1 x 15mm | SMScrew |
| A18. | ZM73C08020 | [3] | BOLT,M8x20mm - Course Thread | KOBSems |
| A19. | ZM66C06045 | [1] | BOLT | KOBSems |
| A20. | ZM66C06016 | [15] | BOLT | KOBSems |
| A21. | ZM61C05012 | [2] | BOLT | KOBSems |
| A22. | ZM61C05016 | [2] | BOLT | KOBSems |
| A23. | ZM41C05016 | [4] | BOLT | KOBSems |
| A24. | YT20M01175P1 | [1] | DUCT | KOB |
| A25. | YT20M01171F1 | [1] | DUCT | KOBAssy |
| A25-1. | YT20M01172P1 | [1] | DUCT | KOB |
| A25-2. | YT20M01173P1 | [1] | INSULATION | KOB |
| A25-3. | YN20M01637P1 | [1] | FOAM INSULATION | KOB |
| A26. | YT20M01188F1 | [1] | DUCT | KOBAssy |
| A26-1. | YT20M01189P1 | [1] | DUCT | KOB |
| A26-2. | YT20M01190P1 | [1] | DUCT | KOB |
| A26-3. | YT20M01180P1 | [2] | RUBBER SEAL | KOB |
| A26-4. | YT20M01181P1 | [2] | RUBBER SEAL | KOB |
| A26-5. | YT20M01177P1 | [1] | RUBBER SEAL | KOB |
| A27. | YT20M01176P1 | [1] | RUBBER SEAL | KOB |
| A28. | ZS32T50012 | [2] | SCREW | KOBCross Tapping |
| A29. | YT17M01077F1 | [1] | Cover Assy | |
| A29-1. | YT17M01051F1 | [1] | COVER ASSY | KOB Superseded by part number: YT17M01051F3 |
| A29-2. | YN54S00050P1 | [2] | SPEAKER | KOB Superseded by part number: YN54S00050P2 |
| A29-3. | YN20M01568P1 | [2] | GRILLE | SM |
| A29-6. | YN81S01002P1 | [1] | SEAT/SLOT,12V | SMSocket |
| A29-7. | YT17M01062F1 | [1] | COVER ASSY | KOB |
| A31. | YT17M01055F1 | [1] | COVER ASSY | KOBCover Assy |
| A31-1. | YT17M01056P1 | [1] | COVER | KOB |
| A31-3. | YT17M01069P1 | [1] | BRACKET | KOB |
| A32. | YT20M01193F1 | [1] | DUCT | KOBAssy |
| A32-1. | YT20M01194P1 | [1] | DUCT | KOB |
| A32-2. | YT20M01195F1 | [1] | DUCT | KOBAssy |
| A33. | YN01T01049F1 | [1] | HAMMER | SMAssy |
| A36. | YT17M01070P1 | [1] | Bracket | |
| A37. | YT17M01074P1 | [1] | Bracket | |
| A38. | ZM66C08016 | [3] | BOLT | KOBSems |
| A39. | YT17M01061P1 | [2] | SCREW | KOBMachine |
| A40. | ZS32T45010 | [1] | SCREW | KOBCross Tapping |
| . . | YN50E00014F1 | [1] | Switch Instal | |
| B1. | YN50S00040D1 | [1] | LIGHT SWITCH | SM(work Light) |
| B2. | YN17M01282P1 | [4] | CAP | KOB |
